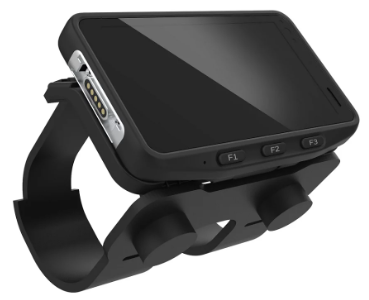

Honeywell CW45
Wearable terminal


The Honeywell CW45 wearable computer is a rugged performance tool that improves productivity by ergonomically presenting the workflow information at the point of activity and integrating the tools needed to perform the job at hand.

Ultra-reliable performance, data connectivity, and communications for frontline mobile workers in retail, logistics and manufacturing is always where it is needed, when it is needed. Designed from the ground up for comfort, ease of use, and reliability, the CW45 offers a low profile large display with enterprise-level ruggedness and comfortable easy-to-wear accessories. The CW45 is designed for businesses that invest in sophisticated solutions and need a durable, stable and secure platform on which to implement them. Built on the newest generation of Honeywell's Mobility Edge platform, the CW45 delivers the lifecycle, security, and durability to optimize solution return on investment in the long term.

Features

  • Highly configurable, offering terminal emulation, browser or custom client applications
  • Honeywell's Mobility Edge platform
  • Large Multi-Touch HD Display
  • Multiple wearable scanner options
  • Advanced ergonomic design for comfort
  • Suitable for Honeywell's Operational Intelligence Asset Optimization and Smart Talk
  • 12 Month Warranty with extension options

Specifications

Physical Characteristics
Dimensions
133mm wide x 86mm high x 14mm deep
Weight
292g, with Standard Battery Pack
Shock Protection
1.8m drop to concrete across operating temperature range
Exceeds 1000 0.5 m tumbles at room temperature (IEC 60068-2-32)
Environmental Characteristics
Operating Temperature
-20º to 50ºC
Storage Temperature
-30º to 70ºC
Humidity
5 to 95% (Non-Condensing)
Sealing
IP65 and IP67 Options
Electrostatic Discharge
±8kV contact, ±15V indirect
Thermal Shock
-30º to 70ºC
Hardware
Processor
Qualcomm QCS4290/QCM4290 octa-core, 2.0GHz
Display
34.7" (120mm) Multi-Touch Panel,
1280 x 720 pixels
Keypad
On-Screen Keypad with 3 Programmable Function Keys
Operating System
Android 12, with guaranteed support to Android 15
Memory
6GB DDR4, 64GB UFS Flash
Barcode Scanning Options
8675i Wearable BT Reader in Standard Range or Flex Range
Camera
13-megapixel side-facing camera;
8-megapixel front-facing camera
Sensors
Ambient light sensor, accelerometer, gyroscope, eCompass, high gravity sensor
Audio
PTT, VoIP ready, Speaker, HAC-compliant Microphone
I/O Ports
Durable, flat I/O connector, USB OTG supported
Power
Battery Type
High Capacity 3.6V LiIon
Battery Capacity
Standard: 3500mAh
Extended: 7000mAh
Communications
Radio
IEEE 802.11 a/b/g/n/ac/ax and 2*2 MU-MIMO
Antenna
Internal
Bluetooth
V5.1 + BLE
Push to Talk
PTT Supported
NFC
Integrated NFC reader, compliant with ISO/IEC 14443A, ISO/IEC 14443B, ISO/IEC 15693 (ICode), MIFARE 1K/4K, MIFARE DESFire, Sony FeliCa, ISO/IEC 18092 (Type F)
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST		 T
%
[A] CW45 Rugged Wearable Computer
CW45-X0N-AND10SG HONEYWELL WEARABLE CW45 6/64 4.7P STD/BAT AD/GMS $4,477.00 C2
CW45-X0N-AND10XG HONEYWELL WEARABLE CW45 6/64 4.7P EXT/BAT AD/GMS $4,554.00 C2
[B] Ethernet Homebase Charger
CW45-EB-UVN-0 HONEYWELL UNIV DOCK CHARGE ETH KIT 1-BAY CW45 $528.00 C2
2-5199-020-0 CA199-2 IEC Power C13 to AU 3 pin Plug $8.80 A
[C] Four Bay Battery Charger
CW45-QBC-0 HONEYWELL MUTIDOCK KIT BATTERY 4-BAY CW45 $649.00 C2
2-5199-020-0 CA199-2 IEC Power C13 to AU 3 pin Plug $8.80 A
[D] Four Bay Battery Chargers
CW45-CB-UVN-0 HONEYWELL MUTIDOCK KIT CHARGE 4-BAY CW45 $814.00 C2
CW45-5CB-UVN-0 HONEYWELL MUTIDOCK KIT CHARGE+BATT 4-BAY CW45 $1,232.00 C2
2-5199-020-0 CA199-2 IEC Power C13 to AU 3 pin Plug $8.80 A
[E] Accessories
[F] Replacement Batteries
CW45-BAT-S HONEYWELL BATTERY STANDARD CW45 $165.00 C2
CW45-BAT-EX HONEYWELL BATTERY EXTENDED CW45 $198.00 C2
[G] Other Accessories
CW45-CPAD HONEYWELL COMFORT PAD 5/PK FOR CW45 $209.00 C2
CW45-MOUNT HONEYWELL ARM MOUNT INC COMFORT PAD FOR CW45 $66.00 C2
CW45-STRAP-S HONEYWELL WEARABLE ARM STRAP SMALL FOR CW45 $165.00 C2
CW45-8675-CBL HONEYWELL CABLE CONNECTOR CW45 TO 8675 $220.00 C2
CW45-UPC-BATTHEB
CW45-UCP-N
CW45-UPC-QBC
[H] Maintenance Services
SVCCW45-SG3N HONEYWELL EDGE SERVICE GOLD CW45 5D 3Y $583.00 V
SVCCW45-SG5N HONEYWELL EDGE SERVICE GOLD CW45 5D 5Y $1,023.00 V
SVCCW45-SG1R
Honeywell 8675i BT Barcode Scanner
