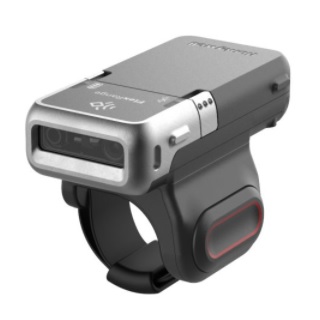

Honeywell - 8675i
Wearable Bluetooth 2D Bar Code Reader
 |
The Honeywell 8675i rugged compact wearable scanner provides ergonomic, high performance scanning. Designed to deliver reliable results in demanding environments, this productivity tool is ready to perform in real-world applications. The 8675i offers always-at-hand wearable scanning to improve workflow productivity. Premium scanning performance ensures quick work of even damaged or low quality barcodes. FlexRange technology provides expanded Flexible Range scanning distances, enabling improved efficiency in workflows that could previously only be solved with bulkier and heavier handheld devices. Smooth, fast reading from near to far ensures fast, intuitive reading of barcodes. A standard range only option offers lower acquisition cost for normal reading. In all aspects of design, the 8675i has been optimized for ergonomics. Height off of the finger has been minimized to prevent interference in the work environment. All user-contact surfaces have been tailored for comfort, easy adjustment, and simple use. The trigger ring is simple to swap from right to left hand configuration, and the finger strap buckle is both easy to operate and low-profile to prevent interference between fingers. The 8675i can be converted from ring to glove instantly and with no tools; the strap glove is simple, minimal, and easily adjustable for all users. Made of non-absorbent materials, 8675i wearable accessories are simple to clean with approved disinfectant properties. The 8675i has been designed to be multi-shift ready, with an easy-to-replace battery to keep the scanner up and running that also enables the battery to be simply replaced as it ages through normal use, extending the service life of the 8675i.
|
|---|
Specifications
| Mechanical | |
|---|---|
| Dimensions | 62mm L x 30mm W x 15.2mm H |
| Weight (Including Trigger and Battery) | 8675i-FR: 36g 8675i-SR: 66g |
| Environmental | |
| Operating Temp. | 8675i-FR: -20°C to 50°C 8675i-SR: -10°C to 50°C |
| Storage Temp. | -20 to 60° C |
| Charging Temp. | 5 to 35° C |
| Relative Humidity | 0 to 95% (non-condensing) |
| Drop | 1.8m(6 ft) Mil-Std-810 Drop Test at operating temperature 50x 1.5m (5 ft) to concrete at operating temperature 2,000 1/2 m (1.6 ft) tumbles per IEC 60068-2-32 specification |
| Environmental Sealing | IP65 |
| Electrical | |
| Battery | 3.85V Li-Ion,570mAh |
| Charging Time | 3.5 hours |
| Optical | |
| Scan Pattern | Omni-directional area imager |
| Pitch | ±60° |
| Skew | ±60° |
| Print Contrast Ratio | 20% minimim reflective difference |
| Read Distance | 8675i-FR: 60mm to 10m 8675i-SR: 37mm to 500mm (Note: Dependant on barcode) |
| Symbologies Decoded | Reads all common 1D, GS1 DataBar and 2D Symbologies. |
| Communications | |
| Radio | Bluetooth V5.1 Class 1 (100m line of sight) NFC for "Tap to Pair" |
| Part Number | Model Number | Description | RRP Inc GST |
T % |
|---|---|---|---|---|
| [A] Honeywell 8675i Bluetooth Barcode Reader | ||||
| 8675I400FR-2-R | HONEYWELL SCANNER RING 8675I BT 2D-FLEX BATT+TRIG | $1,595.00 | C2 | |
| 8675I400SR-2-R | HONEYWELL SCANNER RING 8675I BT 2D-SR BATT+TRIGGER | $1,375.00 | C2 | |
| [B] Accessories | ||||
| 8675I505-FNGRSTRP | HONEYWELL FINGER STRAP FOR TRIG RING 8675I 10PK | $363.00 | C2 | |
| 8675I505-TRGR | HONEYWELL TRIG RING + STRAP 8675I 10PK | $902.00 | C2 | |
| 8675I505-LHGM | HONEYWELL 8675 LEFT GLOVE MEDIUM 10/PK | $880.00 | C2 | |
| 8675I505-LHGS | HONEYWELL 8675 LEFT GLOVE SMALL 10/PK | $880.00 | C2 | |
| 8675I505-RHGM | HONEYWELL 8675 RIGHT GLOVE MEDIUM 10/PK | $880.00 | C2 | |
| 8675I505-RHGS | HONEYWELL 8675 RIGHT GLOVE SMALL 10/PK | $880.00 | C2 | |
| [C] Spare Battery | ||||
| BAT-SCN10 | HONEYWELL BATTERY 8675I | $132.00 | C2 | |
| [D] Chargers | ||||
| MB1-SCN10 | HONEYWELL DEVICE BATTERY CHARGER 1-BAY 8675I | $176.00 | C2 | |
| MB4-SCN10 | HONEYWELL MULTIDOCK CHARGE 4-BAY 8675I | $704.00 | C2 | |
| MB12-SCN10 | HONEYWELL MULTIDOCK KIT 12-BAY 8675I | $1,804.00 | C2 | |
| MB8-BAT-SCN10 | HONEYWELL MULTIDOCK BATTERY CHARGER 8-BAY 8675I | $803.00 | C2 | |
| MB12-BAT-SCN10 | ||||
| MB24-BAT-SCN10 | HONEYWELL MULTIDOCK KIT BATT CHARGE 24-BAY 8675I | $2,387.00 | C2 | |
| 2-5199-020-5 | ||||
| [E] Spare Power Supplies | ||||
| 50121666-001 | HONEYWELL PSU 12V 3A CT50/CT60HB/EB/QBC/CN80 | $44.00 | C2 | |
| 50143701-001 | HONEYWELL PSU 12V/8.5A 8675/8680/8690 DOCK | $264.00 | C2 | |
| [F] Service Contract | ||||
| SVC8675I-SG3N | HONEYWELL EDGE SERVICE GOLD 8671I 5D 3Y | $341.00 | V | |
| SVC8675I-SG5N | HONEYWELL EDGE SERVICE GOLD 8675 5D 5Y | $682.00 | V | |
| Add-ons for Extended Maintenance Support | ||||
| SVCACC-SCN3 | HONEYWELL EDGE SERVICE ADDON SCANNER ACCESSORY 3Y | $33.00 | V | |
| SVCACC-SCN5 | HONEYWELL EDGE SERVICE ADDON SCANNER ACCESSORY 5Y | $44.00 | V | |
| SVCBATTERY-SCN3 | HONEYWELL EDGE SERVICE ADDON SCANNER BATTERY 3Y | $264.00 | V | |
| SVCBATTERY-SCN5 | HONEYWELL EDGE SERVICE ADDON SCANNER BATTERY 5Y | $528.00 | V | |
| SVCSPAREMGMT-SCN3 | HONEYWELL EDGE SERVICE ADDON SCANNER ADV EXCH 3Y | $132.00 | V | |
| SVCSPAREMGMT-SCN5 | HONEYWELL EDGE SERVICE ADDON SCANNER ADV EXCH 3Y | $231.00 | V | |
