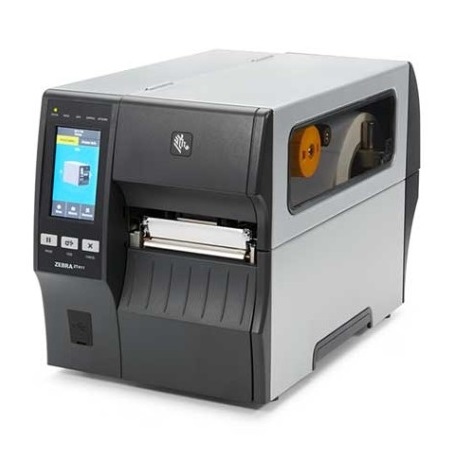

Zebra - ZT400 Series
RFID Bar Code Label Printer


The ZT400 Series builds on the field-proven reliability of the Z Series™ with advancements in print speed, print quality and connectivity options. Designed for ease of use, the ZT400 Series printers offer an intuitive icon based LCD graphical user interface and easy supplies loading. And, they include standard USB, Serial, Ethernet and Bluetooth® capabilities. With Optional Expanded RFID capacities the ZT400 can deliver greater tracking abilities, deeper visibility and enterprise insights.

The ZT400 Series is offered in both 4” and 6” models and comes standard with an extensive set of advanced features that ensure your printer investment will always meet your needs, now and in the future. Constructed using an all-metal frame and bi-fold door, this printer is designed to fit well in space constrained environments.

Built to deliver outstanding print quality under the most challenging industrial conditions, ZT Series RFID printers virtually eliminate operational downtime due to printer failure. Their durable, all-metal designs hold up against extreme temperatures, dust, debris, moisture and worse. And high-quality print mechanisms and internal components deliver superior print quality and speed across the widest range of applications.

Featuring Zebra’s Link-OS® environment — an innovative operating system combining a powerful Multiplatform Software Development Kit (SDK) and software applications—ZT400 Series printers are easy to integrate, manage and maintain from any location around the globe.

Features:

  • DT & TT printing
  • 8" diameter label roll on a 3"core
  • Tear-off or label peel; tickets or tags in rolls or fan-folded
  • Rugged and Reliable
  • 203, 300 or 600dpi print resolution options
  • Optional RFID reader/writer
  • User Friendly - from loading labels to changing the print head operations are quick and easy
  • EPL, ZPL and ZPLII Language selectable
  • Optional Zebranet 802.11a/b/g/n Print Server
  • 12 month Warranty with Extension options

Specifications

Model
ZT400 4" Series
ZT400 6" Series
Physical Characteristics
Length
495mm
495mm
Height
324mm
324mm
Width
269mm
336.6mm
Weight
16.33kg
18.14kg
Environmental Characteristics
Operating Temperature
5°C to 40°C
Storage Temperature
-40°C to 60°C
Operating Humidity
20% to 85% non-condensing
Storage Humidity
5% to 85% non-condensing
Print Speed
Maximum
356mm/s (14 ips)
305mm/s (12 ips)
Media Specifications
Label Width
25.4mm to 114 mm
25.4mm to 171 mm
Minimum Label Length
Rewind:
Peel:
Tear-Off:
Cutter:

12.7 mm (0.5")
12.7 mm (0.5")
12.7 mm (0.5")
25.4 mm (1")
Maximum Label Length
(Non-continuous)
203dpi:
300dpi:
60dpi:

991 mm (39")
991 mm (39")
508 mm (20")

991 mm (39")
991 mm (39")
Label Type
Continuous, die-cut, notch, hole or black mark
Label Roll Diameter (maximum)
203 mm (8.0")
Label Core Diameter
76 mm (3.0")
Ribbon Width
51mm to 110 mm (2"- 4.33")
51mm to 174 mm (2"- 6.85")
Ribbon Type
Wound In or Out
Ribbon Roll Diameter (maximum)
81.3 mm (3.2"), 450m
Label Core Diameter
25.4 mm (1.0")
Print Specifications
Width (maximum)
104 mm (4.09")
168 mm (6.6")
Print Resolution
8 dots/mm (203 dpi, 12 dots/mm (300 dpi) or 16 dots/mm (600dpi)
8 dots/mm (203 dpi or 12 dots/mm (300 dpi)
Memory
Standard
512MB Flash
256MB RAM
Time
Clock
Internal RTC (Real Time Clock) Option
Barcodes
1 Dimensional
All major Bar Code Symbologies
2 Dimensional
Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec
Fonts
16 resident fonts
Interface's
Standard
RS232, USB Client, USB Host, gigabit Ethernet, BT4.0
Optional
Centronics (Parallel), 802.11ac (WiFi),
UHF EPC Gen2 915MHz RFID Reader/Writer

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] RFID Printers
RFID Label Printer
ZT41142-T0P00C0Z ZT411-RFID ZEBRA MIDRANGE ZT411 4IN 203DPI T/T MULTI RFID $4,906.00 C2
ZT41143-T0P00C0Z ZEBRA MIDRANGE ZT411 4IN 300DPI T/T MULTI RFID $5,434.00 C2
RFID ON-Metal Label Printer
ZT41142-T5P00C0Z ZT411-RFID-SL-203 ZEBRA MIDRANGE ZT411 4IN 203DPI T/T ON-METAL RFID $5,566.00 C2
[B] Non RFID Label Printer
ZT411 Series
ZT41142-T0P0000Z ZEBRA MIDRANGE ZT411 4IN 203DPI T/T MULTI BT $2,024.00 C2
ZT41142-T1P0000Z ZEBRA MIDRANGE ZT411 4IN 203DPI T/T MULTI PEEL $2,420.00 C2
ZT41142-T2P0000Z ZEBRA MIDRANGE ZT411 4IN 203DPI T/T MULTI CUTTER $3,058.00 C2
ZT41142-T3P0000Z ZEBRA MIDRANGE ZT411 4IN 203DPI T/T MULTI PEEL $2,662.00 C2
ZT41142-T4P0000Z ZEBRA MIDRANGE ZT411 4IN 203DPI T/T MULTI PEEL/RW $2,816.00 C2
ZT41142-T0PC000Z ZEBRA MIDRANGE ZT411 4IN 203DPI T/T MULTI WIFI $2,816.00 C2
ZT41143-T0P0000Z ZEBRA MIDRANGE ZT411 4IN 300DPI T/T MULTI $2,695.00 C2
ZT41143-T1P0000Z
ZT41143-T2P0000Z ZEBRA MIDRANGE ZT411 4IN 300DPI T/T MULTI CUTTER $3,553.00 C2
ZT41143-T3P0000Z ZEBRA MIDRANGE ZT411 4IN 300DPI T/T MULTI PEEL $3,157.00 C2
ZT41143-T4P0000Z ZEBRA MIDRANGE ZT411 4IN 300DPI T/T MULTI PEEL/RW $3,300.00 C2
ZT41146-T0P0000Z ZEBRA MIDRANGE ZT411 4IN 600DPI T/T MULTI $4,191.00 C2
ZT41146-T4P0000Z ZEBRA MIDRANGE ZT411 4IN 600DPI T/T MULTI PEEL/RW $4,807.00 C2
ZT620 Series
ZT42162-T0P0000Z ZEBRA MIDRANGE ZT421 6IN 203DPI T/T MULTI BT $3,806.00 C2
ZT42162-T2P00C0Z
ZT42163-T0P0000Z ZEBRA MIDRANGE ZT421 6IN 300DPI T/T MULTI $4,400.00 C2
ZT42163-T2P0000Z ZEBRA MIDRANGE ZT421 6IN 300DPI T/T MULTI CUTTER $5,478.00 C2
ZT42163-T4P0000Z ZEBRA MIDRANGE ZT421 6IN 300DPI T/T MULTI PEEL/RW $5,115.00 C2
[C] Accessories
P1083320-037C ZEBRA UPGRADE KIT 802.11AC ZT411/ZT421/ZT510/ZT600 $718.30 C3
[D] Replacement Parts
P1058930-009 ZEBRA PRINTHEAD ZT410/ZT411 203DPI $1,047.20 C3
P1058930-010 ZEBRA PRINTHEAD ZT410/ZT411 300DPI $1,221.00 C3
P1058930-011
[E] After Sales Support
Standard Printers
Z1AE-ZT411-3C0 ZEBRA SERVICE ONECARE ESSENTIAL ZT411 3YR COMP $752.40 V
Z1AE-ZT411-5C0 ZEBRA SERVICE ONECARE ESSENTIAL ZT411 5YR COMP $1,243.00 V
RFID Printers
Z1AE-ZT4X-3C0 ZEBRA SERVICE ONECARE ESSENTIAL ZT4X 3YR COMP $870.10 V
Z1AE-ZT4X-5C0 ZEBRA SERVICE ONECARE ESSENTIAL ZT4X 5YR COMP $1,749.00 V
[F] Ribbons
Zebra Resin Ribbon
05095BK11045 R110x450R-5095BK ZEBRA RIBBON RESIN 110X450 T/TOP 5095 $143.00 A2
Compatible Ricoh Full Resin Ribbon for printing of Synthetics
9-9352-011-0 B110CR-104x250 104mm x 250m $52.80 A4
9-9352-021-9 B110C-80x300 80mm x 300m (full resin) $80.30 A4
Contact UMD for pricing on specific configurations sales@umd.com.au
An extensive range of off-the-shelf and custom labels are available.
Standard Stock Labels
