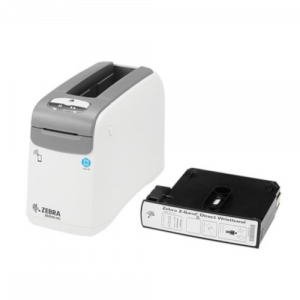

Zebra - ZD510-HC
Wristband Printer


The Zebra ZD510-HC Wristband printer specialises in healthcare: no printer knows more about patient identification. This printer is the world's only cartridge-based wristband printer; simply insert cartridge and print. The ZD510-HC is a reliable direct thermal printer that is barcoded durable, meaning that the barcode will never fade during the patients stay, and ensures scan-ability against water, soil, sanitiser and alcohol.

Easily migrate from the Zebra HC100 by using existing wristband cartridges and native ZPL (Zebra Programming Language). The ZD510-HC features disinfectant ready UV resistant housing and is designed to handle regular sanitising with harsh chemicals and UV light.

The wristband cartridges contain Zebra Z-Band wristbands, rigorously pre-tested to ensure quality image visibility and scanning performance. Zebra's entire line of white and colour wristbands are compatible with the ZD510-HC, available in both adhesive and clip closures. Just insert the cartridge for automatic calibration and optimal print quality.

Configure and manage the ZD510-HC using deployment utilities and remote management tools. Get a comprehensive view to ensure maximum uptime and improve printer security, plus guarantee an extended lifetime with Zebra OneCare maintenance.

Features

  • Ensures accurate identity: solutions for adult, paediatric and infant patients
  • High quality wristband and barcode printing
  • Easy to load cartridges
  • Flexible connectivity with USB, Ethernet, Bluetooth Low Energy and Wi-Fi options
  • Protect vital patient data: tracks and secures networked printers from intrusions
  • Powered by Link-OS, Zebras robust printer operating system
  • Supported by Zebras powerful Print DNA tools and software
  • Integrates with SOTI MobiControl Mobile Device Management
  • Two year standard warranty

Specifications

Physical Characteristics
Dimensions127 (w) x 242 (d) x 178 (h) mm
Print Engine Characteristics
Print methodDirect thermal
Print Resolution300dpi/12 dots per mm
Print LengthMaximum: 558mm
Minimum: 76mm
Print Width19mm, 25.4mm, 30.2mm
Print Speed51mm/sec
Memory256mb SDRAM, 512mb Flash
Environmental Characteristics
Operating Temperature4.4C to 40C
Storage Temperature-40C to 60C
Operating Humidity20% to 85% Non-Condensing
Storage Humidity5% to 85% Non-Condensing
Interfaces
Standard OptionEthernet, USB, USB Host, Bluetooth Low Energy, NFC
Upgrade Option802.11 ac Wi-Fi, Bluetooth 4.1
Media Characteristics
Wristband solutionsHealthcare, Hospitality
Wristband optionsZ-Band Fun, Z-Band Splash, Z-Band Ultrasoft, Z-Band Direct
Printing Characteristics
FontsStandard bitmapped Zebra fonts, User defined fonts, Smooth-scalable font
Optional: international font kits
BarcodesLinear: Codabar, Code 11, Code 128, Code 39, Code 93, EAN-8, EAN-13, EAN-14, GSI Databar (was RSS). Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, Standard 2-of-5, UPC-A, UPC-A and UPC-E with EAN 2 or 5 digit extensions, UPC-E
2-dimensional: Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code
GraphicsUser defined
Software
Printer LanguageStandard: ZPL, ZPL II, Unicode
Optional: ZBI 2.0
Available SoftwareZebraDesigner Essentials, Virtual Devices, ZBI Developer, Zebra Printer Setup Utilities, Zebra Print DNA


Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Zebra ZD510-HC Wristband Printer
ZD51013D0PE00FZ ZD510 ZEBRA ZD510-HC WRISTBAND 300DPI DT USB/ETH $1,001.00 C
ZD51013D0PB02FZ ZD510-WIFI ZEBRA ZD510-HC WRISTBAND 300DPI DT USB/ETH/BT/WIFI $1,122.00 C
[B] Accessories
P1100266-006 ZEBRA ZD510 SMART CARD READER W/CABLE KIT $352.00 A
[C] Z-Band Wristbands (cartridges)
Ultrasoft (Healthcare) Ultra-soft polypropylene and vinyl with adhesive tamper evident tab
10015355-2K ZEBRA Z BAND U/SOFT ADULT PKT/6 BLUE $682.00 A
10015356K ZEBRA Z BAND U/SOFT 19.1X279.4MM PKT/6 WHITE $633.60 A
10019249K ZEBRA Z BAND U/SOFT ADULT PKT/6 RED $592.90 A
10020263K ZEBRA Z BAND U/SOFT PAEDIATRIC 1X7 PKT/6 RED $1,320.00 A
10023367K ZEBRA Z BAND U/SOFT BARIATIC PKT/6 WHI $678.70 A
10023368K ZEBRA Z BAND U/SOFT BARIATIC PKT/6 RED $656.70 A
ZIPRD3015155 ZEBRA Z BAND U/SOFT ADULT PKT/3 ZBR2002 RFID-LR $540.10 A
Direct (Direct thermal, polypropylene with tamper evident tab)
10004443-1 ZBD-RED/200 ZEBRA Z BAND DIRECT ADULT 200/ROLL RED $114.40 A
10004443-2 ZBD-YEL/200 ZEBRA Z BAND DIRECT ADULT 200/ROLL YELLOW $114.40 A
10004443-3 ZBD-BLU/200 ZEBRA Z BAND DIRECT ADULT 200/ROLL BLUE $114.40 A
10004443-4 ZBD-GRN/200 ZEBRA Z BAND DIRECT ADULT 200/ROLL GREEN $114.40 A
10004443-5 ZBD-PNK/200 ZEBRA Z BAND DIRECT ADULT 200/ROLL PINK $127.60 A
10004443-6 ZBD-ORA/200 ZEBRA Z BAND DIRECT ADULT 200/ROLL ORANGE $114.40 A
10006995-3K ZBD-GRN/200x6 ZEBRA Z BAND DIRECT ADULT PKT/6 HC100 GREEN $672.10 A
10006995-5K ZBD-PNK/200x6 ZEBRA Z BAND DIRECT ADULT PKT/6 HC100 PINK $682.00 A
10006995-7K ZBD-YEL/200x6 ZEBRA Z BAND DIRECT ADULT PKT/6 HC100 YELLOW $686.40 A
10006997K ZBD-RED/200x6 ZEBRA Z BAND DIRECT ADULT 200/R PKT/6 HC100 RED $640.20 A
10031289K ZEBRA Z BAND DIRECT INFANT SOFT PKT/6 WHITE HC100 $831.60 A
Fun Wristband (for events and amusement parks)
10012713-3K ZEBRA Z BAND FUN PKT/6 BLUE HC100 $488.40 A
10012713-4K ZEBRA Z BAND FUN PKT/6 GREEN HC100 $488.40 A
10012713-7K ZEBRA Z BAND FUN PKT/6 PURPLE HC100 $488.40 A
10012713-1K ZEBRA Z BAND FUN RED HC100/ZD510 MOQ X6 $488.40 A
10012713-5K ZEBRA Z BAND FUN PINK HC100/ZD510 MOQ X6 $488.40 A
10012713-2K ZEBRA Z BAND CARTRIDGE HC100 FUN PKT/6 YELLOW $488.40 A
[D] Extended Maintenance
Z1BE-ZD5H-1C0 ZEBRA SERVICE ONECARE ESSENTIAL ZD510 1YR COMP $152.90 V
Z1AE-ZD5H-3C0 ZEBRA ONECARE ESSENTIAL ZD5H 3YR COMP $240.90 V
Z1AE-ZD5H-5C0 ZEBRA ONECARE ESSENTIAL ZD5H 5YR COMP $479.60 V
