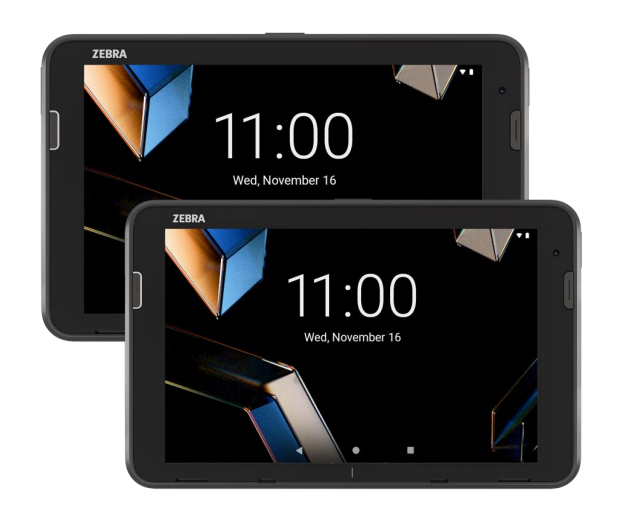

Zebra - ET401 Series
Enterprise Tablets
 |
The ET401 Series Enterprise Tablets is Zebra's next generation tablets, built with durability for businesses right out of the box at the right price. Built with the familiar thin and light consumer design combined with today’s most advanced mobile technologies, the ET401 is smarter then ever, empowered by AI. The ET401's improved touchscreen technology makes these tablets even more intuitive and easier to use. They’re faster, with all the latest wireless technologies, more rugged and has a longer lifecycle. A more powerful, stronger processor, with more memory means this tablet can meet the demands of high paced environments. These tablets are more secure then previous series, with new options that provide additional protection. With enhanced data capture options, including RFID, these tablets are versatile and ready to streamline a wider range of tasks across various job types. The ET401 Enterprise Tablets have the sleek design your workers expect, with the power and rugged reliability your enterprise needs. Download the Zebra ET401 Series product brochure Here. Features
|
|---|
Specifications
| 8 Inch ET401 | 10 Inch ET401 | |||
|---|---|---|---|---|
| Physical Characteristics | ||||
| Dimensions | 212.7mm (l), 134.4mm (h), 11.4mm (d) | 256.1mm (l), 162.7mm (w), 11.4mm (d) | ||
| Weight | 480g | 690g | ||
| Environmental Characteristics | ||||
| Operating Temperature | -20ºC to +50ºC | |||
| Storage Temperature | -40ºC to +70ºC | |||
| Relative Humidity | 5% to 95% (non-condensing) | |||
| Drop Spec | 1.2m to concrete (1.5m to concrete with optional rugged frame per MIL-STD-810H) | |||
| Electrostatic Discharge | +/- 15 kV air discharge; +/- 8 kV contact; +/- 8 kV indirect | |||
| Sealing | IP68 | |||
| Vibration | 4g’s Peak Sine (5Hz to 2kHz); 6g RMS Random (20Hz to 2kHz) | |||
| Software / Hardware | ||||
| Operating System | Android 15. Upgradeable to Android 18 | |||
| CPU | Qualcomm Dragonwing™ Q-6690 Processor, up to 2.0 GHz | |||
| Memory | Standard: 6GB LPDDR5 RAM/ 64GB UFS 2.2 Flash Premium: 8GB LPDDR5 RAM / 128GB UFS 2.2 Flash | |||
| Memory Expansion | MicroSD card slot supports up to 2TB> | |||
| SIM Slot | Single Nano SIM and supports eSIM | |||
| Power | ||||
| Battery Type | Rechargeable 3.91V Li-Ion Polymer User Replaceable | |||
| Battery capacity: | 6100 mAh 3.87V (23.46Wh) | 7600 mAh 3.87V (29.71Wh) | ||
| Optional | Hot swappable 3400 mAh 7.6 V (25.84Wh) secondary battery, for use with expansion back accessory Battery free operation from external source through USB-C or O\I/O Connector | |||
| Display | ||||
| Size | 8.0" (203mm) | 10.0" (257mm) | ||
| Resolution | WUXGA, 1920x1200 | |||
| Screen Brightness | 600 nits | |||
| Protection | Corning Gorilla Glass 5 | |||
| TouchScreen | Capacitive multi-touch, optically bonded to display | |||
| Communications/Interfaces | ||||
| Keypad/Buttons | On-screen Keypad, Volume up/down, Power, Scan, Programmable buttons | |||
| Barcode Scanner Options | Integrated SE4100 Imager or SR500 Imager | |||
| Cameras | Rear: 16MP Phase Detection Autofocus or 13MP ultra Wide Front: 5MP | |||
| Optional WWAN | 5G, 4G, 4G LTE, 3G, 2G | |||
| WLAN | IEEE 802.11 be/az/mc/ax/ac/n/a/g/b/d/h/i/r/k/u/v/w Tri-band (2.4 GHz, 5 GHz, 6 GHz) 2x2 MU-MIMO Wi-Fi CERTIFIED 7 MLO (Simultaneous Transmit and Receive MLMR) | |||
| GPS | GPS; GLONASS; a-GLONASS; Galileo; Beidou; QZSS; Dual-Band GNSS—concurrent L1/G1/E1/B1; (GPS/QZSS, GLO, GAL, BeiDou) + L5/E5a/BDSB2a(GPS/QZSS, GAL, BeiDou);a-GPS; supports XTRA | |||
| Bluetooth | Class 1, Bluetooth v6.0; Classic Bluetooth(BR/EDR) and Bluetooth LE; BLE Audio; BLE beaconing; Bluetooth Channel Sounding | |||
| NFC | Reader/Writer: ISO 14443 Type A and B, ECP, MIFARE, FeliCa®, ISO 15693, NFC Forum Tag Types 1 to 5; Host Card Emulation Support for Apple Pay VAS8/Google SmartTap8, NFC Forum Certified | |||
| Optional UHF RFID (Rain) (Only available on specific models) | Short range integrated UHF RFID; 1.2 m range; reads > 90 tags per second; EPC Class 1 Gen2; EPC Gen 2 V2; US 902-928 MHz | |||
| Interactive Sensor Technology (IST) | Motion sensor: 3-axis gyroscope; 3-axis accelerometer Light sensor: Automatically adjusts display brightness Magnetometer: eCompass automatically detects direction and orientation | |||
| Part Number | Model Number | Description | RRP Inc GST |
T % |
|---|---|---|---|---|
| [A] Zebra ET401 Series | ||||
| WiFi Only | ||||
| ET4010A-001C1B0P-A6 | ||||
| ET4010B-001C1B0P-A6 | ||||
| 5G with Wifi | ||||
| ET401EA-301P2B2P-A6 | ||||
| ET401EB-301P2B2P-A6 | ||||
| [B] Charging Options | ||||
| USB Wall Charger | ||||
| PWR-WUA5V12W0AU | PS5RS2500W | ZEBRA PSU AC 2.5A 5V TC51/TC56/TC57 WITH AU PLUG | $39.60 | C2 |
| CBL-TC5X-USBC2A-01 | ZEBRA CABLE DATA/POWER USB-C TO USB-A 1M | $16.50 | C2 | |
| ET401 Charge only Desk Cradle - Single (Adjustable to seat the 8-inch or 10-inch tablet, with or without Zebra rugged boot, expansion back, or payment back) | ||||
| CRD-ET4A-1SCG1-01 | ||||
| PWR-WUA5V45W1AU | ||||
| CBL-TN28USBC2C-01 | ||||
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| ET4 Series Charge only Cradle - Single. Charges a single ET40, ET45 or ET401 table, 8" or 10" (Accommodates tablet with or without rugged boot, expansion back, or payment back) | ||||
| CRD-ET4X-1SCG1-01 | ||||
| PWR-BGA12V50W0WW | PS12RS416 | ZEBRA PSU 12V/4.16A 50W | $79.20 | C2 |
| CBL-DC388A1-01 | ||||
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| ET4 8" Series Four Slot Charge only Cradle | ||||
| CRD-ET4X-4S8I1-01 | ||||
| PWR-BGA12V108W0WW | PS12RS9000 | ZEBRA PSU AC 12V/9A 108W | $170.50 | C2 |
| CBL-DC-382A1-01 | ZEBRA CABLE POWER DC FOR MULTIDOCK CRADLES | $42.90 | C2 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| ET4 10" Series Four Slot Charge only Cradle | ||||
| CRD-ET4X-4S10I1-01 | ||||
| PWR-BGA12V108W0WW | PS12RS9000 | ZEBRA PSU AC 12V/9A 108W | $170.50 | C2 |
| CBL-DC-382A1-01 | ZEBRA CABLE POWER DC FOR MULTIDOCK CRADLES | $42.90 | C2 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| [C] Replacement Battery: | ||||
| BTRY-ET401-08INC-01 | ||||
| BTRY-ET401-10INC-01 | ||||
| [D] Accessories | ||||
| Replacement T-adapters for tablets used in multi slot cradles: | ||||
| ADP-ET4X-8T4S1-04 | ZEBRA T-ADAPTER 4/PK FOR 8IN ET40/ET45 4-BAY DOCK | $99.00 | C3 | |
| ADP-ET4X-10T4S1-04 | ZEBRA T-ADAPTER 4/PK FOR 10IN ET40/ET45 | $99.00 | C3 | |
| Expansion Pack Spare battery | ||||
| BTRY-ET5X-PRPK2-01 | ZEBRA BATTERY EXPANSION 2ND FOR 8IN & 10IN ET5X | $372.90 | C3 | |
| VESA Adapter for 10” Tablet: | ||||
| ZBK-ET4X-10VESA-01 | ZEBRA EXPANSION BACK ET40/ET45 10IN VESA/DC INPUT | $506.00 | C2 | |
| PWR-BGA12V50W0WW | PS12RS416 | ZEBRA PSU 12V/4.16A 50W | $79.20 | C2 |
| CBL-DC-388A2-01 | ZEBRA DC LINE CORD FOR SINGLE LEVEL VI PSU | $22.00 | C2 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| Expansion backs for ET4 Series 8” and 10” tablets | ||||
| ZBK-ET4X-8BTRYBK1-01 | ||||
| ZBK-ET4X-10BTRYBK1-01 | ||||
| Battery for Expansion backs for ET4 Series 8” and 10” tablets | ||||
| BTRYET5X-PRPK2-01 | ||||
| Rugged boots for ET401 tablets | ||||
| SG-ET401-08EXO-01 | ||||
| SG-ET401-08EXO-02 | ||||
| SG-ET401-10EXO-01 | ||||
| SG-ET401-10EXO-02 | ||||
| Breakaway shoulder strap for ET4 Series (Requires Rugged Boot and D-clips to hook to use with ET4X tablet) | ||||
| SG-ET5X-SHDRSTP-01 | ||||
| Universal shoulder strap for ET4 Series | ||||
| 58-40000-007R | ZEBRA SHOULDER STRAP UNIVERSAL | $25.30 | C2 | |
| Hand strap for ET4 Series | ||||
| SG-ET5X-HNDSTP-01 | ||||
| D-clips for ET4 Series hat provides required hook points for a shoulder or hand strap on a rugged frame on 8” and 10” ET4 Series tablet | ||||
| SG-ET4X-DCLIPS-01 | ZEBRA D-CLIPS FOR SHOULDER STRAP ET4X (1 PAIR) | $55.00 | C3 | |
| Connect Accessories for ET4 Series. These accessories allow for the ET4 Series tablet to connect to multiple purpose-built peripherals and enable Zebra Workstation Connect on an external monitor | ||||
| Connect Cradle for ET4 Series, offers connections for standard workstation setups (monitor, keyboard, mouse) | ||||
| CRD-ET4X-1SNWS-01 | ZEBRA DOCK WORKSTATION HDMI/ETH/USB ET4X | $913.00 | C2 | |
| CRD-ET4X-1SNWS-02 | ZEBRA DOCK WORKSTATION HDMI/ETH/USB FOR ET4X | $913.00 | C2 | |
| PWR-BGA12V50W0WW | PS12RS416 | ZEBRA PSU 12V/4.16A 50W | $79.20 | C2 |
| CBL-DC-388A2-01 | ZEBRA DC LINE CORD FOR SINGLE LEVEL VI PSU | $22.00 | C2 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| Connect Hub for ET4 Series, provides three additional powered USB ports for setups utilizing POS-specific peripherals such as a payment terminal, receipt printer, or scanner | ||||
| CRD-ET4X-1SNWS-01 | ZEBRA DOCK WORKSTATION HDMI/ETH/USB ET4X | $913.00 | C2 | |
| CRD-ET4X-1SNWS-02 | ZEBRA DOCK WORKSTATION HDMI/ETH/USB FOR ET4X | $913.00 | C2 | |
| PWR-BGA24V150W1WW | ||||
| CBL-ET4X-SCHCAB-01 | ||||
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| BRKT-NWPC-DSKPS-01 | ZEBRA MOUNTING BRACKET FOR CONNECT HUB | $33.00 | C3 | |
| Presentation Stand for 10" ET4 series | ||||
| STND-ET4X-10POS1-01 | ZEBRA PRESENTATION STAND ET40/ET45 10IN | $759.00 | C2 | |
| MISC-ET4X-BTDPS-01 | ZEBRA BATTERY COVER POS STAND LANDSCAPE ET4X 10IN | $132.00 | C3 | |
| MISC-ET4X-PBTDS-01 | ZEBRA BATTERY COVER POS STAND PORTRAIT ET4X 10IN | $121.00 | C2 | |
| BRKT-ET4X-DSKPS-01 | ZEBRA MOUNTING BRACKET FOR ET4X PRESENTATION STAND | $33.00 | C3 | |
| CBL-ET4X-SCHCAB-01 | ||||
| PWR-BGA12V50W0WW | PS12RS416 | ZEBRA PSU 12V/4.16A 50W | $79.20 | C2 |
| CBL-DC-388A2-01 | ZEBRA DC LINE CORD FOR SINGLE LEVEL VI PSU | $22.00 | C2 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| BRKT-ET4X-DSKPS-01 | ZEBRA MOUNTING BRACKET FOR ET4X PRESENTATION STAND | $33.00 | C3 | |
| KT-MC18-CKEY-20 | ||||
| Plastic Stylus Set | ||||
| SG-TC7X-STYLUS-03 | ZEBRA STYLUS PLUS TETHER MC3X/TC5X/TC7X/TC8X 3PK | $73.70 | C2 | |
| Fiber Tipped Passive Stylus Set: | ||||
| SG-STYLUS-TCX-MTL-03 | ZEBRA STYLUS PASSIVE MICRO-KNIT HYBR FIBER TIP 3PK | $39.60 | C2 | |
| Coiled Tether Set | ||||
| KT-TC7X-TETHR1-03 | ZEBRA TETHER COILED BLK 3/PK FOR TC7X | $48.40 | C2 | |
| USB-C wired headsets for Workforce Connect: | ||||
| HDST-USBC-PTT1-01 | ZEBRA HEADSET W/ROTATING EAR PIECE USB-C | $154.00 | C2 | |
| HS2100 wired rugged headsets: | ||||
| HS2100-OTH | ZEBRA AUDIO HEADSET RUGGED HS2100 WIRED | $334.40 | C2 | |
| HS2100-OTH-SB | ZEBRA AUDIO HEADSET RUGGED HS2100 WIRED + HSX100 | $334.40 | C2 | |
| HS2100-BTN-L | ||||
| HS2100-BTN-SB | ||||
| CBL-HS2100-3MS1-01 | ZEBRA CABLE 3.5MM JACK STANDARD ASSY 1.1M HS2100 | $47.30 | C2 | |
| ADP-USBC-35MM1-01 | ||||
| HS3100 wireless rugged headsets | ||||
| HS3100-OTH | ZEBRA AUDIO HEADSET RUGGED HS3100 OTH BT | $820.60 | C2 | |
| HS3100-OTH-SB | ZEBRA AUDIO HEADSET RUGGED HS3100 OTH BT KIT | $820.60 | C2 | |
| HS3100-BTN-L | ||||
| HS3100-BTN-SB | ||||
| HS3100-SBOOM-01 | ZEBRA HS3100 SHORTENED BOOM MODULE | $484.00 | C2 | |
| Spare/replacement battery cover for ET401 | ||||
| MISC-ET401-08BTC-01 | ||||
| MISC-ET401-10BTC-01 | ||||
| Spare/replacement rotating hand strap used on Expansion Back for ET4 Series | ||||
| SG-ET5X-RHTP1-01 | ||||
| [E] Support Contracts | ||||
| Standard | ||||
| Z1AE-ET401X-3C00 | ||||
| Z1AE-ET4 -3C03 | ||||
| Z1AE-ET401X-5C00 | ||||
| Z1AE-ET4 -5C03 | ||||
| Including Dock and Battery | ||||
| Z1AE-ET4 -3103 | ||||
| Z1AS-ET4 -3C03 | ||||
| Z1AE-ET4 -5103 | ||||
