UMD - Model 641A-02
Scan-Rite Horse Identity Verifier

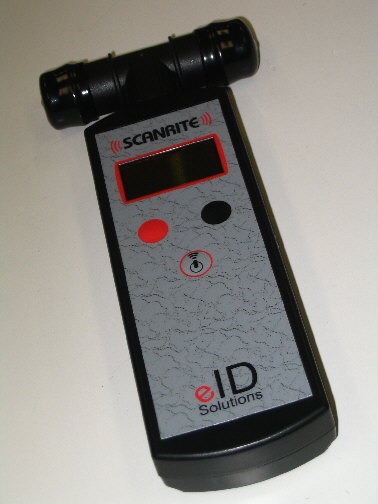

The Unique Micro Design Scan-Rite™ Model 641A-02 is a portable hand held RFID microchip reader that has been specifically configured to meet the needs of the equine industry to confirm the identity of microchipped horses.

The reader’s SD Memory Card is loaded with a database of tagged horses which includes name, brands and markings, allowing for on the spot verification.

Platform Product

The Scan-Rite™ can decode standard 134.2KHz Half and Full Duplex tags. It has been developed as a platform product that can be uniquely configured and programmed to meet a variety of end-customer and OEM applications.

The Scan-Rite™ is typically used to read RFID tags in animals such as cows, horses, pets and sheep. The tags may be subcutaneously implanted or externally located. The Scan-Rite™ boasts low power operation, flash memory firmware upgrades, optional Bluetooth and serial communications, bright graphic OLED display, vibration user feedback, SD Memory Card storage and three user programmable keys.

Features:

  • Low Frequency RFID Reader (both HDX and FDX protocols)
  • Optional SD Memory Card for database lookup and storage
  • Optional Bluetooth wireless communications
  • RS232 serial communications
  • User feedback via bright OLED graphic display and vibrator
  • User input via three buttons
  • Battery backed real-time clock
  • Low power operation - uses 4 standard AA batteries
  • Custom applications can be downloaded to flash memory
  • Designed and manufactured in Australia by Unique Micro Design
  • 12 month warranty

Specifications

Physical Characteristics
Width62 mm
Length220 mm
Depth27 mm
WeightApprox.400g with batteries
CaseBlack ABS Plastic
Environmental Characteristics
Operating Temperature0ºC to 50ºC
Storage Temperature-10ºC to 60ºC
Relative Humidity5% to 95% (non-condensing)
Hardware
CPU8 bit
MemoryEEPROM: 128 Kb (For data)
Flash: 64 Kb (Program space, Downloadable via X-Modem)
Expansion: SD Card - Upto 2GB
Display
TypeYellow OLED Graphics with 4 bit (16 level) Greyscale
Size36.46 mm wide by 18.22 mm high
(128 x 64 pixels)
Brightness100cd/m2
Power
Battery4x AA Dry Cells
Controls
Buttons3 (application specific)
FeedbackVibrator
Communications
SerialRS232 3.5mm jack
Optional WirelessBluetooth Class 1 (SPP)
RFID Reader
Frequency134.2kHz
ProtocolHDX and FDX
DecodingAnimal Tags (ISO 11785)
Read RangeUpto 250 mm - depending on tag and orientation

UMD Model 641 Series Configuration Table

M641A











Scan-Rite™ Portable RFID Microchip Reader



RFID Option

0



HDX and FDX with T Antenna



Communication Options

0

B



No Bluetooth

Bluetooth



Hardware Options

00

01



Standard Facia

With SD Card Interface



Firmware (Flash Programmable)

00

01

02

XX



Unprogrammed

Basic Reader

Horse Identity Verifier

Customer Specific



M641A













Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] M641A-02 Series
Contact UMD Sales for Pricing and Availability
UMD Model 641A02 Product Description
[B] Replacement Parts
2-6295-010-5 CA6295-1 M610 RS232 stereo jack - DB9S PC $22.00 U1
