Troi - CC-71
UHF RFID Industrial Tag - Raw Covered Wire Tag

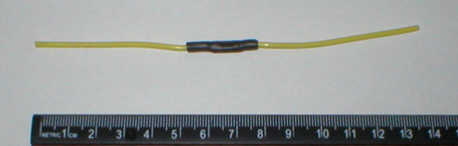

The TROI CC-71 ("Patents Pending") is a flexible wire based tag, employing rugged MSOP (chip) on board electronics design. The CC-71 has excellent read/write performance on any non-metal surface and can be embedded or molded into a variety of materials.


  • Small size
  • Consistent UHF range performance
  • EPC Class 1, Gen G2 (C1G2) Protocol
  • Delivers superior performance on a variety of materials
  • Reusable for lower cost per use
  • Specifications

    Supported StandardEPC Gen 2 / ISO 18000-6c Compliant
    Resonance Frequency902 - 928 MHz
    Memory96 bits
    Nominal Read DistanceUpto 3.0m under FCC Part 15 (36 dBm EIRP))
    Write DistanceUpto 0.3m under FCC Part 15 (36 dBm EIRP))
    Dimensions 114mm x 4mm (board area only) x 2 mm
    Operating temperature -78C to +200C
    (85C 30 days; Shock 85C/-25C 1 week)
    (160C 30 days; 125C-100% Humidity 7 days; 200C 24hr)
    Ordering Information and Pricing
    Part Number Model Number Description RRP
    Inc GST
    [A] Troi CC-71
    9-9820-020-8 CC-71 Chip Cover $7.81 A
    [B] Troi FT-7001-I (Chip not covered)
    9-9820-230-1 FT-7001-I Flex Tag $5.94 A6
