Troi - CC-101
UHF RFID Industrial Tag


The TROI CC-101 Embeddable RFID tag provides automatic identification and tracking capabilities never-before available in such a unique package designed for rugged or hazardous use-areas. It can withstand unprecedented high temperature (consistent temperatures of 200 degrees Centigrade), high pressure and severe environmental conditions.

The CC-101 can be embedded into mould or assembly processes, and can be attached by clips, bands or adhesive. Embeddable applications include:
Concrete
Industrial garments
Moulded thermoplastics
Compression and injection moulding
High value items
Aerospace applications
Military applications
And more.

  • Small size
  • Consistent UHF range performance
  • EPC Class 1, Gen G2 (C1G2) Protocol
  • Delivers superior performance on a variety of materials

Specifications

Physical Characteristics

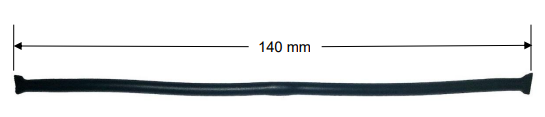

Size140mm x Max. 4mm Diameter (Max. is over Chip)
CoverPolyolefin thermoplastic
Tensile StrengthMinimum 2500 psi
Surface CompatibilityAny
Environmental Characteristics
Operating temperature -50C to +200C
Temperature Cycling 200 deg C, continuous for 30-days
Ingress ProtectionIP69K
Chemical ResistanceNo physical or performance changes in:
- Salt water
- NaOH (depending on concentration)
- Sulfuric acid (depending on concentration)
- Motor oil (tested in 168 hour exposure)
Generally good against:
- Most solvents
- Most acids and bases
RFID Characteristics
Supported StandardEPC Global Class 1 Gen 2 / ISO/IEC 18000-6C
Resonance Frequency902 - 928 MHz
IC
Standard:
Optional:

Alien Higgs 3
EM, Fujitsu, Impinj, NXP (others on request)
Memory
Standard:
Optional:

128 bits
Upto 240 bits
Factory Memory Content96 bit Number Encoded
Extended Memory512 bits
Real World Read Distance4m in air; 7m on rubber
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Troi CC-101 Covered Tags
9-9820-080-4 CC-101 Flex Tag, Chip Cover $10.78 A
9-9820-081-3 CC-101HD Flex Tag, Chip Cover, Heavy Duty $12.76 A
Contact UMD Sales for volume pricing.
