Times7 - A9044M
UHF Packing Station RFID Antenna


The Times-7 A9044M Packing Station Antenna is engineered for reliable item-level reads in densely packed product environments. Outperforming conventional multi-patch arrays in standard portal setups, the Packing Station Antenna uses a high-gain, multi-patch design with varied orientations to deliver 100% read rates when integrated into tunnel systems.

Whether deployed as a standalone tabletop unit or integrated into a tunnel, the Packing Station Antenna enables efficient and adaptable workflows, allowing it to read over a thousand tags in just seconds.

Features

  • Compact, slim, lightweight, yet a powerful antenna
  • Multi-linear polarised
  • Tilted beams operated using a four port reader
  • Combination of evenly distributed near-field and far-field energy
  • Able to read densely packed assets in seconds: Accurately reads tagged items during packing to reduce errors, eliminate manual checks, and enable automated order confirmation
  • Flexible mounting options
  • Purpose built for e-commerce and omnichannel fulfilment, retail back rooms, third-party logistics providers (3PLs) and dark stores

Specifications

Physical Characteristics
Dimensions 640 mm x 650 mm x 8.6 mm
Weight 2Kg
Mounting 8 perimeter mounting holes (corners and mid-edge)

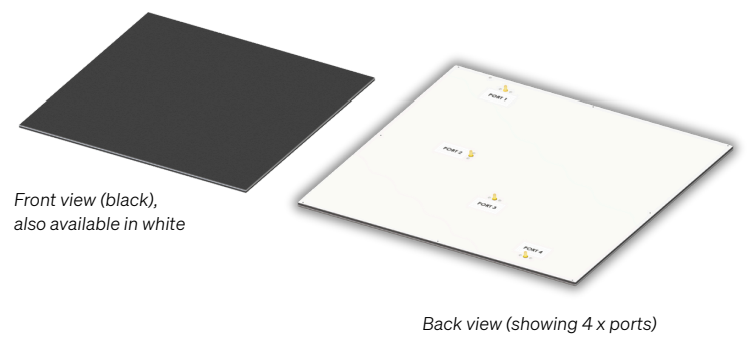

RF Connection 4 x connectors, SMA Female (Jack), rear-mounted
Radome Material Flame-retardant and UV-resistant ABS
Environmental
Operating Temperature -20 to 55°C
Storage Temperature -20 to 55°C
Ingress Protection Rating IP54
Antenna Characteristics
Frequency
(Select one band)		865-868 MHz (Europe)
902-928 MHz (US - Australia)
Polarization Multi-linear polarisation
Farfield Gain 7dBi (typical)
Far-Field 3dB Beamwidth 65° in both azimuth and elevation planes with 10° beam tilt (Ports 2,3)
30° and 40° in azimuth and elevation with 15-20° beam tilts (Ports 1, 4)
Max Power 3W
VSWR 1.85 typical
Front-To-Back Ratio -15dB typical
Nominal Impedance 50Ω
Anti-Static Protection DC grounded
Antenna Detection 10KΩ resistance



Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST		 T
%
[A] Times-7 A9044M Packing Station Antenna
T7-75331
T7-75576
[B] Co-ax Cables
SMA to TNC (RG)
2-9003-020-4 CA9003-2 Coax Cable, RG58, SMA - RevP TNC 2m $89.10 U
2-9003-030-5 CA9003-3 Coax Cable, RG58, SMA - RevP TNC 3m $92.40 U
2-9003-040-9 CA9003-4 Coax Cable, RG58, SMA - RevP TNC 4m $94.60 U
2-9003-050-1 CA9003-5 Coax Cable, RG58, SMA - RevP TNC 5m $97.90 U
2-9003-060-0 CA9003-6 Coax Cable, RG58, SMA - RevP TNC 6m $101.20 U
2-9003-080-2 CA9003-8 Coax Cable, RG58, SMA - RevP TNC 8m $107.80 U
SMA to SMA
2-9022-010-2 CA9022-1 Coax Cable, RG316, SMA Plug/SMA Plug $53.90 A
2-9022-030-0 CA9022-3 Coax Cable, RG316, SMA Plug/SMA Plug -3m $80.30 A
2-9022-050-8 CA9022-5 Coax Cable, RG316, SMA Plug/SMA Plug -5m USE 2-9019 $82.50 A
