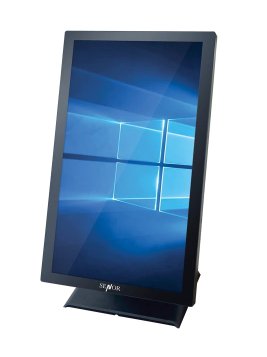

SENOR -Peta POS Series
Touchscreen System
 |
The SENOR Peta POS Series is a robust POS touch screen with an integrated computer, designed to be suitable for use in a wide range of applications. Available in either Windows or Android variations the Peta POS is a robust VESA Mountable Touchscreen Computer designed to meet any customer facing requirement. Features
|
|---|
| Model | PETAPOS 900 | PETAPOS X30 | PETAPOS A100 | |
|---|---|---|---|---|
| Physical Characteristics | ||||
| Width | 516 mm | |||
| Height | 314 mm | |||
| Depth | 55 mm | |||
| Weight | 5.6Kg | |||
| Chassis | Die-cast Aluminium | |||
| Mounting | VESA 100x100mm Pattern | |||
| Environmental Characteristics | ||||
| Operating Temperature | 0 to 34°C | |||
| Storage Temperature | -20 to 60°C | |||
| Operating Humidity | 20 to 80% (Non-Condensing) | |||
| Storage Humidity | 10 to 90% (Non-Condensing) | |||
| Electrical | ||||
| Power Source | External 100 ~240 V/AC | |||
| Power Adaptor Output | +12.0 V/DC, 7A, 84W (Max) | |||
| System Configuration | ||||
| CPU | Intel Quad Core Celeron J1900 2.0 GHz, up to 2.42 GHz | Intel Dual Core i3-4100U 1.7 GHz | ARM Quad Core Cortex-A17 1.8GHz (RK3288) | |
| RAM | 4 GB DDR3L RAM (upto 8GB) | 4 GB DDR3L RAM (upto 16GB) | 2 GB DDR3 | |
| Storage | 1 x 2.5” removable SSD/HDD, 1 x mSATA | 16 GB eMMC | ||
| Display | 21.5” TFT LCD, 1920 x 1080 pixels | |||
| Brightness | 225 cd/m2 | |||
| Touch Panel | Projected capacitive touch (10-point, multi-touch) | |||
| I.O Interface | ||||
| USB Ports | 2 x USB 2.0, 2 x USB 3.0 | 3 x USB 2.0 | ||
| Serial Ports | 1 x DB9, 2 x RJ50 | 1 x DB9 | ||
| Network Port | 1 x RJ45 10/100/1000 Mbps | |||
| Wireless Ports | - | BT 4.0, Wi-Fi 802.11 b/g/n | ||
| Video-Out Ports | 1 x VGA, 1 x HDMI | 1 x Display Port, 1 x HDMI | 1 x HDMI | |
| Audio Ports | 1 x mic-in/line-out (combined) | |||
| Software | ||||
| Operating System | Windows 10 IoT, Windows 10 Pro | Android | ||
| Options | ||||
| Options | 1D/2D Integrated Barcode Reader, Desk Stand | |||
| Part Number | Model Number | Description | RRP Inc GST |
T % |
|---|---|---|---|---|
| [A] Peta POS | ||||
| PETA900PCT | ||||
| PETAX30PCT | ||||
| PETAA100 | A100 | 21.5” TFT LCD, projected capacitive touch Screen Rock Chip RK3288 1.8 GHz, 2 GB DDR3 RAM 16 GB eMMC Android 8.1, BT 4.0, external SD card slot | $2,200.00 | A |
| [B] Options | ||||
| BCR | ||||
| Stand | ||||
| SSDUPGRADE | ||||
| RAMUPGRADE | ||||
| [C] Operating System | ||||
| WIN7PRO | WIN 7 PRO | Windows 7 Professional (pre-intalled with Senor drivers) 32bit/64bit | $385.00 | A |
| S-OSFFAA01300 | ||||
| S-OSFFAA01200 | ||||
