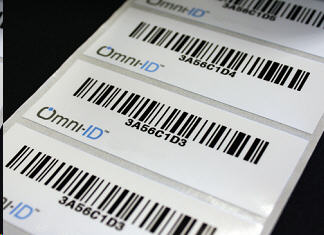

HID (Omni-ID) - IQ Series Premium Labels
UHF RFID Labels


The HID Omni-ID IQ Premium synthetic RFID label products are designed to provide strong performance on plastic and non-metal assets in easy to deploy labels. Constructed from high specification polymer and adhesive materials these labels are suitable for extended use and are resistant to scratching, peeling and UV degradation.

The IQ-400 is a small footprint label designed for the office environment to provide strong performance on plastic and non-metal assets in a small, easy to deploy label.

TheIQ 800P is designed with an ultra high performance dipole antenna for market leading performance on plastic and none metallic assets. High specification polymer and adhesive materials ensure the product is durable for extended outdoor use including standard industrial wet cleaning processes.

Applications

  • Plastic Facias on IT equipment.
  • Office Furniture.
  • Monitors and IT accessories.
  • Plastic RTIs and containers.
  • Plastic Pallets.
  • None metallic industrial assets.

Specifications

IQ-400PIQ-800P
Physical Characteristics
Dimensions46mm x 12.4mm x 0.24mm95mm x 21mm x 0.24mm
Weight0.15g0.5g
AdhesiveSelf-adhesive (standard)
EncasementPremium Synthetic
Environmental Characteristics
Operating Temperature-40C to 85C
Short Term Max. Temp-40C to 85C
Ingress ProtectionIP68
Shock and VibrationMIL STD 810-F
Material CompatibilityPlastic and Non-Metal Substrates
RFID Characteristics
RF ProtocolEPC Class 1 Gen2v2
Operating Frequency Range860 to 960 MHz
Operating ModePassive
Read Range
Fixed Reader:
Hand Reader:

Upto 8.0m
Upto 4.3m

Upto 15.0m
Upto 4.9m
Tag Characteristics
ChipImpinj-M730
MemoryEPC - 128 bits, User - 0 bits, TID - 48 bits

A full Bureau service is available for printing and pre-encoding these tags at the point of Manufacture


Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Sample Tags (Indent Only)
CP15924-GS-M730 IQ-400P Omni ID RFID UHF Label, MOP Premium Synthetic, 46.5x12.4mm, M730, each (1K/roll) $1.43 A
CP15907
