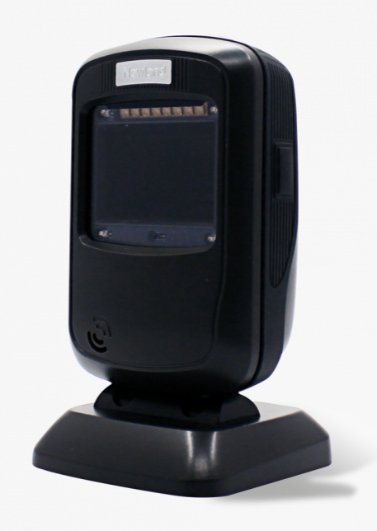

Newland FR40
Presentation Bar Code Reader


As the first megapixel scanner on the market, the FR40 Koi reads 1D and 2D barcodes, including Aztec, with speed and ease. Equipped with a switch to toggle between paper and screen modes you are assured to have the best optimised reading every time. The IR sensor in the FR40 Koi enables the speedy capture of any barcode presented to it, markedly increasing output and productivity.

Features

  • Quick to Switch Mode for High Motion Tolerance
  • IP52-rated Sealing
  • 1.2m Drop Resistance
  • IR Trigger
  • Snappy On-screen Barcode Capture
  • 60 month Return to Base Warranty

Specifications

Mechanical
Dimensions 81mm D x 83mm W x 148mm H
Weight 293g
Environmental
Operating Temp. -20 to 60 C
Storage Temp. -40 to 70 C
Relative Humidity 5% to 95% (non-condensing)
Drop 1.2m to concrete
Ingress Protection IP52
ESD 14 KV (air discharge); 8 KV (direct discharge)
Electrical
Voltage Range 5.0 VDC 5%
Operating Current (nominal) 219mA Typical
Optical
Image Sensor CMOS, 1280x800
Pitch 50 (Typical)
Skew 45 (Typical)
Light Source White LED
Print Contrast Ratio 25% minimim reflective difference
Read Distance 10mm to 210mm (dependant on barcode)
Symbologies Decoded
1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 25, Standard 25, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey
2D: PDF417, Data Matrix, QR Code, Micro QR Code, Aztec
Motion Tolerance 2.5m/s
Communications
Interfaces Supported USB, RS-232 Serial
Certifications
Interfaces Supported FCC Part15 Class B, CE EMC Class B, RoHS

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Newlands FR40
NLS-FR40-U FR40 OMNIDIRECTIONAL HANDS-FREE IMAGER READER (X1500 / MEGA-PIXELS) 2M STRAIGHT USB CABLE $220.00 B
