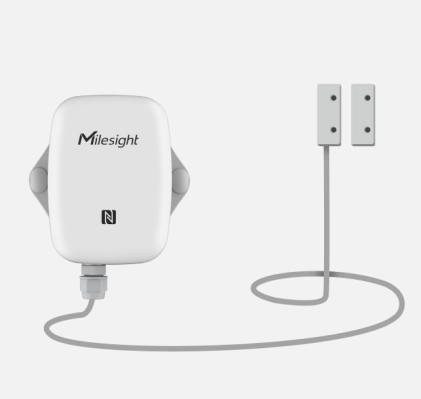

Milesight - EM300-MCS
Magnetic Switch Sensor

	The Milesight EM300-MCS is a compact magnet switch sensor for detecting open/close status of objects (such as doors or windows)and transmitting alarm, using LoRaWAN technology. With this low power consumption technology, EM300-MCS can work upto 5 years with it's 4000 mAh battery. Combined with a LoRaWAN gateway and IoT Cloud solution, users can manage all sensor data and remotely receive alarms. The EM300-MCS sensor also integrates temperature and humidity sensors, providing greater utility for use in applications such as home and office automation, factories monitoring and more. Features High sensitivity with door and window security detection Embedded with temperature and humidity sensors for environment monitoring IP67 UV-resistant and waterproof enclosure for harsh environment applications Replaceable 4000 mAh battery built-in, for upto 5 years of operation, with the option of a second battery Equipped with NFC for easy configuration Compliant with standard LoRaWAN gateways and network servers

The Milesight EM300-MCS is a compact magnet switch sensor for detecting open/close status of objects (such as doors or windows)and transmitting alarm, using LoRaWAN technology. With this low power consumption technology, EM300-MCS can work upto 5 years with it's 4000 mAh battery. Combined with a LoRaWAN gateway and IoT Cloud solution, users can manage all sensor data and remotely receive alarms.

The EM300-MCS sensor also integrates temperature and humidity sensors, providing greater utility for use in applications such as home and office automation, factories monitoring and more.

Features

High sensitivity with door and window security detection
Embedded with temperature and humidity sensors for environment monitoring
IP67 UV-resistant and waterproof enclosure for harsh environment applications
Replaceable 4000 mAh battery built-in, for upto 5 years of operation, with the option of a second battery
Equipped with NFC for easy configuration
Compliant with standard LoRaWAN gateways and network servers

Specifications

Physical Characteristics
Dimensions	Transceiver: 105.6 mm (h) x 85.3 mm (w) x 27 mm (d) Magnet: 32 mm x 15 mm x 8mm on a 1.5m cable
Installation	Wall Mounting
Environmental Characteristics
Operating Temperature	-30慢 to +70慢
Relative Humidity	0% to 100% (non-condensing)
Ingress Protection	IP67
Power
Battery	4000 mAh ER18505 Li-SOCL2 Battery (extendable to 2 batteries)
Battery Life	Upto 10 years (2 Batteries, at a 10 minute read interval and with 48 triggers/day)
Power On/Off	NFC with APP, or Internal Power Button
Sensor Characteristics
Door Magnet	20-30mm Detection Distance
Temperature	Range: -30蚓 to + 70蚓 Accuracy: 0蚓 to + 70蚓 (+/- 0.3蚓), -30蚓 to 0蚓 (+/- 0.6蚓) Resolution: 0.1蚓
Humidity	Range: 0% to 100% RH Accuracy: 10% to 90% RH (+/- 3%), below 10% and above 90% RH (+/- 5%) Resolution: 0.5% RH
Wireless Characteristics
Technology	LoRaWAN
Frequency	CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power	16dBm(868)/20dBm(915)/19dBm(470)
Sensitivity	-137dBm @300bps
Mode	OTAA/ABP Class A
Configuration Interface
NFC	Power On/Off, configure with Mobile App
USB	N/A
Approvals
Regulatory	CE, FCC, RoHS, LoRaWAN Certified

**Ordering Information and Pricing**
Part Number	Model Number	Description	RRP Inc GST	T %
[A] Milesight EM300-MCS Magnetic Switch Sensor
EM300-MCS-915M	EM300-MCS	LoRaWAN Environmental Monitoring, Magnetic Contacty Switch, NFC, 1.5m Cable, IP67	$176.00	C3
