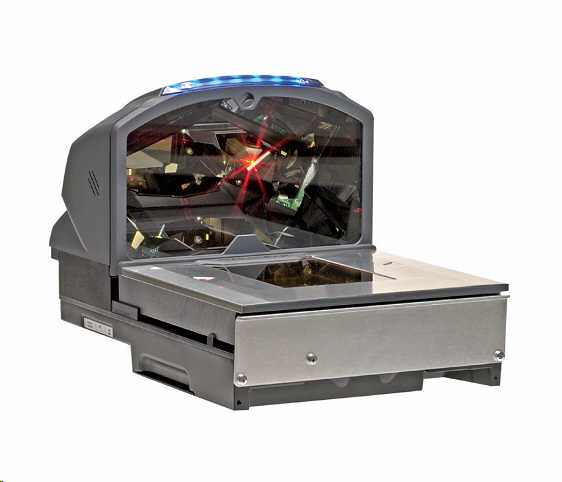

Honeywell - MS2122 StratosE
Presentation Bar Code Reader


The Honeywell MS2122 StratosE is the smallest 6-sided, 360°-bioptic scanner in the market designed for high throughput POS applications requiring enclosures around the vertical tower and cash box in front of the scanner.

StratosE offers a compact form factor, is designed to allow easy integration into most of today’s checkout environments and it's modular independent scanning planes simplify set up, minimize downtime and maximize customer satisfaction.

Each MS2122 includes an RS232 auxiliary port to allow a hand-held bar code scanner to be connected, providing easy scanning of bulky, oversized objects. Other peripherals such as check readers or magnetic stripe readers can also utilize the flexibility of the auxiliary port.

Features

  • Hands Free operation
  • Variety of Interface options
  • Omni-Directional 6 sided 360° scan pattern
  • Independent Scanning Planes
  • 24 month Return to Base Warranty

Specifications

Mechanical
Dimensions 399 mm L x 292 mm W x 278 mm (100mm below counter, 178mm above counter)
Weight 6.8 kg
Environmental
Operating Temp. 0 to 40° C
Storage Temp. -40 to 60° C
Relative Humidity 5% to 95% (non-condensing)
Environmental Sealed to resist airborne particulate contaminants
Electrical
Voltage Range 5.2 V/DC or 12 V/DC ±0.25V
Operating Current (nominal) 810mA @ 5.2V
750mA @ 12V
Optical
Scan Rate 5280 scans per second
Pitch ±60° (Typical)
Skew ±60° (Typical)
Light Source 650 nm visible laser diode (20 interlocking lines)
Ambient Light Immune to normal office lighting conditions, as well as direct exposure to sunlight
Print Contrast Ratio 35% minimim reflective difference
Read Distance From contact to 216 mm (dependant on barcode)
Symbologies Decoded
Reads standard 1D and GS1 DataBar symbologies
Communications
Interfaces Supported Host: USB, RS232, IBM 46xx (RS485), OCIA,
Aux: RS232 Secondary Scanner or Scale, EAS
Certifications
Laser Safety Class 1: IECS60825-1, EN60825-1
EMC FCC Part 15, IECS-003, EN55022 Class A

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Honeywell MS2122 StratosE
Contact UMD Sales for pricing and availability
