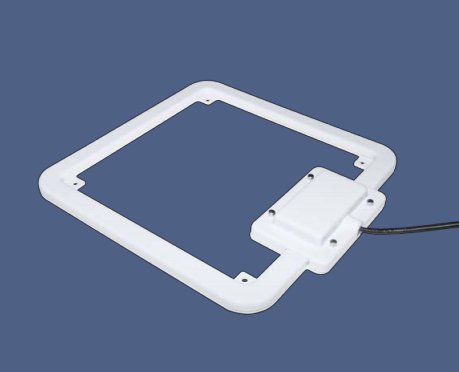

Feig ID - ISC.ANT310/310
HF RFID Loop Antenna

The Feid ID ISC.ANT310 HF Antenna is distributed, already adjusted for most applications by means of jumpers that can be adjusted to changing surrounding conditions for optimal performance.

Typical applications for the antenna are libraries, document tracking, video shops, logistics at conveyor belts or sorting systems, access control and industrial data acquisition. The antenna can be employed in indoor- and outdoor use (IP65).

With a maximum transmitting power of up to 8 W, the antenna can be operated with several HF readers by FEIG ELECTRONIC. Depending on the reader used, read ranges of up to 70 cm can be realized.


  • Transmission power up to 8 W
  • Protection class IP65
  • Useful in many ways with several HF readers
  • Manual alignment electronics for optimal adjustment to different surrounding conditions


Physical Characteristics
Dimensions 318 mm x 338 mm x 30 mm
Weight 700g
Housing White ASA Plastic
RF Connection 1 x SMA plug (50 Ω)
Operating Temperature -25 to 55C
Storage Temperature -25 to 60C
Ingress Protection Rating IP65
Antenna Characteristics
Frequency 13.56MHz
Type Loop
Max Read Ranges 1.0 W transmitting power 430mm
4.0 W transmitting power 600mm
8.0 W transmitting power 700mm

Ordering Information and Pricing
Part Number Model Number Description RRP
[A] Feig ID ISC.ANT310 Antenna
[B] Reader
