Confidex Viking Series
Boltable BLE Beacon

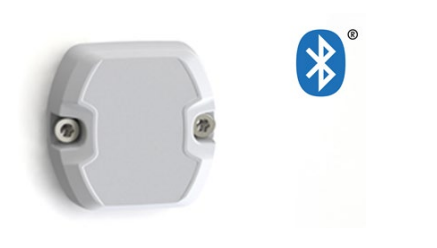

The Confidex Viking Classic is an industrial grade Bluetooth Low Energy (BLE) Beacon for use in challenging environments in applications requiring identification, location and sensing. Designed with upto 10 years of battery life and encapsulated for IP68 protection, as well as good environmental chemical resistance to moderate concentrations of acids, alcohols, alkalis, detergents and cleaners, the Viking Classic can be deployed in a wide range of general industrial environments.

The Confidex Viking Tough comes with the standard parameters of the Viking Classic, in a more robust housing enabling use in more challenging environments.

The Confidex Viking Slim comes with the standard parameters of the Viking Classic, in a smaller housing for use where space or position requires a more subtle beacon.

Features

  • Good performance both on and off metal upto 200m
  • NFC interface for rapid deployment and configuration
  • IP64, IP68 or IP69K rated encapsulation
  • Upto 10 years of operation, 7-8 years with typical operation (3-4 with the Slim)
  • M5 Mounting Holes
  • Moderate Resistance of a wide range of chemicals

Specifications

ClassicToughSlim
Physical Characteristics

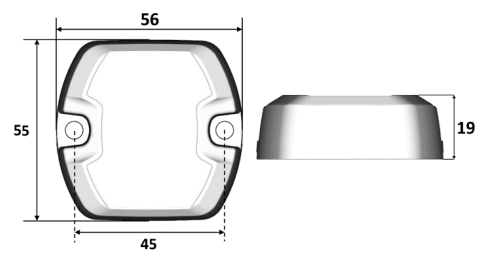

Dimensions55mm x 56m x 19mm55mm x 56m x 21mm74mm x 32m x 14.5mm
45g70g25g
Case MaterialHigh quality PC/ASA
(Fully encapsulated)
Cast Black Polyurethane
(Fully encapsulated)
High quality White (RAL9003) PC/ASA
(Fully encapsulated)
MountingBolt, Screw, Band/Tie, Glue/Adhesive
Environmental Characteristics
Operating Temperature-20áto 60░C
(EN60068-2-14: 2009, Test N: Change of temperature)
-40áto 85░C
(EN60068-2-14: 2009, Test N: Change of temperature)
-20áto 60░C
(EN60068-2-14: 2009, Test N: Change of temperature)
IP ClassificationIP69KIP64
VibrationEN60068-2-6: 2008, Test Fc: Vibration, 10G
EN60068-2-27: 2009, Test Ea: Shock, 20G
EN60068-2-6: 2008, Test Fc: Vibration, 20G
EN60068-2-27: 2009, Test Ea: Shock, 40G
EN60068-2-6: 2008, Test Fc: Vibration, 10G
EN60068-2-27: 2009, Test Ea: Shock, 20G
ESD▒8 kV according to EN 61000-4-2 (air discharge); ▒4 kV according to EN 61000-4-2 (contact discharge)
Chemical ResistanceNo physical or performance changes in:
- 168h Motor oil exposure
- 48h Salt water (salinity 10%) exposure
- 48h Sulfuric acid (10%, pH 2) exposure
- 48h NaOH (10%, pH 13) exposure
Generally good resistance with moderate concentrations of acids, alcohols, alkalis, detergents and cleaners.
(Acetone should be avoided)
Mounting Surface MaterialsAny Surface*
Chip Characteristics
IC TypeNordic Semiconductor NRF52832
Operating Frequency Range2402 - 2480 MHz(ISM)
13.56 MHz (NFC - For configuration with Confidex Runestone App.)
Memory Configuration512 kB FLASH, 64 kB RAM
Read RangeUp to 100 m
CommunicationBluetooth 5.1 + Eddystone support with UID, URL, TLM, iBeacon and Accelerometer
ISO/IEC 14443A (For configuration)
Sensitivity-96 dBm (BLE)
Power2x Encapsulated CR2477 (2000mAh) Coin Cells2x Encapsulated CR2477 (1900mAh) Coin Cells1x Replaceable CR2477 (1000mAh) Coin Cells
Built in Sensor**Built-in Temperature Sensor and hall switch
Optional Accelerometer
Built-in Temperature Sensor
Built-in LED and Hall Switch
Optional Accelerometer
Standards Compliance
Standards ComplianceEurope (CE), UK (UKCA), USA (FCC), Canada (IC), Australia/New Zealand (ACMA), South-Korea (KC), Japan (MIC), Ukraine (UkrSEPRO), Brazil (ANATEL)Europe (CE), UK (UKCA), USA (FCC), Canada (IC)

*Mechanical fixing is recommended to be used in every application that includes risk for high mechanical stress or low temperature during tag fixing. Screw size M5 is to be used for fixing.

** Sensor is located inside the plastic housing, which limits real time measurement of the ambient temperature.
Sensor calibration is available as additional service.
Other sensors may be available on request

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Confidex Viking Classic BLE Tag
CX-3004054
CX-3003858
CX-3003597
CX-3003600
[B] Confidex Viking Classic Starter Kit
CX-3002932 Viking Classic - Starter Kit $93.50 A
[C] Confidex Viking Tough BLE Tag
CX-3003959
CX-3004055
CX-3002662
CX-3003624
[D] Confidex Viking Tough Starter Kit
CX-3003640
[E] Confidex Viking Classic BLE Tag
CX-3003960
CX-3004056
CX-3004057
CX-3004058
[F] Confidex Viking Classic Starter Kit
CX-3004125
