Alien Technology - ALN 9874 Tread Inlay
UHF RFID Inlay

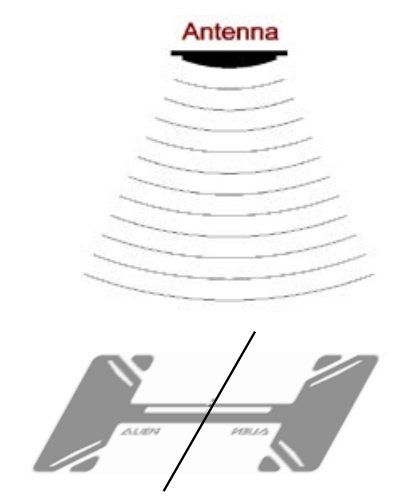

Powered by Alien®’s break-through Higgs™-EC UHF RFID IC and innovative “Tread” antenna design, the ALN-9874 delivers industry leading EPC Gen 2 performance and reliability for automotive tire label and high-dielectric material applications requiring extra-high sensitivity.

With its Higgs-EC core, the “Tread” delivers next generation read and write performance, yet is completely optimized for the highest volume enterprise automotive applications.

An optimized memory footprint includes a 32-bit TID, a 48-bit Unique TID for authentication and next generation serialization applications, a 128-bit EPC memory bank, 128-bits of user memory for distributed data applications, and password protected read and write support capabilities to prevent unauthorised viewing and modification of the tag’s data.

ALN-9874 inlays are World Tag compliant, enabling consistent operation across the diverse frequencies of the Americas, Europe, Middle East, Asia, and Africa.

Features

  • Worldwide operation in all RFID UHF bands(840-960 MHz)
  • Global GS1 Class 2 Gen 2 (V1.2.0) and ISO/IEC 18000-6C compliance
  • 448-Bits of NVRAM Memory
  • Up to 128 EPC bits (96-bits nominal)
  • 128 User Bits
  • 48 Bit Unique TID
  • 32 Bit Access and 32 bit Kill Passwords
  • User Memory can be Block Perma-Locked as well as read password protected in 32 Bit Blocks
  • Class leading read and write performance
  • BlastWrite™ and QuickWrite™ mass-encoding
  • Dynamic Authentication™ - anti-cloning/anticounterfeit technology
  • Exceptional operating range, up to 13m with appropriate antenna
  • Available in high-yield, high capacity dry/wet inlay rolls

Specifications

Physical Characteristics
Dimensions (Wet Inlay)83.2 mm x 43.2 mm
AdhesiveGeneral Purpose Permanent
OverlayTT Printable White Film
Environmental Characteristics
Shelf Life2 Years @ 25°C 40% Relative Humidity (Non-Condensing)
Shelf Storage Limits-25°C to +50°C
20% to 90% Relative Humidity (Non-Condensing)
Application TemperatureGreater Than -4°C
Operating Limits-40°C to +70°C
20% to 90% Relative Humidity (Non-Condensing)
ESD LimitHBM: 5.0kV
CDM: 1.5kV
RFID Characteristics
RF ProtocolGS1 Class 1, Gen 2(ISO 18000-6C)
Operating Frequency Range840 to 960 MHz**
Operating ModePassive
Tag Characteristics
MemoryEPC: Up to 128 bits (96-bits nominal)
User: 128 bits
TID: 32 bits
Unique TID: 48 bits
ICAlien Higgs-EC
Read RangeUpto 11m

     ** (FCC operational range 902-928 MHz, ETSI operational range 865-867 MHz)

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Sample Tags
ALN-9874-WRW-1
[B] Rolls
ALN-9874-WRW
