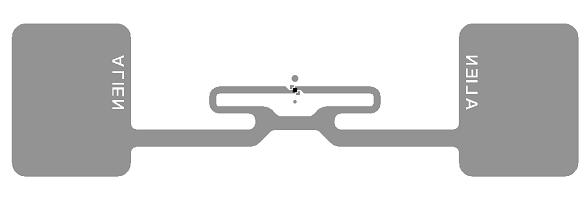

Alien Technology - ALN 9768 Wonder Dog
UHF RFID Inlay


Powered by Alien®’s break-through Higgs™4 UHF RFID IC and innovative “Wonder Dog” antenna design, the ALN-9768 delivers industry leading EPC Gen 2 performance and reliability for general purpose, automotive and consumer electronics tagging applications.

With its Higgs-4 core, the “WD” delivers next generation read and write performance, yet is completely optimized for the highest volume enterprise, retail, and automotive applications.

An optimized memory footprint includes a 32-bit TID, a 64-bit Unique TID for authentication and next generation serialization applications, a 128-bit EPC memory bank, 128-bits of user memory for distributed data applications, and password protected read and write support capabilities to prevent unauthorized viewing and modifi cation of the tag’s data.

ALN-9768 inlays are World Tag compliant, enabling consistent operation across the diverse frequencies of the Americas, Europe, Middle East, Asia, and Africa.

Applications

  • Automotive, wind-shields & head lamps
  • Consumer electronic appliances
  • Set Top Boxes
  • Bottled liquids
  • General Purpose Applications

Specifications

Physical Characteristics
Dimensions86 mm x 23 mm
AdhesiveGeneral Purpose Permanent
OverlayTT Printable White Film
Environmental Characteristics
Shelf Life2 Years @ 25°C 40% Relative Humidity (Non-Condensing)
Shelf Storage Limits-25°C to +50°C
20% to 90% Relative Humidity (Non-Condensing)
Application TemperatureGreater Than -4°C
Operating Limits-40°C to +70°C
20% to 90% Relative Humidity (Non-Condensing)
ESD LimitHBM: 5.0kV
CDM: 1.5kV
RFID Characteristics
RF ProtocolEPC Gen 2(ISO 18000-6C)
Operating Frequency Range840 to 960 MHz
Operating ModePassive
Tag Characteristics
EPC128 bits
ICAlien Higgs-4
Read RangeTBA


Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Sample Tags
9-9740-682-2 ALN-9768-WRW-1 Alien Wonder Dog, White Wet Inlay, Higgs-4, Each $0.44 A
9-9740-681-9 ALN-9768-WRW-TST Alien Wonder Dog, White Wet Inlay, Higgs-4, 1K $363.00 A
[B] Rolls
9-9740-680-3 ALN-9768-WRW Alien Wonder Dog, White Wet Inlay, Higgs-4, 12.5K $3,520.00 A
