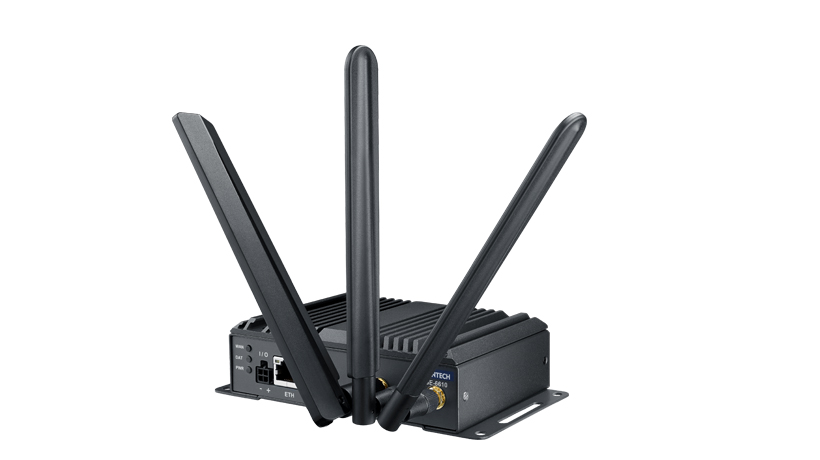

Advantech - Wise 6610 Series
Industrial LoRaWAN Gateway Module


The WISE-6610 is a high-performance LoRaWAN gateway that offers reliable connectivity for industrial environments. It supports the LoRaWAN protocol for building LoRaWAN privateand public networks, as well as various protocols including MQTT. The hardware and software flexibility of the WISE-6610 provides rich features for edge intelligence systems, andits support for VPN tunnelling with various protocols ensures safe communications. The WISE-6610 also provides a network server that can phase the LoRaWAN data in our device.The WISE-6610 provides the redundancy-enhanced functions to prevent connection loss.

Features

  • Long-range wide area IoT gateway
  • LoRaWAN protocol for closed and public system application
  • Ethernet and I/O for connecting a wide array of field assets
  • DIN rail and wall mounting design
  • Low power consumption for solar and battery power applications
  • Enhanced memory for hosting customer software applications
  • Redundancy-enhanced functions for continuous data transmission

Specifications

Industrial LoRaWAN GatewayWISE-6610WISE-6610 LTE
Physical Characteristics
Dimensions37.5 (h) x 150 (w) x 83 (d) mm (Without Antennas)
MountingDIN rail, wall mount
CaseAluminium
Weight500g
SD Card1 x Micro SD Card slot
Environmental Specifications
Operating Temperature-40° to 75°C
Storage Temperature-40° to 85°C
Operating Humidity10 to 95 % (non condensing)
Ingress ProtectionIP30
Cellular Interface
LTE Bit rate-150 Mbps (DL), 50 Mbps (UL)
LTE Bands-B20 (800 MHz), B8 (900 MHz), B3 (1800 MHz), B1 (2100 MHz), B7 (2600 MHz)
SIM Slots-2 x Mini SIMs (2FF)
LTE Antenna Connectors-2 x RP-SMA female connectors
LoRa Connectivity
StandardLoRaWAN or Private LoRa
Frequency Range and Region
Private LoRa:
LoRaWAN:
EU 863-870 (MHz), US 902-928 (MHz), JP 915-928 (MHz)
EU 868, NA 915, JP 923, AS 923
Outdoor Range15Km (L.o.S) by pairing with WISE-6610 (with 2 dBi Antenna)
Data Rate50 kbps at FSK mode (EU868), 21.9 kbps at SF7 mode (US915), 5.47 kbps at SF7 mode (JP923)
TopologyStar
FunctionGateway
Antenna TypeExternal, SMA Male Reverse connector
ConfigurationSSH, Web Browser, through LAN Port
Power
Input9-36V/DC
ConsumptionAverage 3.1W. Peak 6.6W, Sleep 40mW
Connector4-way Molex mini-fit connector
Digital I/O
Input1x Digital Input On Voltage: 2.7V to 36VDC (in Molex Power Connector)
User Feedback
LED IndicatorsPWR, DAT, WAN, ETH
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Advantech Wise 64610 Series Industrial LoRaWAN Gateways
WISE-6610-A100-A WISE-6610 LORAWAN GATEWAY 100 NODES WITH 923 MHZ $1,925.00 C3
WISE-6610-A500-A WISE-6610 LORAWAN GATEWAY 500 NODES WITH 923 MHZ $2,409.00 C3
[B] Advantech Wise 64610 Series Industrial LTE LoRaWAN Gateways
WISE-6610-A100C-A LORAWAN GATEWAY 100 NODES LTE WITH 923 $2,266.00 C3
WISE-6610-A500C-A LORAWAN GATEWAY 500 NODES LTE WITH 923 $2,750.00 C3
[C] Accessories
PWR-242-AE 50 WATTS DIN-RAIL POWER SUPPLY $385.00 C3
