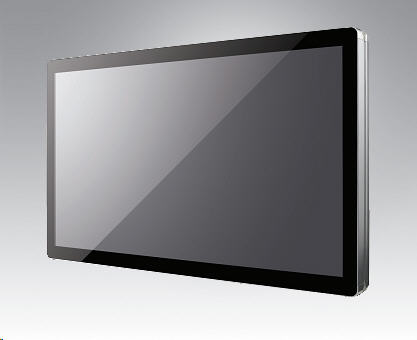

Advantech - UTC-520GT IP65 Series
Touchscreen System


UTC-520GT tough series of industrial quality touch computers feature an all-in-one computing system equipped with wide format, touch based LCD panel. It is easy to integrate key peripherals and display systems for diversified self-service and interactive signage deployment in different application areas. These systems deliver updated information with well-designed interactive interfaces to fully ensure that relevant content and targeted promotions are delivered. UTC series touch panel computers are the best investment to enhance user satisfaction, further brand equity, and maximize business profits.

Features

  • Low power fanless design
  • Wide operating temperature range
  • Built-in Intel Pentium N4200 Processor
  • 21.5" widescreen display
  • IP65-rated for full system
  • M12 connectors for all I/O ports
  • Supports both landscape and portrait screen orientation
  • Anti-corrosion stainless steel enclosure
  • Optional quick swap storage slot
  • Optional waterproof Wifi
  • Build in camera
Specifications
  UTC-520GT
Physical Characteristics
Width 540 mm
Height 336 mm
Depth 704 mm
Weight 8 Kg
Mounting 100mm VESA
Environmental Characteristics
Operating Temperature -10 to 50°C
Humidity 10 to 95% @ 40°C Non-Condensing
Vibration 0.5G
Shock 5G peak acceleration (11msec. duration)
Ingress ProtectionIP65 Full System
Electrical
Power Input 12-32V/DC
Power Consumption 40W Typical, 50W Max.
System Configuration
CPU IntelŪ Pentium N4200, 1.1GHz
System Chipset Intel
Cache 2MB L2
Memory 1 x SO-DIMM DDR3L 1867 MHz up to 8 GB
Display 21-5" TFT LCD 1920 x 180, 250 cd/m2 or optional 400 or 1200cd/m2, 16.7M Colour
View Angle 178° / 178°
Touch Panel Options Projected Capacitive Glass Panel (7H Hardness, Optional: AR/AG/Vandal Proof
HDD 1 x 2.5 internal SATA HDD bay
I/O Ports
Serial2 x RS-232 COM (RS422/485 Optional Function)
USB2x USB 2.0, 1x USB 3.0
Network2x RJ45 Gigabit Ethernet (M12 Waterproof Connector)
ExpansionFull-size MiniPCIe/M.2
Software
Operating System SupportWindows XP
Windows XP Embedded
Windows 7 Embedded
Windows 8 Embedded
Linux Ubuntu 18.04
Mountable Options
CameraCamera Module, Front Facing
Light Sensor with LED Indicator
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] UTC-520GT Series Touch Computer
UTC-520GR-ATB0E UTC-520-IP65 21.5 RES.T/S WITH PENTIUM N4200, 4GB R $3,267.00 C3
VESA Mount Brackets
