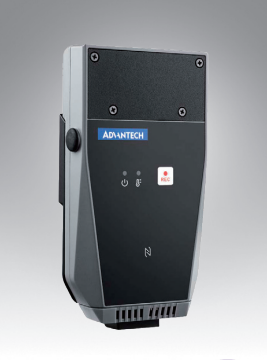

Advantech - TREK-120
LoRa-Based Cold Chain Temperature and Humidity Logger


The Advantech TREK-120 is a LoRa based temperature and humidity sensor designed for simple installation into refrigerated environments, such as delivery trucks, for the measurement and logging of important data in that specific environment. Configurable for a number of different conditions, such as minimum or maximum levels, logging upto 5000 readings, the TREK-120 can also trigger alerts as needed.

Powered by a long lasting battery and with LoRaWAN connect capability the TREK-120 is able to be installed simply and operate autonomously with connection to IoT Cloud Services for near real time exception management and monitoring.

Features

  • Temperature and Humidity Sensing and Logging
  • Simple installation
  • Long life Battery (Upto 3 years)
  • IP65 rated for protection and long life
  • LoRaWAN technology for long-range wireless communication
  • Supports connection to IoT Cloud Services for near real time monitoring and management

Specifications

Physical Characteristics
Dimensions123.5 mm (w) x 65 mm (d) x 24.5 mm (h)
Mounting OptionsFixed by adhesive tape, magnet, fastener, screws
Weight108g
Environmental Characteristics
Operating Temperature-40C to +70C
Storage Temperature-40C to +85C
Relative Humidity0% to 100% RH
Ingress ProtectionIP65
Drop Tolerance1.2m to concrete
Power
Battery3V/2400mAh wide-temperature primary replaceable battery
Battery LifeUpto 36 Months (Dependent on usage)
Power On/OffPower Button
Sensor Characteristics
Range and Accuracy
Temperature:
Humidity:

0.2C from 0~90C, 0.3C from -30~0C
2% 0-100% @25C
Resolution
Temperature:
Humidity:

0.01C
0.01%
Wireless Characteristics
TechnologyLoRaWAN
915-928 MHz (AU)
Upto 500m Range, line of sight
Star Topology
NFC13.56MHz, Bulk Log Download, Configuration
Data Storage
Log5000 Readings
Certifications
SafetyCE, FCC, NCC
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Advantech TREK-120 LoRaWAN Temperature and Humidity Logger
TREK-BNLUSA0
[B] Accessories
TREK-120-G2BATT TREK-120 G2 BATTERY 10 PCS $418.00 A
