Advantech - BB-JC Series
Clamp On Current Sensors

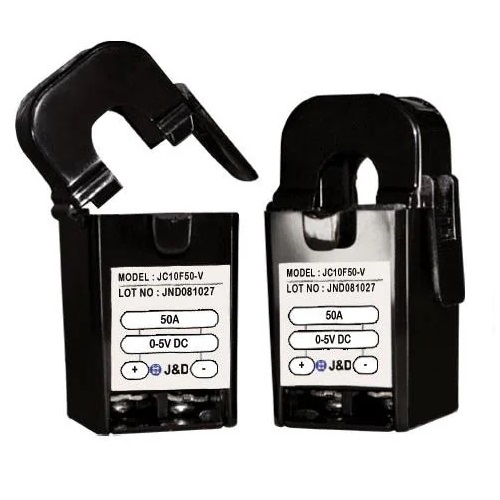

The Advantech BB-JC Series are split core current transducers designed for energy management. Each features a convenient clamp-on connection for electronic sub-metering and can be used for current measurement. The BB-JC series can be applied in a system of distributed power line carriers (PLCs) or for remote automation and supervision.

Features

  • 10mm clamp-on sensing aperture
  • Senses short circuits and motor stalls
  • Connects directly to PLCs
  • Phased-fired control
  • UL, SCA, CE, RoHS

Specifications

ModelBB-JC10F50-VBB-JC24S250-VBB-JC36S500-V
Physical Characteristics
Dimensions 26 x 23 x 50 mm 34 x 45 x 74.5 mm 40.5 x 57 x 91 mm
Weight 45g 200g 290g
Environmental Characteristics
Operating Temperature -20C to +50C
Storage Temperature -30C to +90C
Sensor Characteristics
Output Voltage0~5V DC, 7.5V DC limiter built-in
Current Range 50 Arms 250 Arms 500 Arms
Dielectric Strength AC 2000V / 1 min. (between core and output terminals)
Sensing Aperture 10mm (clamp-on type)
Output Terminals 2 x M3-screw with terminal covers


Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Advantech BB-JC Split-core Current Sensors
BB-JC10F50-V 50A CLAMP ON CURRENT SENSOR $165.00 C3
BB-JC24S250-V 250A CLAMP ON CURRENT SENSOR $275.00 C3
BB-JC36S500-V 500A CLAMP ON CURRENT SENSOR $319.00 C3
