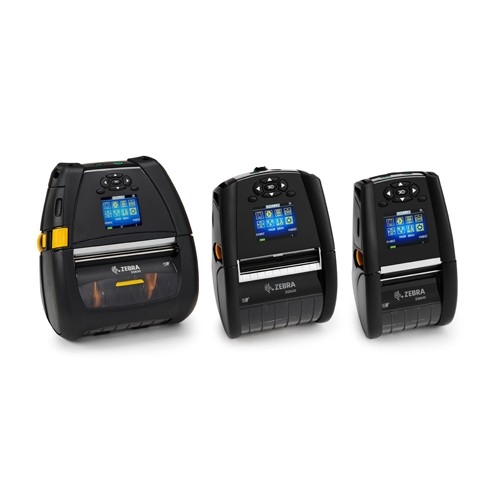

Zebra - ZQ600 Series
Portable Wireless Label Printers with Optional RFID


The ZQ600 Series takes Zebra’s popular QLn platform and makes it even better — adding advanced technology and innovative design that drive productivity, ease-of-use and manageability to a new level. A large colour display takes all the guesswork out of printer status. Advanced battery technology and more battery capacity, power every minute of the longest shift. The instant wake-up feature ensures the ZQ600 Series never sleeps on the job. Your workers get the fastest, most dependable wireless connections inside the four walls and your IT department will find the ZQ600 Series easier to integrate, manage, setup and secure thanks to Zebra’s Link-OS® operating system and powerful Print DNA suite of applications, utilities and developer tools.

While the ZQ600 Series is lightweight and comfortable to wear all shift long, it is loaded with features that give it long-lasting durability, including over-molding, a tempered-glass display and seamless one- piece design. The high-grade resin is one of the toughest plastics available for greater impact resistance. And multiple mechanical design improvements further increase printer robustness and uptime.

The ZQ630 RFID rounds out Zebra’s ZQ600 Series printers with added advanced technology and innovative design that drive productivity, ease-of-use and manageability to a new level. Save time, reduce errors, print and encode RFID labels and tags on the spot with ease.

Features

  • The Highest Capacity Battery in its Class with Zebra’s PowerPrecision Technology
  • Instant Wake-up Over Wi-Fi
  • Large Colour Display
  • Continued Reliability with Printhead Diagnostics
  • Zebra Print DNA
  • Robust Memory to Support Application
  • Optional RFID with the ZQ630
  • 12 Month Return to Base Warranty with Extended Warranty Options Available

Specifications

 ZQ610ZQ620ZQ630ZQ630-RFID
 Physical Characteristics
Width89 mm117 mm165 mm
Height165 mm173 mm187 mm
Depth70 mm84 mm82.5 mm
Weight (With Battery)600g(with standard battery)730g(with standard battery)1100g(with battery)
 Environmental Specifications
Operating Temperature-20°C to 50°C
Storage Temperature-25°C to 65°C
Operating Humidity10% to 90% (Non-Condensing)
Storage Humidity10% to 90% (Non-Condensing)
Rain & Dust ResistanceIP43 (IP54 with soft case)
Drop Spec1.5m to concrete1.8m to concrete
 Power
Battery Type7.2 LiIon7.2 LiIon14.8 LiIon
Battery Capacity3250mAh Standard, or 4900mAh Extended6800mAh
Recharge Time240 minutes
 Printer Mechanism
Resolution203dpi (8 dots/mm)
PrintheadDirect Thermal
Print SpeedUpto 115mm/sec
Print Width48mm72mm104mm
 Controller
Programming EnvironmentZebra Link-OS with Print DNA, ZPL, EPL, CPCL
Memory256MB RAM, 512MB Flash
User InterfaceLarge Colour Display with 5-way navigation buttons and two software defined keys
 Fonts
Resident25 bitmapped25 bitmapped, 1 smooth scalable
DownloadableYes
GraphicsSupports user-deined fonts, graphics, formats and layouts, including custom logos
Barcode SymbologiesAll major 1D and 2D symbologies are supported.
 Media Specifications
Media TypeThermal Paper, one ply
Paper Width25mm to 55.4mm25mm to 79mm51mm to 112mm
Roll Diameter56 mm66 mm
Core Inner Diameter19 mm or 34.9mm
RFID-Supports UHF EPC Gen 2 V2, ISO/IEC 18000-63 andRAIN RFID protocols
 Interface
StandardRS232C, USB
OptionalBluetooth 4.1, IEEE 802.11ac WiFi
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Zebra ZQ630 Portable 4" Label Printer with Battery
ZQ63-AAFAA00-00
ZQ63-AAWAA00-00
ZQ63-RAWAA00-00
[B] Zebra ZQ620 Portable 3" Label Printer with Battery
ZQ62-AAFAA00-00 ZEBRA MOB ZQ620 3INCH BT4 $1,606.00 C3
ZQ62-AAWAA00-00
[C] Zebra ZQ610 Portable 2" Label Printer with Battery
ZQ61-AAFAA00-00
ZQ61-AAWAA00-00
[D] ZQ600 Series Accessories
AC Charge Adaptor for ZQ600 Series
P1031365-043 ZEBRA MOBILE AC CHARGER ZQ6/ZQ5/QLN $107.80 C3
Extended Capacity Battery for ZQ610 and ZQ620
P1031365-069
Standard Capacity Battery for ZQ610 and ZQ620 - 1 supplied with printer
BTRY-MPP-34MA1-01 ZEBRA BATTERY 3250MAH QLN/ZQ610/620/ZQ500 SERIES $185.90 C3
Standard Capacity Battery for ZQ630 - 1 supplied with printer
BTRY-MPP-68MA1-01 ZEBRA BATTERY 6800MAH ZQ630/QLN420 $262.90 C3
Extended Capacity Battery for ZQ610 and ZQ620
P1031365-069
1 Slot Battery Charger - Works with standard and extended battery packs, Integrated power supply.
SAC-MPP-1BCHGAU1-01 ZEBRA DOCK BATTERY 1-BAY QLN/ZQ500/ZQ600 ANZ $191.40 C2
3 Slot Battery Charger - Works with standard and extended battery packs, Integrated power supply.
SAC-MPP-3BCHGAU1-01 ZEBRA MULTIDOCK KIT BATTERY 3-BAY QLN/ZQ500/ZQ600 $478.50 C2
ZQ630 Battery Eliminator for vehicles - Includes dummy battery pack and 15-60V DC/DC power supply
P1050667-140 ZEBRA BATTERY ELIMINATOR QLN420/ZQ630 $423.50 C3
ZQ630 Vehicle Charging Cradle - Includes 15-60V DC/DC power supply
P105667-026
Soft Case for ZQ600 Series
P1031365-044
P1031365-029
P1031367-017
Hard Case with metal belt clip for ZQ630
P1050667-034 ZEBRA HARD CASE INC/BELT CLIP FOR QLN420 $135.30 C3
Shoulder Strap for ZQ600 Series
P1031365-192 ZEBRA SHOULDER STRAP QLN220/QLN320/QLN420 $27.50 C3
8"Hand Strap for ZQ600 Series
P1031365-027 ZEBRA HANDSTRAP QLN220/QLN320/QLN420 $41.80 C3
Duarable Waist Strap for ZQ630
SG-MPP-Q4H-ST1-01
Spare Belt Clip for ZQ600 Series
P1031365-028
Other options available on request
[E] Labels
L100x150D0-CA95 L100x150D0 Label, 100x150mm, Direct Thermal/Permanant, Wound Out/Perf, 18mm Core /60mm DMax, 95 Labels/Roll, Box of 12 Rolls $88.00 A2
