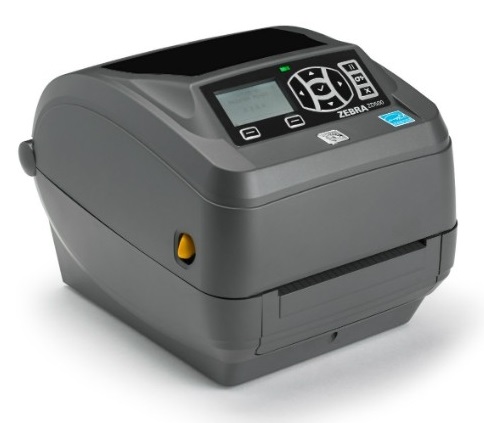

Zebra - ZD500 Series
RFID Bar Code Label Printer


The Zebra ZD500R builds on the field-proven reliability of the Z Series™ with advancements in print speed, print quality and connectivity, providing UHF RFID Printing and Encoding Capability as well as all of the benefits of the Link-OS Environment.

Available in both Direct Thermal and Thermal Transfer Models the ZDR500 is compatible with RFID Tag inlays from all leading manufacturers. It can be used with a variety of RFID labels and Tags from small, item-level hang tags to large case and pallet labels. Reduce media costs, waste and time as the ZD500R encodes RFID inlays that are spaced closely together.

To meet changing expectations and growing demands in mobile and cloud connected environments Zebra created the Link-OS environment for easy integration, management and maintenance.

Able to handle the most demanding applications the ZD500R features Parallel, Serial, USB and Ethernet connectivity, large memory and the Zebra ZPL printing language. Available options include cutter and peeler, Bluetooth and WiFi and 300dpi printing.

Features:

  • Direct Thermal & Thermal Transfer printing models
  • Tear-off or label peel; tickets or tags in rolls or fan-folded
  • Rugged and Reliable
  • Tool-less printhead and platen replacement
  • Link-OS enabled
  • Real Time Clock
  • LCD User Interface
  • Adaptive RFID Encoding Technology
  • 12 month Warranty with Extension options

Specifications

Physical Characteristics
Length
254mm
Height
191mm
Width
193mm
Weight
2.2kg
Environmental Characteristics
Operating Temperature
5°C to 40°C
Storage Temperature
-40°C to 60°C
Operating Humidity
10% to 90% non-condensing
Storage Humidity
5% to 95% non-condensing
Print Speed
Maximum
152mm/s (203dpi), 102mm/s (300dpi)
Media Specifications
Label Width
19mm to 108 mm
Maximum Print Length
991mm
Media Types
Roll-Fed or Fan Fed; Die-Cut or Continuous; Gap, Black Mark or Notch
Label Roll Diameter (maximum)
127 mm (5.0")
Label Core Diameter
12mm (0.5"), 25.4mm (1"), 38mm (1.5"), 76 mm (3.0")
Ribbon Width
33.8mm to 110 mm (1.3"- 4.33")
Label Core Diameter
12.7 mm (0.5")
Print Specifications
Width (maximum)
104 mm (4.09")
Print Resolution
8 dots/mm (203 dpi or 12 dots/mm (300 dpi)
Memory
Standard
256MB On-Board Flash
128MB SDRAM
Time
Clock
Internal RTC (Real Time Clock) Option
Barcodes
1 Dimensional
All major Bar Code Symbologies
2 Dimensional
Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, Aztec
Fonts
16 resident expandable ZPL II bitmap fonts
2 resident scaleable ZPL fonts
Interface's
Standard
Parallel, Serial, USB, Ethernet
Optional
802.11ac (WiFi) and Bluetooth 3.0,
RFID Encoder
UHF
UHF Gen 2 V2, ISO/IEC 18000-63, Rain RFID Protocols

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] RFID Printers
203 DPI
ZD50042-T0P3R2FZ ZD500R-203 ZEBRA ZD500R D/TOP 203DPI T/T MULTI WIFI RFID $3,531.00 C3
ZD50042-T1E2R2FZ ZD500R-203-PEEL ZEBRA ZD500R D/TOP 203DPI TT MULTI PEEL RFID EU/UK $3,190.00 C3
300 DPI
ZD50043-T2E2R2FZ ZD500R-300-CUT ZEBRA ZD500R D/TOP 300DPI T/T MULTI CUT RFID UK $3,608.00 C3
ZD50043-T063R2FZ ZD500R-300 ZEBRA ZD500R D/TOP 300DPI T/T MULTI WIFI/BT RFID $3,685.00 C3
[B] Non-RFID Printers
ZD50042-T06C00FZ ZEBRA ZD500 D/TOP 200DPI T/SFER MULTI WIFI $1,529.00 C3
ZD50043-T06C00FZ ZEBRA ZD500 D/TOP 300DPI T/SFER MULTI WIFI $1,650.00 C3
[C] Service Contracts
Z1AS-ZD50-3C0 ZEBRA ONECARE SELECT ZD500X 3YR COMP $313.50 V
[D] Consumables
05095GS11007 R110x74R-5095GS ZEBRA RIBBON RESIN 110 X 74 FOR DESKTOP 5095 $26.40 A2
