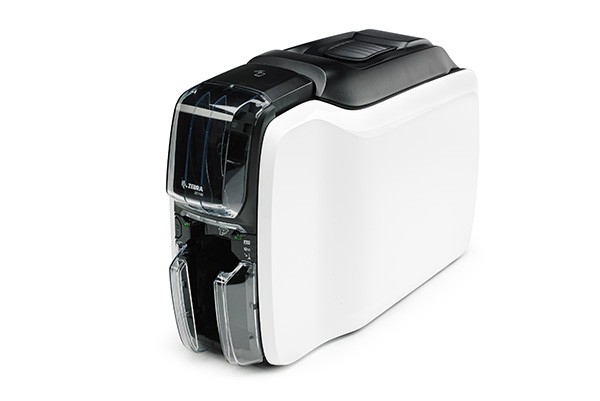

Zebra - ZC100
Card Printer


The Zebra ZC100 card printer is the next generation of simplicity and security, in a package designed to fit neatly into any tight work space, so that it can be deployed almost anywhere a need is identified.

Whether you need to print single-sided employee identity badges or membership and event guest cards, card printing is a crucial aspect of your business. Deployment flexibility and the time it takes to print and manage your card printing solutions all have an impact on your business — from your brand image to staff productivity, overall operational efficiency and operating costs. Now, with the ZC100, you get ground breaking simple operation, the slimmest fit-everywhere design, along with a toolbox of additional capabilities that make the ZC100 even easier to integrate, use and manage.

  • Black, Single colour or Multi colour printing
  • Compact footprint
  • Excellent print quality with vibrant colour
  • 300 dpi printing
  • Auto thickness adjust
  • Easy card loading
  • Single sided printing only
  • Optional Magnetic Stripe Encoder or Smart Card Writer
  • Outstanding reliability
  • Print DNA support for Zebra Link-OS for Card Printers
  • 2 Year Unlimited Warranty on Printer and Original Printhead

Specifications

Physical Characteristics
Dimensions157 (w) x 383 (d) x 258 (h) mm
Weight3.9 Kg
Environmental Characteristics
Operating Temperature15 to 35°C
Media Storage Temperature5 to 25°C
Operating Humidity20 to 80% non-condensing
Media Storage Humidity35 to 65% non-condensing
Printer Characteristics
Print methodDye Sublimation Thermal Transfer Direct to Card
Copy capacityOne Original, Edge to Edge
Card Specifications
TypeAll PVC and Composite PVC Cards
Media FormatCR-80 ISO 7810 ID-1 (53.98 x 85.6 mm)
CR79(52.09 x 83.90 mm)
Thickness10-40 mil (0.25-1.02mm)
In Hopper Capacity100 Cards
Out Hopper Capacity100 30 mil Cards
Interfaces
StandardUSB
Optional10/100 Ethernet, 802.11ac
Print speed
CMYKO Colour150 cards per hour
Mono700 cards per hour
Resolution
Dots Per Inch300
Power
Input220 - 240V/AC 50/60Hz
Options
Card EncodersMagnetic-stripe encoder–ISO 7811
Third party contactless encoder integration kit (ZIP Pocket)
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Zebra ZC100 Card Printer
Ethernet Interface
ZC11-000C000AU00 ZC100 ZEBRA CARD PRINTER ZC100 SINGLE USB/ETH ANZ $2,607.00 C1
[B] Accessories
[C] Consumables
Ribbons
800300-252AU ZEBRA RIBBON COLOUR YMCKO 300/IMG ZC300 ANZ $156.20 A2
Cards
104523-111 IDC-CR80-076-WH/500 ZEBRA CARDS PVC 30MIL PLAIN 500/BOX WHI $97.90 A2
104523-113 IDC-CR80-076-HICO-WH/500 ZEBRA CARDS PVC 30MIL HICO 500/BOX WHI $174.90 A2
104523-215 IDC-CR80-038-WH/500 ZEBRA CARDS PVC 15MIL PLAIN 500/BOX WHI $90.20 A2
Cleaning Kits
105999-311 ZEBRA CLEANING CARD KIT ZC100/300 5 CARDS $58.30 C3
[D] Support Contracts
Z1BE-ZC1X-1C0 ZEBRA ONECARE ESSENTIAL PRE-OWNED ZC100 1YR COMP $161.70 V
Z1BE-ZC1X-3C0 ZEBRA ONECARE ESSENTIAL PRE-OWNED ZC100 3YR COMP $482.90 V
