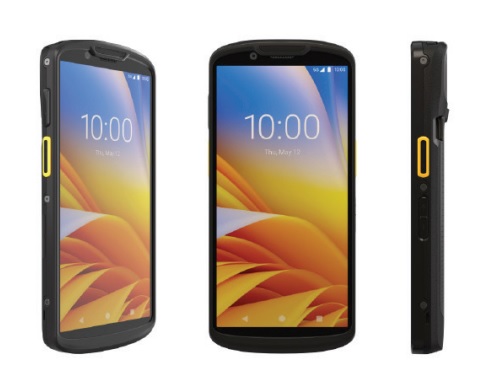

Zebra - TC53/TC58 Series
Mobile Touch Computer
 |
The Zebra WiFi only TC53 and Cellular capable TC58 are the first members of a new generation of Zebra mobile computers designed to do more. With new hardware redefining performance and new solutions, sensors and technologies to redefine the world of possibilities. Using the latest wireless technology to provide workers with faster and more reliable access to the information they need to get the job done. A class leading 6-inch screen allows workers to see more, do more, and scroll less. Zebra's Mobility DNA tools deliver a built-in advantage, maximising user productivity while minimising IT complexities throughout the entire life cycle. New manufacturing capabilities make the TC53 and TC58 thinner and yet more rugged. Features
|
|---|
Specifications
| Physical Characteristics | |
|---|---|
| Length | 164.8mm |
| Width | 77.35mm |
| Depth | 16.75mm |
| Weight | 293g (With Standard Battery) |
| Environmental Characteristics | |
| Operating Temperature | -20șC to +50șC |
| Storage Temperature | -40șC to +70șC |
| Relative Humidity | 5% to 95% (non-condensing) |
| Drop Spec | 1.5m to concrete above -10șC (1.8m to concrete with protective boot) |
| Tumble Spec | 1000 500mm tumbles |
| Sealing | IP65 or IP68 Options |
| Electrostatic Discharge (ESD) | ±15kV Air Discharge, ±8kV Direct Discharge, ±8kV Indirect Discharge |
| Software | |
| Operating System | Upgradable to Android 16 |
| Hardware | |
| Microprocessor | Qualcomm 6490 Octa-core 2.7GHz |
| RAM | 4GB & 8GB Options |
| Flash ROM | 64GB & 128GB Options |
| Expansion Slot | User accessible MicroSD supports upto 2TB |
| Power | |
| Battery Type | Rechargeable Lithium Ion Battery |
| Battery capacity: | Standard: 4400 mAh Extended: 6600 mAh BLE Battery: 4400 mAh QI Compatible Wireless: 4400 mAh Warm Swap and Hot Swap Options |
| Display | |
| Size | 6.0" (152mm), High Definition (1080 x 2160), outdoor viewable (600 NITS) |
| TouchScreen | Multi Mode Capacitive Input with stylus, finger and gloved fingertip input With Gorilla Glass and Water Droplet Rejection |
| Communications/Interfaces | |
| Keypad | On-screen |
| Barcode Scanner | SE4720 Standard Range Imager, or SE55 Advanced Range Imager |
| Camera | Rear 16MP Autofocus with LED Flash and 8MP Front |
| WWAN (TC58 Only) | Supports 5G, 4G, 3G & 2G |
| WLAN | IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax; 2X2 MU-MIMO Wi-Fi 6E (802.11ax) certified; IPv4, IPv6, Dual Band Simultaneous |
| GPS | TC58 Only: Integrated Autonomous Concurrent GPS; GLONASS; Galileo; BeiDou; QZSS Dual-Band GNSS - Concurrent + L5/E5a/BDSB2a; A-GPS; Supports XTRA |
| Bluetooth | Class 2, Bluetooth v5.2; Secondary Bluetooth Low Energy (BLE) for beaconing within BLE Battery |
| NFC | ISO 14443 Type A and B; F; FeliCa and ISO 15693 cards; Card Emulation via Host; Contactless Payment Support, ECP 1.0 and ECP 2.0 poling support, Apple VAS certified |
| Part Number | Model Number | Description | RRP Inc GST |
T % |
|---|---|---|---|---|
| [A] Zebra TC53 - Wifi Only | ||||
| TC5301-0T1K4B1000-A6 | ZEBRA PDT TC53 2D-AR 4/64 WLAN AD/GMS | $3,300.00 | C2 | |
| TC5301-0T1K6B1000-A6 | ZEBRA PDT TC53 2D-AR 8/128 WLAN AD/GMS | $3,729.00 | C2 | |
| TC5301-0T1K7B1000-A6 | ZEBRA PDT TC53 2D-AR 8/64 WLAN AD/GMS | $3,509.00 | C2 | |
| TC5301-0T1K6E200A-A6 | ZEBRA PDT TC53-PREM 2D-AR 8/128 WLAN AD/GMS | $4,290.00 | C2 | |
| TC5301-0T1E4B1000-A6 | ZEBRA PDT TC53 2D-SR 4/64 WLAN AD/GMS | $3,179.00 | C2 | |
| [B] Zebra TC58 - Wifi and 5G | ||||
| TC58B1-3T1E4B1080-A6 | ZEBRA PDT TC58 2D-SR 4/64 5G AD/GMS | $3,454.00 | C2 | |
| TC58B1-3T1K4B1080-A6 | ZEBRA PDT TC58 2D-AR 4/64 5G AD/GMS | $3,575.00 | C2 | |
| TC58B1-3T1K7B1080-A6 | ZEBRA PDT TC58 2D-AR 8/64 5G AD/GMS | $3,784.00 | C2 | |
| TC58B1-3T1K6B1080-A6 | ZEBRA PDT TC58 2D-AR 8/128 5G AD/GMS | $4,004.00 | C2 | |
| TC58B1-3T1E6B1080-A6 | ZEBRA PDT TC58 2D-SR 8/128 5G AD/GMS | $3,872.00 | C2 | |
| TC58B1-3T1K6E2A8A-A6 | ZEBRA PDT TC58-PREM 2D-AR 8/128 5G AD/GMS | $4,565.00 | C2 | |
| [C] Charging Options | ||||
| Single Dock Kit - Charge Only | ||||
| CRD-NGTC5-2SE1B | ZEBRA DOCK KIT ETH+BATT 1-BAY TC53/TC58 | $627.00 | C2 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| Single Dock Kit - USB/Charge | ||||
| CRD-NGTC5-2SE1B | ZEBRA DOCK KIT ETH+BATT 1-BAY TC53/TC58 | $627.00 | C2 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| 25-124330-01R | ZEBRA CABLE DATA MICRO USB | $16.50 | C2 | |
| Single USB Dock Ethernet Module | ||||
| MOD-MT2-EU1-01 | ZEBRA USB TO ETH MODULE FOR CRADLES | $166.10 | C2 | |
| Workstation Connect Cradle | ||||
| CRD-NTC5X-1SNWS-01 | ZEBRA DOCK CHARGE/WORKSTATION 1-BAY TC53/TC58 | $902.00 | C2 | |
| PWRBGA12V50W0WW | ||||
| CBL-DC-388A2-01 | ZEBRA DC LINE CORD FOR SINGLE LEVEL VI PSU | $22.00 | C2 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| Point of Sale Connect Cradle | ||||
| CRD-NTC5X-1SNHP-01 | ZEBRA DOCK CHARGE/POS 1-BAY TC53/TC58 | $1,089.00 | C2 | |
| PWRBGA24V150W1WW | ||||
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| 5-Slot Charge Dock Kit | ||||
| CRD-NGTC5-5SC5D | ZEBRA MULTIDOCK KIT CHARGE ONLY 5-BAY TC53/TC58 | $1,639.00 | C2 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| 4-Slot Charge Dock Kit with 4-slot Battery charge slots | ||||
| CRD-NGTC5-5SC4B | ZEBRA MULTIDOCK KIT CHARGE+BATT 4-BAY TC53/TC58 | $1,639.00 | C2 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| 5-Slot Ethernet Charge Dock Kit | ||||
| CRD-NGTC5-5SE5D | ZEBRA MULTIDOCK KIT CHARGE/ETH 5-BAY TC53/TC58 | $1,903.00 | C2 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| [D] Battery | ||||
| BTRY-NGTC5TC7-44MA-01 | ZEBRA BATTERY STANDARD 4400MAH 1/PK TC53/TC58 | $198.00 | C3 | |
| BTRY-NGTC5TC7-44MA-10 | ZEBRA BATTERY STANDARD 4680MAH 10/PK FOR TC53/TC58 | $1,936.00 | C3 | |
| BTRY-NGTC5TC7-44MABLE-01 | ZEBRA BATTERY 4400MAH BLE TC53/TC58 | $231.00 | C3 | |
| BTRY-NGTC5TC7-44MAWC-01 | ZEBRA BATTERY 4680MAH WIRELESS TC58 | $242.00 | C3 | |
| BTRY-NGTC5TC7-66MA-01 | ZEBRA BATTERY EXTENDED 7000MAH TC53/TC58 | $275.00 | C3 | |
| [E] Accessories | ||||
| TRG-NGTC5-ELEC-01 | ZEBRA SCAN HANDLE TC53/TC58 REQ-BOOT V2 | $462.00 | C2 | |
| ADP-RFD40-TC5X-2E | ZEBRA RFD40 SLED ADAPTOR FOR TC53/TC58 | $110.00 | C2 | |
| SG-NGTC5TC7-HLSTR-01 | ZEBRA HOLSTER SOFT TC53/TC58 | $165.00 | C2 | |
| SG-NGTC5EXO1-01 | ZEBRA RUBBER BOOT TC53/TC58 | $99.00 | C2 | |
| SG-NGTC5-WMADP1-01 | ZEBRA WRIST MOUNT ADAPTER 191MM BLK FOR TC53/TC58 | $363.00 | C2 | |
| SG-NGTC5-WMADP1-02 | ZEBRA WRIST MOUNT ADAPTER 265MM BLK FOR TC53/TC58 | $363.00 | C2 | |
| SG-NGWT-CMPD-02 | ZEBRA COMFORT PAD WT6000 FOR WRIST MOUNT | $30.80 | C2 | |
| SG-NGWT-WSTPST-01 | ZEBRA WRIST STRAP SMALL/MEDIUM WT6000 | $114.40 | C2 | |
| SG-NGWT-WSTPLN-01 | ZEBRA WRIST STRAP MEDIUM/LARGE WT6000 | $114.40 | C2 | |
| SG-NGWT-WSTPXL-01 | ZEBRA WRIST STRAP EXTRA LARGE WT6000 | $145.20 | C2 | |
| SG-WT4027050-01R | ZEBRA ARM SLEEVE WT41XX 5 PK | $55.00 | C2 | |
| SG-NGTC5TC7-HDSTP-01 | ZEBRA HANDSTRAP TC53/TC58 1PK | $55.00 | C2 | |
| SG-PD40-WLD1-01 | ZEBRA WRIST STRAP MC40/PD40 | $17.60 | C2 | |
| The Vehicle cradle options can be configured in a number of different ways and can work with a number of different cables and accessories. Contact UMD Sales for a configuration suitable to your application. | ||||
| [F] Extended Maintenance | ||||
| Z1AE-TC53XX-3C00 | ZEBRA ONECARE ESSENTIAL TC53XX 3YR COMP | $612.70 | V | |
| Z1AE-TC53XX-3C03 | ZEBRA ONECARE ESSENTIAL TC53XX 3YR COMP+COMM+DASH | $730.40 | V | |
| Z1AE-TC53XX-5C00 | ZEBRA ONECARE ESSENTIAL TC53XX 5YR COMP | $1,001.00 | V | |
| Z1AE-TC53XX-5C03 | ZEBRA ONECARE ESSENTIAL TC53XX 5YR COMP+COMM+DASH | $1,199.00 | V | |
