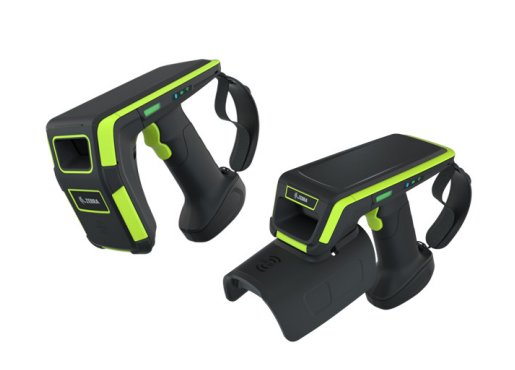

Zebra - RFD90
Portable UHF RFID Reader
 |
The Zebra RFD90 Ultra-Rugged UHF RFID Sleds bring industry-leading RFID technology to Zebra and compatible third-party mobile devices, tablets and smart phones with industrial-class UHF RFID and 2D bar code scanning technology, whenever and wherever you need it. Built for harsh conditions, tested for 6-foot (1.8-meter) drops to concrete and sealed to industrial-grade dual IP65 and IP67 ratings. Both the standard-range RFD9030 Sled and long-range RFD9090 Sled provide industry-leading read rates of 1,300 tags per second, an ultra-accurate item-finder mode, a tri-function user programmable trigger and Wi-Fi 6 capability for easy device management. Changeable eConnex adaptors and charging cradles support rugged Zebra mobile computers, while integrated Bluetooth 5.3 connectivity supports third-party smartphones. Today’s manufacturing, transportation and logistics operations are under pressure to deliver higher volumes at greater speeds, while struggling with unpredictable supply chains and labour pools. Fast, accurate RFID solutions can make a critical difference in even the most demanding environments. Zebra’s RFD90 Ultra-Rugged UHF RFID Sleds are engineered and built to meet the demands of today's manufacturing, transportation and logistics environments. Features
|
|---|
Specifications
| RFD9030 with SE4750MR | RFD9030 with SE4850 | RFD9090 with SE4750MR | RFD9090 with SE4850 | |
|---|---|---|---|---|
| Physical Characteristics | ||||
| Height | 173mm | 173mm | ||
| Width | 83.4mm | 96.3mm | ||
| Length | 189mm | 248mm | ||
| Weight | 714g | 751g | 759g | 799g |
| Environmental Specifications | ||||
| Operating Temperature | -20°C to 55°C | |||
| Storage Temperature | -40°C to 70°C | |||
| Humidity | 5 to 85% Non-Condensing | |||
| Drop Spec. | 1.8m drop to concrete | |||
| Tumble Spec. | 500 cycles (1,000 drops, 1.6 ft./0.5 m) at room temperature | |||
| Electrostatic Discharge | ±15 kV air discharge, ±8 kV direct discharge, ±8 kVdc indirect discharge | |||
| Sealing | IP65 (spray) and IP67 (submersion) | |||
| Power | ||||
| Battery Type | LiIon, Quick-Release, PowerPrecision+ | |||
| Battery Capacity | 7000mAh | |||
| RFID Reader | ||||
| Frequency | UHF EPC Class 1 Gen 2; EPC Gen2 V2 | |||
| Antenna | Circular | Linear | ||
| Nominal Read Range | 6.7m | 22.9m | ||
| Fastest Read Rate | 1300 tags/second | |||
| Barcode Reader | ||||
| Sensor Resolution | 1280 x 800 Pixels | |||
| Field of View | 31° horizontal, 23° vertical | Far Reading: 12° horizontal, 7.6° vertical Near Reading: 32° horizontal, 20° vertical | 31° horizontal, 23° vertical | Far Reading: 12° horizontal, 7.6° vertical Near Reading: 32° horizontal, 20° vertical |
| Pitch and Skew Tolerance | ±60° | |||
| Focal Distance | 361mm | Far Reading: 381 - 8890mm Near Reading: 278mm | 361mm | Far Reading: 381 - 8890mm Near Reading: 278mm |
| Aimer | 655nm Laser | |||
| Illumination | Warm White LED's | Hyper Red 660nm LED | Warm White LED's | Hyper Red 660nm LED |
| Interfaces | ||||
| Bluetooth | Version 5.3 (SPP profile, HID Profile, Apple iAP2/MFi) | |||
| Direct Electronic | 8-Pin eConnex Connection, USB Cup Cable | |||
| WiFi | Built-in Wi-Fi 6 to allow easy over-the-air (OTA) device management | |||
| Part Number | Model Number | Description | RRP Inc GST |
T % |
|---|---|---|---|---|
| [A] Zebra RFD9030 RFID Circular Reader Sled | ||||
| RFD9031-G30G700-WR | ZEBRA RFID SLED RFD90 PREM 900MHZ/CIR 2D-SR/WIFI | $2,761.00 | C3 | |
| RFD9031-G60G700-WR | ZEBRA RFID SLED RFD90 PREM 900MHZ/CIR 2D-ER/WIFI | $3,245.00 | C3 | |
| [B] Zebra RFD9090 RFID Linear Reader Sled | ||||
| RFD9091-G30G700-WR | ZEBRA RFID SLED RFD90 PREM 900MHZ/POL 2D-SR/WIFI | $3,113.00 | C3 | |
| RFD9091-G60G700-WR | ZEBRA RFID SLED RFD90 PREM 900MHZ/POL 2D-ER/WIFI | $3,597.00 | C3 | |
| [C] Charging Dock - Single Bay | ||||
| Single Bay - Charge only | ||||
| CRD1S0T-RFD49-UNIV-CHG-1R | ZEBRA DOCK DESK CHARGE 1-BAY RFD40/UNIV | $242.00 | C2 | |
| CR90-1S0T-TC2-G-01 | ZEBRA DOCK CHARGE 1-BAY RFD90/TC21/TC26 | $242.00 | C2 | |
| Single Bay - Charge and USB Communications | ||||
| CRD1S0T-RFD49-UNIV-COM-1R | ZEBRA DOCK DESK CHARGE/ETH 1-BAY RFD40/UNIV | $434.50 | C2 | |
| CR90-1S0T-TC5-M-01 | ZEBRA DOCK COMMS/CHARGE 1-BAY RFD90/TC5X | $440.00 | C2 | |
| Optional USB Cable for Communications | ||||
| 25-124330-01R | ZEBRA CABLE DATA MICRO USB | $16.50 | C2 | |
| Select 1 of the above Cradles and each of the below items for a charge kit | ||||
| PWR-BGA12V50W0WW | PS12RS416 | ZEBRA PSU 12V/4.16A 50W | $74.80 | C2 |
| CBL-DC-388A1-01 | ZEBRA DC LINE CORD FOR SINGLE SLOT CRADLE | $15.40 | C2 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| [D] Charging Dock - Multi-Bay | ||||
| 3-Bay RFD90 with 4-Slot Battery - Charge only | ||||
| CRD3S4T-RFD49-BASE-CHG-1R | ZEBRA MULTIDOCK CHARGE/BASE ONLY 3-BAY RFD40 | $1,089.00 | C2 | |
| CR90-3S4T-TC5-M-01 | ZEBRA DOCK CHARGE 3-BAY 4-BATT RFD90/TC5X | $1,859.00 | C2 | |
| 3-Bay RFD90 with 4-Slot Battery - Charge and Ethernet Communications | ||||
| CRD3S4T-RFD49-UNIV-COM-1R | ZEBRA MULTIDOCK CHARGE/ETH 3-BAY RFD40/RFD90/UNIV | $1,859.00 | C2 | |
| Select 1 of the above Cradles and each of the below items for a charge kit | ||||
| PWR-BGA12V108W0WW | PS12RS9000 | ZEBRA PSU AC 12V/9A 108W | $160.60 | C2 |
| CBL-DC-382A1-01 | ZEBRA CABLE POWER DC FOR MULTIDOCK CRADLES | $39.60 | C2 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| Individual "SharedCradle" Bases and Charge Cups are available on request for custom charging configs. | ||||
| [E] USB Direct Charge "Cup" Cable | ||||
| CBL-RFD49-USB1-01 | ZEBRA SNAP-ON POWER/COMMS USB RFDXX | $209.00 | C2 | |
| [F] Battery Charging | ||||
| SAC-TC8X-4SCHG-01 | ZEBRA MULTIDOCK BATTERY 4-BAY TC8X | $424.60 | C2 | |
| Power accessories required for single 4-bay battery charger | ||||
| PWR-BGA12V50W0WW | PS12RS416 | ZEBRA PSU 12V/4.16A 50W | $74.80 | C2 |
| CBL-DC-388A1-01 | ZEBRA DC LINE CORD FOR SINGLE SLOT CRADLE | $15.40 | C2 | |
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| Power accessories required for using dual 4-bay battery chargers connected with Y cable | ||||
| PWR-BGA12V108W0WW | PS12RS9000 | ZEBRA PSU AC 12V/9A 108W | $160.60 | C2 |
| CBL-DC-523A1-01 | ||||
| 2-5199-020-0 | CA199-2 | IEC Power C13 to AU 3 pin Plug | $8.80 | A |
| [G] Device Adaptors | ||||
| ADP-RFD90-BLNK-1R | ||||
| Direct Connect to device: | ||||
| ADP-RFD90-TC5X-1E | ZEBRA RFD90 SLED BLUETOOTH ADAPTOR FOR TC52AX/57X | $209.00 | C2 | |
| ADP-RFD90-TC7X-1E | ZEBRA RFD90 SLED BLUETOOTH ADAPTOR FOR TC7X | $209.00 | C2 | |
| Bluetooth Connect to device: | ||||
| ADP-RFD90-TC2X-1R | ZEBRA RFD90 SLED BLUETOOTH ADAPTOR FOR TC21/26 | $110.00 | C2 | |
| ADP-RFD90-TC5X-0R | ZEBRA RFD90 SLED BLUETOOTH ADAPTOR FOR TC5X | $110.00 | C2 | |
| ADP-RFD90-TC7X-1R | ZEBRA RFD90 SLED BLUETOOTH ADPT TC7X | $110.00 | C2 | |
| [H] Spare Battery | ||||
| BTRY-RFD49-70MA1-01 | ZEBRA BATTERY STANDARD 7000MAH RFD40/RFD90 | $220.00 | C3 | |
| [I] After Sales Support | ||||
| Z1AE-RFD90X-3C00 | ZEBRA ONECARE ESSENTIAL RFD90X 3YR COMP | $363.00 | V | |
