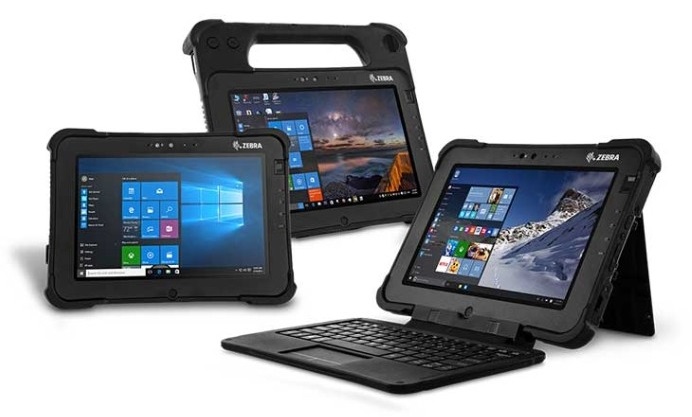

Zebra L10 Windows Tablets
Rugged Tablet PC


Zebra's L10 Series rugged Windows go-anywhere tablets Put the power of mobile data in the hands of workers in your most demanding environments. With a choice of three models meet the needs of workers out in the field in energy, mining, utilities, telecommunications,construction, public safety and government — as well as in warehouses and manufacturing plants. The rugged go-anywhere design is at home indoors, outside, in freezers, sub-zero cold and extreme heat, in forklifts, trucks and other vehicles — and even in bright sunshine. An advanced platform delivers blazing fast performance on all your apps, a battery that provides full shift or around-the-clock power with a single charge, plus the fastest wireless connections — WiFi, Bluetooth, cellular, GPS and NFC. With all the right data capture options increase workforce productivity, you can customise your L10 tablets with enterprise accessories that simplify everyday use. The L10 Series — the ultimate Windows rugged tablets designed for the workplace.

Features

  • Meet the needs of practically any job with the choice of three models
  • A built-to-last rugged design with Magnesium Frame
  • 10.1 in. display with all the right features
  • Customise with mix-and-match accessories
  • Add ports and additional data capture options
  • Choose the right power for the job with unmatched battery power — and battery management
  • Extended Maintenance options
Specifications
ModelXSLATEXPADXBOOK
Physical Characteristics
Length 281mm 281mm 281mm
Width 195mm 256mm 211mm
Depth 22mm 22mm 60mm
Weight 1.3 Kg 1.4 Kg 2.1 Kg
Environmental Characteristics
Operating Temperature -20 to 60°C
Storage Temperature -30 to 70°C
Thermal Shock -30 to 70°C within 5 minutes, non-operating
Operating Humidity 3 to 95% (Non-Condensing)
IP RatingIP65
Shock40G impact, operating
Drop SpecificationMIL-STD-810G: 6'/1.8 m drop to plywood over concrete 4'/1.2m drop to concrete
VibrationMIL-STD-810G: Minimum integrity non-operating, composite wheel operating
Hazardous EnvironmentsC1D2 (Class 1 Division 2) for hazardous locations(Requires a Hazardous Locations certified model)
AltitudeOperating: 50,000 ft./15,240 m; MIL-STD-810G
System Specifications
Operating System Windows 10, 64bit
Processor Options Intel Gen-8 i7 vPro 8650U
Intel Gen-8 i5 vPro 8350U or 8250U
Intel Pentium N4200
System Memory
(Factory Fitted)
16 GB (Core i5 vPro 8350U & Core i7 vPro 8650U)
8 GB (Pentium N4200 & Core i5 8250U)
4 GB (Pentium N4200)
Graphics Intel UHD Graphics 620(Core i5 & i7 CPUs)
Intel UHD Graphics 505(N4200 CPU)
Storage Options 128/256/512/1024 GB PCle SSD (Core i5 & i7 CPUs)
64/128/256/512 GB PCle SSD (N4200 CPU)
Audio Intel HD Audio, Realtek® HD Codec, RealTek noise cancellation, Multi-directional array microphone- 2 microphones (2 front facing array mic)
Speakers1 rear facing speaker1 front facing speaker1 rear facing speaker
Display Specifications
Size 10.1"
Resolution 1920 x 1200
Electrical Specifications
Battery Lithium Ion, 36W/hr Standard, or 98W/hr Extended, Hot Swapable
Operating Time Upto 10 Hours Standard Battery, Upto 27 Hours Extended Battery
Regharge Time 2.75 Hours - Standard Battery, 3.25 Hours - Extended Battery (With Tablet Off)
External Power 12-20V Input. Supplied 19V/DC Universal AC Adaptor
Wireless Specifications
Standard WiFi: IEEE 802.11 a/b/g/n/ac/d/e/h/i/r/k/v/w
Bluetooth: Bluetooth 4.2BLE
Optional One expansion slot with choice of:
Sierra Wireless EM7565, 4G LTE with GNSS (GPS + GLONASS + Galileo + Beidou)
Sierra Wireless EM7511. It is LTE-Advanced with GNSS receiver (GPS + GLONASS, BeiDou, and Galileo)
Discrete GNSS, Navisys Technology (u-blox) GPS + GLONASS with SBAS (WAAS, EGNOS and MSAS)
User Interface
Keyboard Optional Add-on Compact QWERTY, Backlit, IP65, 1m Drop to Concrete
LED's System status, battery status, camera active, SSD activity
Additional Interface Options
Standard Docking connector, 2x USB 3.0 ports, 1x USB Type-C port, 3.5 mm audio output, RJ-45 ethernet port, Dual Nano SIM (4FF), Micro-SDXC, Integrated Fingerprint Reader, Trusted Platform Module (TPM) 2.0
Options NFC, Optional 1D/2D barcode reader (XPAD only),
True RS232 serial or HDMI-In or CAC/Smart Card reader or Optional UHF RFID reader (AEI)
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Zebra L10 Series Windows Tablets
Contact UMD for pricing and configuration options: UMD Sales
