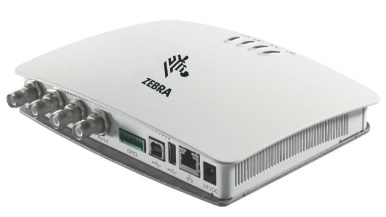

Zebra - FX7500
Integrated UHF RFID Reader/Writer


The Zebra FX7500 RFID Reader has been designed from the ground up with a radio for faster more accurate read rates and more consistent performance, in challenging environments. This has then been paired with a flexible Linux-based network architecture that integrates the tools and open-standard interfaces needed for fast, easy deployment in your RFID deployment and back-end applications. The result is a fixed RFID reader that sets a new performance standard – delivering peak performance at all times with excellent reader sensitivity and better interference rejection, at a lower cost per read point.

The FX7500 comes in a sleek, attractive form factor with a low profile and compact footprint, at home in nearly any business environment. But it also looks good on the balance sheet, with an impressive array of integrated features and functionality that pack value for your business class applications. An integrated optically isolated General Purpose Input/Output (GPIO) interface means there’s no need to purchase, install and manage additional hardware. The ability to host productivity-enhancing, third-party software tools, makes it easy to support your business operations. Available two or four port option adds deployment flexibility so you can purchase only the readers you need, no more, no less. In short, building on the FX7500 lets you protect your RFID investment and achieve a lower total cost of ownership.

Features

  • High performance radio technology
  • Integrated Power Over Ethernet (POE)
  • Optically isolated GPIO
  • 2-port and 4-port reader configurations
  • Software-based radio technology
  • 12 Month Return to Base Warranty with Extended Maintenance options.

Specifications

  Physical Characteristics
Lenght 196 mm
Width 150 mm
Depth 43 mm
Weight 860g
Housing Die-cast aluminum, sheet metal and plastic
Mounting Keyhole and standard VESA (75mm x 75mm)
  Environmental Specifications
Operating Temperature -20°C to 55°C
Storage Temperature -40°C to 70°C
Humidity 5 to 95% Non-Condensing
Shock/Vibration MIL- STD-810G
  Power
Power Input POE, POE+ or +24V DC (UL Approved), 12V-48VDC external supply
Power Consumption Upto 20 Watts, with switching outputs not connected and full transmit power
  UHF Reader Characteristics
Frequency Range (Australia) 920-926MHz (4W EIRP)
Antenna Connections FX 7500-2: 2 mono-static ports (Reverse Polarity TNC)
FX 7500-4: 4 mono-static ports (Reverse Polarity TNC)
Power Output 10 dBm to +31.5 dBm (POE+, 12V ~ 48V External DC, Universal 24V DC Power Supply); +10 dBm to +30.0 dBm (POE)
  Interfaces
Communication 10/100 BaseT Ethernet (RJ45) w/ POE support; USB Client (USB Type B), USB Host Port (Type A)
GPIO 2 inputs, 3 outputs, optically isolated (Terminal Block)
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Zebra FX7500 UHF Reader
FX7500-42325A50-WR ZEBRA RFID FX7500 GEN-2 4-PORT POE WW $1,782.00 C3
[B] Power Supply
PWR-BGA24V78W1WW PS24RS325 ZEBRA PSU AC/DC 24V 3.25A 78W -20 TO 50C $117.70 C2
2-5199-020-0 CA199-2 IEC Power C13 to AU 3 pin Plug $8.80 A
[C] Antenna Cables for Times-7 Antennas with SMA connector
2-9003-010-7 CA9003-1 Coax Cable, RG58, SMA - RevP TNC 1m $146.30 U
2-9003-020-4 CA9003-2 Coax Cable, RG58, SMA - RevP TNC 2m $59.40 U
2-9003-030-5 CA9003-3 Coax Cable, RG58, SMA - RevP TNC 3m $150.70 U
2-9003-050-1 CA9003-5 Coax Cable, RG58, SMA - RevP TNC 5m $155.10 U
2-9003-060-0 CA9003-6 Coax Cable, RG58, SMA - RevP TNC 6m $116.60 U
2-9003-080-2 CA9003-8 Coax Cable, RG58, SMA - RevP TNC 8m $127.60 U
2-9003-100-7 CA9003-10 Coax Cable, RG58, SMA - RevP TNC 10m $166.10 U
2-9003-120-7 CA9003-12 Coax Cable, RG58, SMA - RevP TNC 12m $170.50 U
2-9003-150-7 CA9003-15 Coax Cable, RG58, SMA - RevP TNC 15m $178.20 U
2-9003-180-8 CA9003-18 Coax Cable, RG58, SMA - RevP TNC 18m $184.80 U
[D] Support Contract
Z1AS-FX7500-3C03 ZEBRA ONECARE SELECT FX7500 3YR COMP+COMM+DASH $407.00 V
