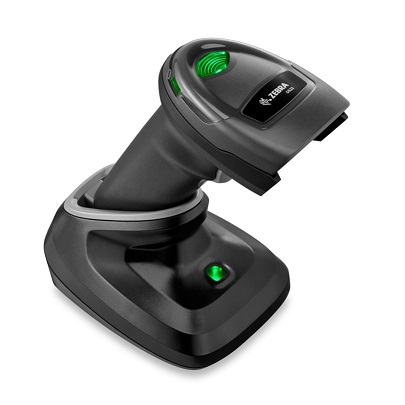

Zebra - DS2278
Hand Held Wireless Bar Code Reader
 |
Zebra’s DS2278 scanner is a next generation high-performance and affordable handheld scanner, designed to help you increase productivity at the retail point of sale, in the stockroom, manage medications and to help control inventory. The DS2278 builds on Zebra's most popular scanner ever, the LS2208, with the same reliability and ergonomics combined with enhanced features such as 2D Barcode Reading and support for mobile phone barcodes. With a best-in-class 2D imager, you can count on unparalleled scanning performance on every barcode, every time, while freeing you from wires with Bluetooth communications.
|
|---|
Specifications
| Mechanical | |
|---|---|
| Dimensions | 90mm L x 66mm W x 175mm H |
| Weight | 214 g |
| Environmental | |
| Operating Temp. | 0 to 50° C |
| Storage Temp. | -40 to 70° C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Shock | Multiple 150cm (5ft) drops onto concrete |
| Environmental Sealing | IP52 |
| Electrical | |
| Battery | 2400mAh LiIon |
| Charge Time | Max. 5 hours with external PSU Max. 17 hours with Standard USB |
| Operating Time | 84 hours from full charge |
| Charge Dock Voltage Input Range | 5.0 VDC ±10% |
| Dock Operating Current | 1100 mA(At max. charging with external PSU/BC1.2 Charge Cable) 500 mA(At max. USB charging) | Optical |
| Pitch | ±65° |
| Skew | ±65° |
| Roll | 0-360° |
| Light Source | 2x 645nm Super-Red LEDs |
| Motion Tolerance | 635 mm per second |
| Ambient Light | Max 107,600 lux |
| Print Contrast Ratio | 25% minimim reflective difference |
| Read Distance | 5mm to 1.0m Depending on barcode |
| Symbologies Decoded | 1D: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) 2D: PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes |
| Communications | |
| Bluetooth | 4.0 with BLE |
| Transmit Distance | Upto 10m Standard Bluetooth, Upto 100m with CR2278 Dock |
| Dock Interfaces Supported | USB, RS232, Keyboard Wedge, IBM RS485 |
| Certifications | |
| Regulatory | EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07, RoHS EN 50581, IEC 62471, EN 55032 (Class B), EN 55024, EN 61000-3-2, EN 61000-3-3, ICES-003 Issue 6, 47 CFR Part 15, Subpart B, Class B, Class B |
| Part Number | Model Number | Description | RRP Inc GST |
T % |
|---|---|---|---|---|
| [A] Zebra DS2278 Kit | ||||
| DS2278-SR7U2100PRW | ZEBRA SCANNER KIT DS2278 BT 2D-SR USB PRES/CRD BLK | $365.20 | C1 | |
| [B] Replacement Parts - Interface Cables | ||||
| CBA-U01-S07ZAR | ||||
| CBA-U25-S09ZAR | ZEBRA CABLE DATA SCANNER USB SHIELDED 2.8M STR | $44.00 | C2 | |
| CBA-U46-S07ZAR | ZEBRA CABLE DATA SCANNER USB-SHIELDED 2M STR BC1.2 | $51.70 | C2 | |
| CBA-UF1-S07ZAR | ZEBRA CABLE DATA USB -30C BC1.2 STR 2M | $73.70 | C2 | |
| [C] Replacement Parts - Dock | ||||
| CR2278-PC10004WW | ZEBRA CRADLE CHARGE/BLUETOOTH DS2278 BLACK | $253.00 | C2 | |
