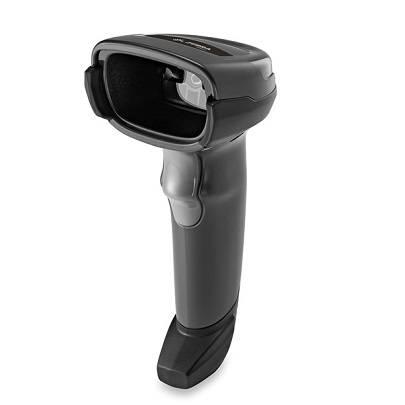

Zebra - DS2208
Hand Held Bar Code Reader


Zebra’s DS2208 scanner is a next generation high-performance and affordable handheld scanner, designed to help you increase productivity at the retail point of sale, in the stockroom, manage medications and to help control inventory.

The DS2208 builds on Zebra's most popular scanner ever, the LS2208, with the same reliability and ergonomics combined with enhanced features such as 2D Barcode Reading and support for mobile phone barcodes. With a best-in-class 2D imager, you can count on unparalleled scanning performance on every barcode, every time.

  • Hand held linear imager barcode reader
  • Ergonomic lightweight and durable design
  • Optional Hands free stand
  • 1D and 2D imager
  • Variety of interface options
  • 123Scan Program for configuration
  • Guaranteed full shift battery power, 14 hours
  • 5 Year Return to Base Warranty

Specifications

Mechanical
Dimensions 99mm L x 66mm W x 165mm H
Weight 162 g
Environmental
Operating Temp. 0 to 50° C
Storage Temp. -40 to 70° C
Relative Humidity 5% to 95% (non-condensing)
Shock Multiple 150cm (5ft) drops onto concrete
Electrical
Voltage Range 5.0 VDC ±10%
Operating Current (nominal) 250 mA(typical)
150 mA(standby)
Environmental Sealing IP52
Optical
Pitch ±65°
Skew ±65°
Roll 0-360°
Light Source 2x 645nm Super-Red LEDs
Motion Tolerance 635 mm per second
Ambient Light Max 107,600 lux
Print Contrast Ratio 25% minimim reflective difference
Read Distance 5mm to 1.0m Depending on barcode
Symbologies Decoded
1D: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
2D: PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes
Communications
Interfaces Supported USB, RS232, Keyboard Wedge, IBM RS485
Certifications
Regulatory EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07, RoHS EN 50581, IEC 62471, EN 55032 (Class B), EN 55024, EN 61000-3-2, EN 61000-3-3, ICES-003 Issue 6, Class B

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST		 T
%
[A] Zebra DS2208 Kit
Black
DS2208-SR7U2100SGW ZEBRA SCANNER KIT DS2208 2D-SR USB STAND BLK $156.20 C1
White
DS2208-SR6U2100AZW ZEBRA SCANNER KIT DS2208 2D-SR USB WHITE $275.00 C1
DS2208-SR6U2100SGW ZEBRA SCANNER KIT DS2208 2D-SR USB STAND WHI $297.00 C1
[B] DS2208 for Healthcare
DS2208-HCBU2100AZR ZEBRA SCANNER KIT DS2208-HC 2D-SR USB WHI STAND $354.20 C1
[C] Replacement Parts - Interface Cables
CBA-U25-S09ZAR ZEBRA CABLE DATA SCANNER USB SHIELDED 2.8M STR $44.00 C2
CBA-R37-C09ZBR ZEBRA CABLE DATA SCANNER RS232 DB9F COILED 2.8M $129.80 C2
