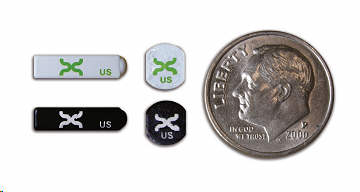

XERAFY XS Series
Miniature UHF RFID Tags


Xerafy’s XS Series of UHF RFID tags are specifically designed to be the smallest and most rugged RFID-on-metal or Embed-in-metal tags in the world, for industrial markets where critical and potentially hazardous situations require reliable identification of assets. Xerafy’s patented RF antenna design provides an unrivaled performance-to-size ratio, reducing tag size and allowing customers to attach XS tags to small metallic assets that have been too challenging to track in the past. The durable XS Series can survive temperatures of up to 150°C and other harsh elements such as high impact and caustic chemicals. Ideal for tracking tools or medical instruments.

Features

  • High performance RFID-on metal tags
  • Passive UHF EPC Class 1 Gen 2
  • IP68 rating
  • High application temperature range
  • On Metal and Embedded into Metal Versions

Specifications

ProductDot XS Dash XS
Physical Characteristics
DimensionsØ 6 mm x 2.5 mm12.3 x 3 x 2.2 mm
Weight0.5g0.5g
Case MaterialEngineering Grade Nylon PolymerEngineering Grade Nylon Polymer
MountingEpoxy, EmbeddedEpoxy, Embedded
Environmental Characteristics
Operating Temperature-30 to 85°C-30 to 85°C
Application Temperature-40 to 150°C-40 to 150°C
IP ClassificationIP68IP68
Compression Strength1176 kPa1176 kPa
Chip Characteristics
IC TypeAlien Higgs 3Alien Higgs 3
Operating Frequency Range902 MHz - 928 MHz902 MHz - 928 MHz
Memory Configuration96-EPC bits; 512-bit user memory96-EPC bits; 512-bit user memory
Read Range On MetalUpto 1.5 mUpto 2.0 m
Read Range Embedded In MetalUpto 1.0 mUpto 1.5 m


Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] XERAFY XS Series UHF RFID Miniature On Metal Tags (White Case)
X4101-US000-U8 XS-Dash Xerafy, XS-Dash, UHF RFID Tag 12.3x3x2.2mm, Ceramic, No Adhesvie, U8 $12.98 A6
X4101-US000-H3 XS-Dash Xerafy, XS-Dash, UHF RFID Tag 12.3x3x2.2mm, Ceramic, No Adhesvie, H3 $13.42 A6
X4102-US000-U8 XS Dot Xerafy, XS Dot, UHF RFID Tag 6(diam)x2.5mm, Ceramic, No Adhesive, U8 $12.98 A6
X4102-US000-H3 XS Dot Xerafy, XS Dot, UHF RFID Tag 6(diam)x2.5mm, Ceramic, No Adhesive, H3 $13.42 A6
[B] XERAFY XS Series UHF RFID Miniature Embed in Metal Tags (Black Case)
9-9891-601-7
9-9891-611-6
