UMD - K150 Series
Solar Power Solution for Small Systems

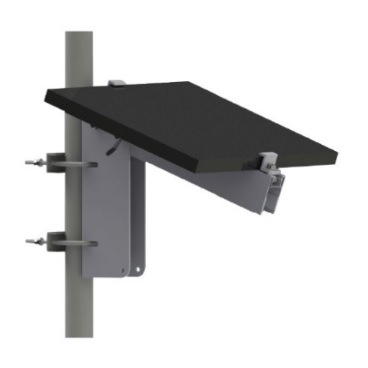

The Unique Micro Design K150 Series of Solar based power systems are kits designed topower range of IoT devices and Sensors.

They suit small systems with options from 5 to 50W power outputs.

Kits comprise of:

  • Range of high efficiency mono-crystalline silicon PV solar cells available from 5 to 50 W modules, framed in corrosion-resistant aluminium frame. PV cell pole mounting kit that supports pole (50mm diam) or wall mounting. They are also compliant to ANZ standards on Wind Actions (AS.NZS 1170.2.2011)
  • Smart Regulator to provide power management: battery charging, load management and monitoring with configurations and readings access via wireless Bluetooth
  • Sealed Lithium Ion Phosphate (LiFePO4) Battery which provides large cycles, high energy density and low self-discharge rate.
  • 50mm diam Galvanised poles, with end caps for final mounting. (other options available)
  • All mounting hardware, including IP66 box for Battery and Regulator

Specifications

Individual Data Sheets available on request



Ordering Information

UMD Solar Power Kit
K150A

K151A













Solar Kit - Small Systems (5 to 50W)

Solar Kit - Custom Housing to support additional electronics



 Peak Power Rating (Solar Panel)

05



 5 Watt (250x158x25mm)

 SY-M5W-8M

10



10 Watt (335x235x25mm)

 SY-M10W-8M

20



20 Watt (430x345x25mm)

 SY-M20W-5M

30



30 Watt (605x345x25mm)

 SY-M40W-5M

40



40 Watt (550x505x25mm)

 SY-M40W-5M

50



50 Watt (650x505x25mm)

 SY-M50W-5M
 Regulator (Enclosed)

00



Not Installed



R1



O/P 12/24 Vdc Auto Select, I/P 75V / 10A max

VN-SS-MPPT-75-10

R2



Output 12V / 6A

SHS-6

R3



O/P 12/24Vdc 15A with MODBUS interface

PS-15-G3

 Battery (Enclosed)

000



Not Installed



L09



Lithium, 151x65x95mm

 9Ah SNL12V9S

L12



Lithium, 151x98x98mm

 12Ah SNL12V12S

L20



Lithium, 180x76x166mm

 20Ah SNL12V20S

S20



Sealed Lead Acid 181 (w) x 167 (h) x 76 (d) mm

12SB20C

 Mounting Options

00



No Mounting Kit



M1



Suites 5-10W panel

 SY-PM-10W

M2



Suites 20-30W panel

 SY-PM-30W

M5



Suites 40-50W panel

 SY-PM-50W

 Pole Option

000



No Poll



P10



Galvanised Steel Pole, 48mm with Cap, 1,000mm



P15



Galvanised Steel Pole, 48mm with Cap, 1,500mm



P18



Galvanised Steel Pole, 48mm with Cap, 1,800mm



P21



Galvanised Steel Pole, 48mm with Cap, 2,100mm



 Options

0

Standard



2

24V System (includes additional battery wired in series)





K150A


















Pricing Available On Application

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Frame Only
K150A1000000M10000 K150A Series Solar Kit, 10W panel and Mounting Frame only $561.00 A
[B] 5W Systems
24V / 5W System
K150A05R1L09M10002 K150A Series Solar Kit, 24V, Pole Mount, 5W with 2x9Ah Battery, No Pole $1,568.60 A
[C] 10W System
12V / 10W System
K150A10R1L09M1P210 K150A Series Solar Kit, Pole Mount, 10W with Battery 9Ah & Pole 2.1M $1,254.00 A
K150A10R2S20M10000 K150A Series Solar Kit, Pole Mount, 10W with Battery 20Ah No Pole $847.00 A
K150A10R1000M1P210 K150A Series Solar Kit, Pole Mount, 10W with No Battery 9Ah & Pole 2.1M $902.00 A
[D] 20 W Systems
24V / 20 W System
K150A20R1L12M30002 K150A Series Solar Kit, 24V, Pole Mount, 10W with 2x12Ah Battery, (24V) config, No Pole $1,790.80 A
