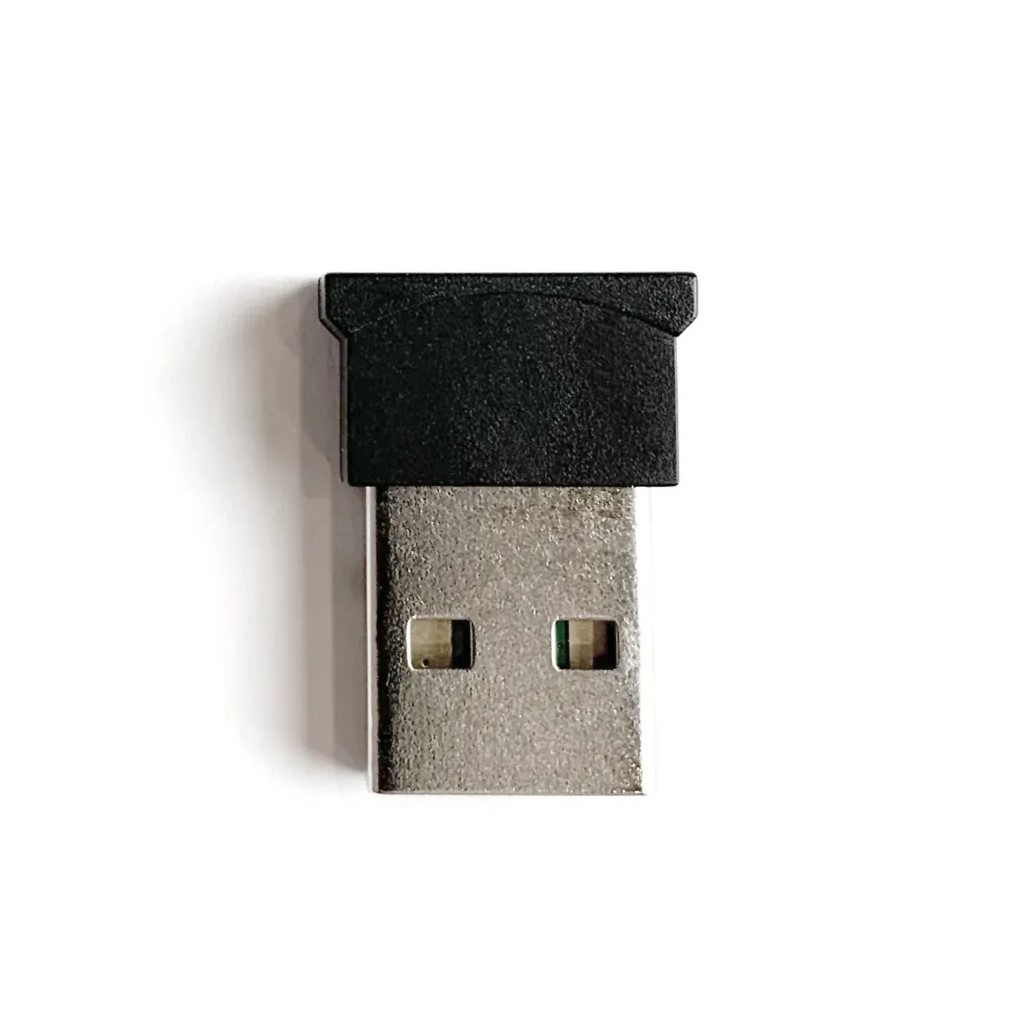

UMD - IOT-BLE-USB-MP
BLE USB Powered Multi-Protocol Beacon


The UMD IoT Series BLE USB Powered Beacon broadcasts your choice of iBeaon, Eddystone TLM, Eddystone URL and/or Eddystone UID format.

Features

  • BLE 4.0 / 5.0
  • USB-powered beacon, makes battery life a non-issue. In addition, because there is no battery to worry about, you can speed up the broadcast interval to 100ms to make it easier for phone/scanner to “see” and react to the broadcast very quickly.
  • Broadcasts your choice of iBeacon, Eddystone TLM, Eddystone URL, and/or Eddystone UID format. Eddystone TLM broadcasts battery strength, temperature, and broadcast count data every tenth broadcast.
  • Free configuration apps for iPhone & Android allow you to adjust settings according to your needs.
  • Transmit distance: 0.2-60 meters. Selectable TX levels: -40, -20, -16, -12, -8, -4, 0, +4dBm
  • Details Quick Start Guide available

Specifications

Physical Characteristics
Dimensions22 (h) x 16 (w) x 6 (h) mm
Weight1.5 grams
Communication Interface
ChipnRF52810
Tx PowerSelectable: -40, -20, -16, -8, -4,0 +3 dBm
Intervals100-10,000 millseconds.
Including optimal nubers such as 1022.5ms
Transmit Distance0.2 to 60 meters
PasswordYes
PowerVia USB A connector
ConfigurationVia IOS or Android App


Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST		 T
%
[A] UMD BLE USB Multi-Protocol Beacon
IOT-BLE-USB-MPB BLE USB Powered Multi-Protocol Beacon 4.0/5.0 $77.00 A6
