UMD Model A200 Series
UHF RFID Portal Mount Frame

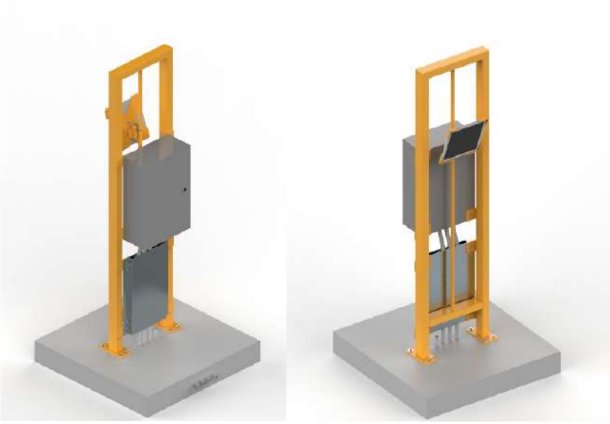

The UMD Model A200 Series: RFID Portal Mounting Frames are steel based mounting frames designed for mounting RFID antennas and RFID control boxes for creating RFID portal assemblies. They are suitable for indoor or outdoor mounting applications.

The central mounting rod is designed to provide maximum flexibility in the mounting of various RFID antennas and peripherals, enabling users to optimise antenna preformation and peripheral placement.

The A200 RFID Portal Mounting Frame has also been designed to accommodate UMD’s range of RFIDControl Boxes (600 x 400 x 200 mm) such as the UMD Model A121 or M733 RFID Control Box.

Features

  • Solid metal construction
  • Powder coated (yellow)
  • Flexible Antenna Mounting Pole
  • Optional Cable Duct
  • Customization available

Specifications

Structure
Type Welded Box Steel - With Protective Overcoat
Size Box Steel Frame: 75mm x 50mm
Centre Mounting Post: 25mm Diameter
Material Hot Dipped Galvanised Steel
Dimensions
Width 500mm (550mm at Feet)
Height 2000mm
Depth 81mm (200mm at Feet)
Optional Cable Duct 300mm x 30mm Internal Space x 500mm High



Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] UMD Model A200 Series UHF RFID Portal Mount Frame
A200-HW01 A200 Portal Frame Only (Safety Yellow) $1,104.40 U1
A200-HW02 A200 Cable Tray Front Cover $132.00 U1
A200-HW03 A200 Cable Tray Rear Plate $69.30 U1
