UHF RFID Antenna Mount Assembly
UMD Model A111 Series

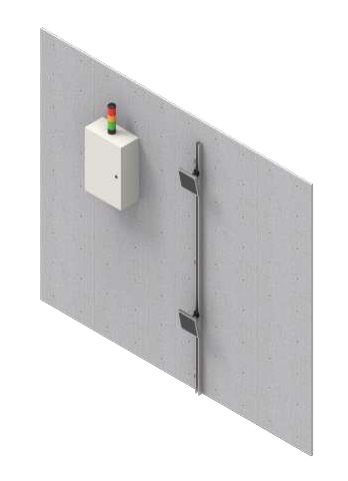

The UMD Model A111 Series of RFID Antenna Mount Assemblies are UHF RFID antenna mounting system designed to be mounted against walls or beams. The Antenna’s are mounted via RAM based mounting hardware, which provides flexible antenna mounting in all three axis including ability to slide alone the channel. This provides maximum flexibility and fine adjustment in positioning antennas which is required to optimize antenna performance

The A111 is part of the UMD A1 Series of RFID industrial portals, assembled from Unistrut mounting system, aluminum panels and control boxes. Its modular design enables the rapid design and deployment of common industrial RFID reading portal system, and can easily be customised for each installation

  • Based on Unistrut P1000 Channel Beam
  • Three Axis Antenna Mount
  • Solid Construction

Specifications

Structure
Type Unistrut P1000 Channel – Heavy Duty
Size 41 x 41 mm
Material Hot Dipped Galvanised
Mounting
Standard (S) RAM-B-201
Long (C) RAM-B-201-C
Short (A) RAM-B-201-A



A111 Configuration Guide

A111B











RFID Bollard Reader Assembly

 Length

18



1800mm Long

21



2100mm Long

24



2400mm Long

 Mounting Bracket Type

0



No Mounting Bracket

U



Full Mounting Bracket (1+1+1+1+1 holes) 138 mm (width) P1047

Z



Z Mounting Bracket (1+1+1 holes)



Antenna Mounting Option

S



RAM Mount – Standard (RAM-201)

A



RAM Mount – Long (RAM-201-A)

C



RAM Mount – Short (RAM-201-C)



Number of RFID Antenna's

D



One RFID Antenna

2



Two RFID Antenna's



RFID Antenna Type

-IA33E

Intermec IA33E, 6db Patch Cicrular, Industrial, 196x196mm, N/RP-Jack

-A5010

Times-7, A5010, 6db Patch Circuular, 250x250mm, SMA Jack



A111B













Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] UMD Model A103 Series RFID Bollard Reader Assembly
A111B
