Epson - TM-U220
POS Impact Printer

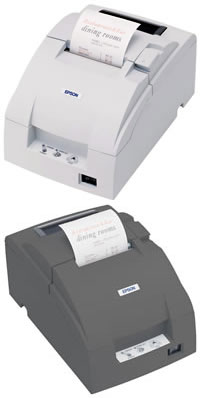

The TM-U220 is an ideal low cost printer for point-of-sale applications. The modular user-friendly design, graphics capability, and 4.6 lines per second print speed offer reliable high performance in a compact, lightweight design. The TM-U220 features modular interface boards that enable users to select from bi-directional parallel, RS-232C, RS-232C-high speed(upto 115200bps), RS-485, USB and Ethernet interfaces simply by ordering a new module. Other features include a paper end detector that automatically alerts the user when the printer is out of paper and manual or automatic cutter.

Features

Low cost
4.6 lines per second
9 pin impact printing
Black/Red printing
Manual or auto paper cutter
RS232, High speed serial, Centronics, RS485, USB or Ethernet Interface
Drop-in paper loading
24 Months Return to Base Warranty

Specifications

Physical Characteristics
Dimensions	TM-U220B, TM-U220D: 160 (w) x 248 (d) x 138.5 (h) mm
Dimensions	TM-U220A: 160 (w) x 286 (d) x 157.5 (h) mm
Weight	TM-U220D: 2.3Kg TM-U220B: 2.5Kg TM-U220A: 2.7Kg Kg
Environmental Characteristics
Operating Temperature	0 - 40°C
Storage Temperature	-20 to 60°C
Mechanism Characteristics
Print method	9 Pin Serial Dot Impact
Print Direction	Bi-Directional
Copy capacity	1 original, 1 Copy
Columns	40/42 or 33/35 17.8/16 cpi or 14.5/13.3 cpi
Print Speed	4.7 LPS (at 40 columns, 16 CPI) 6.0 LPS (at 30 columns, 16 CPI)
Paper Feed	Friction feed
Print Font
Font Column capacity (columns)	7 x 9 / 9 x 9 40/42 or 33/35
Character size (mm)	1.2 (W) x 3.1 (H) / 1.6 (W) x 3.1 (H)
Characters Per Inch	17.8/16 cpi or 14.5/13.3 cpi
Character set	95 Alphanumeric, 37 International, 128 x 12 Graphic
Interface
Standard	RS-232 Serial or Centronics Parallel
Optional	high Speed Serial, RS485, USB(4 options), Ethernet, WiFi
Optional DM-D connector	Available with High Speed Serial and 2 of the USB
Cash Drawer	2 Drawers
Power
Input	24V/DC from PS-180 External Power Supply
Consumption	30W
Paper Specifications
Roll Width	76mm, 69.5mm, 57.5mm
Roll Diameter	83mm Max.
Core Size	10mm
Thickness	0.06 to 0.085 mm
Ink Cartridge Life
Red/Black	0.75 Million Characters (Red) 1.5 Million Characters(Black)
Black	3 Million Characters
Reliability
Head	100 x 10 ⁶ Characters
MCBF	18 x 10⁴ Lines
Cutter	5 x 10⁵ Cuts

**Ordering Information and Pricing**
Part Number	Model Number	Description	RRP	T %
Part Number	Model Number	Description	Inc GST	T %
[A] Epson TM-U220D Series POS printer with Manual Cutter (incl. 240Vac PowerSupply and data cable)
9-5013-130-4	TM-U220D-S	Receipt Printer - Serial	$391.60	10%
9-5013-131-1	TM-U220D-C	Receipt Printer - Centronics	$391.60	10%
9-5013-134-2	TM-U220D-U	Receipt Printer - USB - ECW	$528.00	10%
9-5013-132-8	TM-U220Dg-S	Receipt Printer - Serial - EDG	$391.60	10%
9-5013-133-5	TM-U220Dg-C	Receipt Printer - Centronics - EDG	$391.60	10%
9-5013-135-9	TM-U220Dg-U	Receipt Printer - USB - EDG	$528.00	10%
[B] Epson TM-U220B Series POS printer with Auto Cutter (includes 240Vac PowerSupply and data cable)
9-5013-150-2	TM-U220B-S	Receipt Printer with Cutter - Serial	$506.00	10%
9-5013-151-9	TM-U220B-C	Receipt Printer with Cutter - Centronics	$506.00	10%
9-5013-158-8	TM-U220Bw-E	Receipt Printer with Cutter - Ethernet - ECW	$695.20	10%
9-5013-152-6	TM-U220Bg-S	Receipt Printer with Cutter - Serial - EDG	$506.00	10%
9-5013-153-0	TM-U220Bg-C	Receipt Printer with Cutter - Centronics - EDG	$506.00	10%
9-5013-159-5	TM-U220Bg-E	Receipt Printer with Cutter - Ethernet - EDG	$695.20	10%
[C] Epson TM-U220B Series POS with Multi-Lingual Interface (includes 240Vac PowerSupply and data cable)
9-5013-154-0	TM-U220BM-S	Receipt Printer with Cutter Multii-Linqual - Ser	$611.60	10%
9-5013-155-7	TM-U220BMg-S	Receipt Printer with Cutter Multi-Linqual - Ser EDG	$611.60	10%
[D] Epson TM-U220A Series POS printer with Paper Winder (includes 240Vac PowerSupply and data cable)
9-5013-140-3	TM-U220A-S	Receipt Printer with Winder - Serial	$686.40	10%
9-5013-141-0	TM-U220A-C	Receipt Printer with Winder - Centronics	$686.40	10%
9-5013-142-7	TM-U220Ag-S	Receipt Printer with Winder - Serial - EDG	$686.40	10%
9-5013-143-4	TM-U220Ag-C	Receipt Printer with Winder - Centronics - Black	$686.40	10%
[E] Cables
2-6088-020-0	CA6088-2	Serial D9 Skt to Printer (2m)	$8.80	10%
2-5101-020-4	CA101-2	Serial D25 to Printer	$30.80	10%
2-5102-020-9	CA102-2	Parallel Print Cbl 2M	$4.40	10%
2-6246-010-9	CA6246-1	2x RJ12 Cash Drawer to 1 x Printer	$66.00	10%
2-6247-010-8	CA6247-1	2 x Printers to 1 x RJ12 Cash Drawer	$66.00	10%
[F] Accessories
9-5019-020-2	WH-10-030	Wall Mount Bracket for TM Series	$70.40	10%
9-5019-011-3	PS180	PowerSupply	$140.80	10%
[G] Consumables
9-9076-174-5	PR7676P1/24	Paper Roll 76mm(w) x 76mm(d) 1 ply (pk 24)	$34.10	10%
9-9076-276-8	PR7676P2/24	Paper Roll 76mm(w) x 76mm(d) 2 ply (pk 24)	$63.80	10%
9-9300-380-0	ERC38B	Epson Ribbon Cassette - Black	$13.20	10%
9-9300-382-9	ERC38B/R	Epson Ribbon Cassette - Black/Red	$15.40	10%
1-6008-631-9	PPI24RS2700-MD3	Power Supply Switching 24V 2.7A	$132.00	10%
[H] Documentation
9-5013-036-9	DOC-TMU210-SP	Specifications
9-5013-039-0	DOC-TMU210-UM	User Manual
9-5013-035-2	DOC-TMU210-BR	Brochure
[I] Related Products
AN-140 Cash Drawer Selection Guide
CN-102 Configuration Note - Printer/Cash Drawer Combinations
Epson Interfaces

Document Reference: TMU220 Issue: 2005-10-31 | Edit
