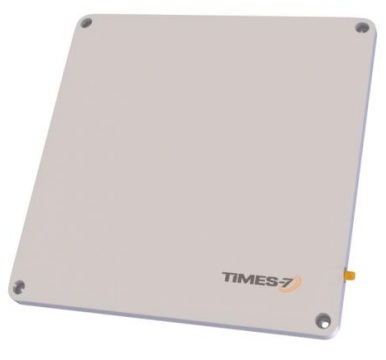

Times7 - A5010
UHF RFID Slimline Antenna
 |
The Times-7 Slimline A5010 is an ultra-low profile design in a compact 250mm square footprint. IP67 rated for permanent outdoor use and built to the Times-7 high standard for quality and robustness, the circularly polarized A5010 creates a new benchmark for multi-purpose UHF RFID antennas. Applications
|
|---|
Specifications
| Physical Characcteristics | ||
|---|---|---|
| Dimensions | 250 mm x 250 mm x 14 mm | |
| Weight | 750g | |
| Mounting | Flush Mount with Integrated Mounting Holes in each corner, rack mount accessory also available | |
| RF Connection | SMA Female side connector | |
| Enclosure | ABS | |
| Environmental | ||
| Operating Temperature | -20 to 55°C | |
| Storage Temperature | -30 to 65°C | |
| Ingress Protection Rating | IP67 | |
| Antenna Characteristics | ||
| Frequency (Select one band) | 865-868 MHz (Europe) 902-928 MHz (US - Australia) | |
| Polarization | RH Circular | |
| Gain | Farfield Gain: 8.3dBi | |
| Farfield 3dB beam width | 68° in both planes | |
| Max Power | 6W | |
| Part Number | Model Number | Description | RRP Inc GST |
T % |
|---|---|---|---|---|
| [A] Times-7 A5010 UHF Slimline Antenna | ||||
| Flush Mount | ||||
| T7-60001 | A5010F-CR-SMA-JB | A5010F RFID Antenna IP67, 250 x 250 x 14 mm, 8dBi RHCP (SMA Female/Jack ) Flush Mount | $264.00 | A1 |
| Stud Mounts (Suits 100mm VESA mounting hardware) | ||||
| T7-60003 | A5010S-CR-SMA-JB | A5010S RFID Antenna IP67, 250 x 250 x 14 mm, 8dBi RHCP (SMA Female/Jack ) Stud Mount | $264.00 | A1 |
| [B] Co-ax Cables | ||||
| SMA to TNC (RG) | ||||
| 2-9003-020-4 | CA9003-2 | Coax Cable, RG58, SMA - RevP TNC 2m | $89.10 | U |
| 2-9003-030-5 | CA9003-3 | Coax Cable, RG58, SMA - RevP TNC 3m | $92.40 | U |
| 2-9003-040-9 | CA9003-4 | Coax Cable, RG58, SMA - RevP TNC 4m | $94.60 | U |
| 2-9003-050-1 | CA9003-5 | Coax Cable, RG58, SMA - RevP TNC 5m | $97.90 | U |
| 2-9003-060-0 | CA9003-6 | Coax Cable, RG58, SMA - RevP TNC 6m | $101.20 | U |
| 2-9003-080-2 | CA9003-8 | Coax Cable, RG58, SMA - RevP TNC 8m | $107.80 | U |
| SMA to SMA | ||||
| 2-9022-010-2 | CA9022-1 | Coax Cable, RG316, SMA Plug/SMA Plug | $53.90 | A |
| 2-9022-030-0 | CA9022-3 | Coax Cable, RG316, SMA Plug/SMA Plug -3m | $80.30 | A |
| 2-9022-050-8 | CA9022-5 | Coax Cable, RG316, SMA Plug/SMA Plug -5m USE 2-9019 | $82.50 | A |
| [C] Accessories | ||||
| T7-72400 | A5010S-MNT-CPB | A5010 Connector Protection Backplate | $154.00 | A1 |
| Mounting Hardware | ||||
