Telpo - TPS530
Ticket Validator

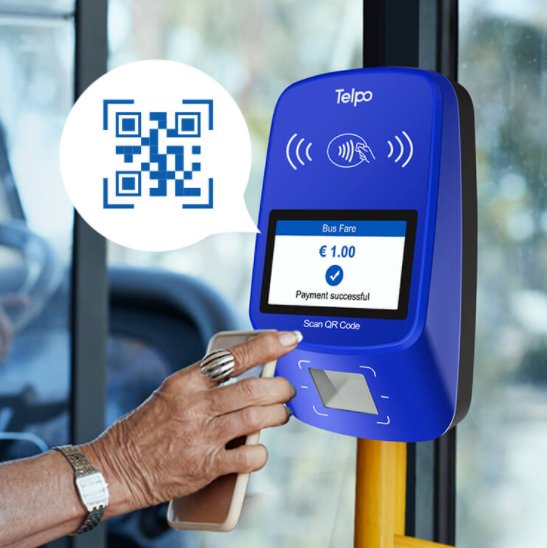

The Telpo TPS530 Ticket Validator has been designed as a robust and flexible fare collection and ticket validation device, suitable for use in a wide variety of environments and purposes.

Whether validating tickets, or processing fares, the TPS530 provides a flexible platform for fixed or mobile applications. Including a 5" Touch Display, QR-Code Reader, NFC reader and multiple interface options, the TPS530 is ready to provide the most complete user experience with minimum fuss. An optional Printer or keypad provide additional flexibility to allow seamless integration into multimodal ticketing support.

Features

  • Android Terminal
  • 5" Touch Display
  • NFC Reader with paypass and paywave support
  • High speed QR-Code Reader
  • Voice support
  • Multiple communication options including GPS
Specifications
Physical Characteristics
Height 285mm
Width 168mm
Depth 95mm
Environmental Characteristics
Operating Temperature -20 to 50°C
Storage Temperature -25 to 60°C
Electrical
Power9-40V/DC
System Configuration
CPU Quad-Core 1.1GHz Processor
Operating System Android 7.0 or above
Display Screen 5", 1280x720 pixels
Memory 1/2GB DDR RAM, 8/16GB eMMC
Barcode Reader Soft Decoding
Hard Decoding (Optional)
Contactless Card Reader ISO14443 Type A/B,
Mifare EMV Contactless L1,
Paywave,
Paypass (Optional)
Calyso(Optional)
HID(Optional)
Standard Ports Circular Connector:1 RS232+ 1 RS485
Circular Connector:1 DC Charge
1 USB-A, 1 Micro USB
2 SIM, 2 SAMs
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] Telpo Wall / Pole Mount Validator
TPS530-0001 TPS530-QN00 Telpo Wall/Pole Mount, Validator Terminal, Includes: 5 Android 7.0, 1GB/8DB Mem, WiFi, BT, 4G, QR Code Scanner, NFC $814.00 C4
TPS530-0002 TPS530-QNCT Telpo Wall/Pole Mount, Validator Terminal, Includes: 5 Android 7.0, 1GB/8DB Mem, WiFi, BT, 4G, QR Code Scanner, NFC, Camera and Temperature Measuring $924.00 C4
