SENOR - Jupiter
Digital Signage

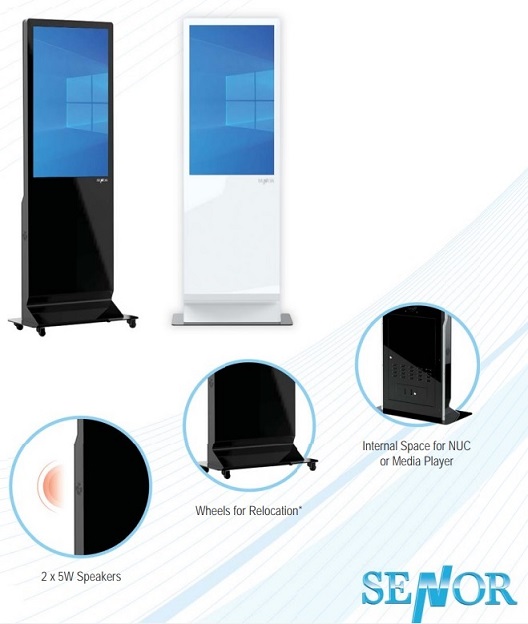

The SENOR Jupiter is available as a 43″ or 55" Full High Definition Commercial Grade LCD Touch Display Unit that can be used in any indoor situation where an interactive kiosk is required. The lockable PC storage compartment within the kiosk, hides cable clutter and keeps the cables safe. This full height floor standing kiosk has a sleek and sophisticated design, allowing it to seamlessly fit into any entryway or atrium.

Features

  • 1920×1080 pixel LCD display
  • Sleek and sophisticated bezel-less design
  • Safe lockable PC storage compartment within the kiosk
  • Minimal cable clutter
  • 43″ display with PCAP touch or 55″ display with 10-point IR touch
  • 2 x 5W Speakers
  • Optional wheels for relocation
  • Real-time information updates through the Internet
  • 12 months warranty
Specifications
 Jupiter 43 Jupiter 55
 Physical Characteristics
Width 760 mm 914 mm
Height 1909 mm 2015 mm
Depth 400 mm 400 mm
Weight 78 Kg 88 Kg
Colours Black / White
 Environmental Characteristics
Operating Temperature 0 to 40°C
Storage Temperature -20 to 60°C
Operating Humidity 20 to 80% (Non-condensing)
Storage Humidity 20 to 90% (Non-condensing)
 Electrical
Power Source 100-240 V, 50/60 Hz
Operating 6A
 Display Panel
Pixel Resolution 1020 x 1920
Brightness 450 cd/m2
Contrast 1100:1
Visual Angle 178°
Display Colours 16.7 M, 8-bit, RGB
 Interface
Touch Panel PCAP touch 10-point IR touch
Connector HDMI
Speakers 2 x 5W
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST		 T
%
[A] Jupiter Digital Signage Unit
Jupiter34W
Jupiter34B
Jupiter55W
Jupiter55B
[B] Accessories
JWHEELKIT
