RFID Tags
ID Cards
|
UMD supplies a range of RFID and Proximity Cards including the items listed below. |
Specifications
 | Indala Security Card | |
|---|---|---|
| Dimensions | 54mm (wide) x 85.4mm (long) x 1.6mm (thick) | |
| Resonance Frequency | 125 kHz | |
| Tag ID Number | 26 bits | |
| User Memory | N/A | |
| Protocol Standard | Proprietary | |
 | Vicinity Card | |
| Dimensions | 54mm (wide) x 85.6mm (long) x 0.76mm (thick) | |
| Resonance Frequency | 13.56 MHz | |
| Tag ID Number | 64 bits | |
| User Memory | 2k bits (In 64 32 bit blocks) | |
| Protocol Standard | ISO 15693 | |
 | Intermec IT32A - Gen 2 ID Card | |
| Dimensions | 54mm (wide) x 85.7mm (long) x 0.8mm (thick) | |
| Resonance Frequency | 902 - 928 MHz | |
| Tag ID Number | N/A | |
| User Memory | 96 bits Read/Write | |
| Protocol Standard | EPC Global Gen 2/ISO 18000-6C | |
 | CSL CS9010 Battery Assisted Passive ID Card | |
| Dimensions | 54mm (wide) x 85mm (long) x 2.0mm (thick) | |
| Resonance Frequency | 860 - 960 MHz | |
| Tag ID Number | N/A | |
| User Memory | 512 bits | |
| Protocol Standard | EPC Global Class 1 Gen 2/ISO 18000-6C | |
 | HID Global's OM Contactless Sticker Tag | |
| Dimensions Full Card Sticker Tag | 85 mm x 54 mm x 0.84 mm 48 mm x 25 mm x 0.84 mm | |
| Resonance Frequency | 13.56 MHz | |
| Tag ID Number | N/A | |
| User Memory Options | 1k, 2k, 4k & 8k | |
| Protocol Standard | Mifare 1k & 4k Mifare DESFire 2k, 4k & 8k | |
| Part Number | Model Number | Description | RRP Inc GST |
T % |
|---|---|---|---|---|
| [A] HF Plastic Credit Card, Blank | ||||
| ISO14443 - Mifare | ||||
| 9-9860-100-5 | RFT6010H-NM1 | RFID CR80 Card (Mifare 1K) | $1.54 | 10% |
| 9-9840-021-9 | RFT4002H-4K | ISO ID Card, Mifare (S70) 4K PVC | $5.50 | 10% |
| ISO14443 - Mobile Phone Card (Mifare 1K) | ||||
| 9-9860-090-9 | RFT6008H-NM1 | RFID Mobile Phone Card (Mifare 1K) | $5.50 | 10% |
| ISO15693 | ||||
| 1-9032-110-7 | RI-TH1-CB1A | HF Plastic Credit Card, Blank (ISO15693) | $4.29 | 10% |
| 1-9032-111-4 | RI-TH1-CB2A | HF Plastic Credit Card, Blank (ISO15693) suitable for hole punching for lanyards | $2.97 | 10% |
| [B] UHF Plastic Cards | ||||
| Convergence (EPC) | ||||

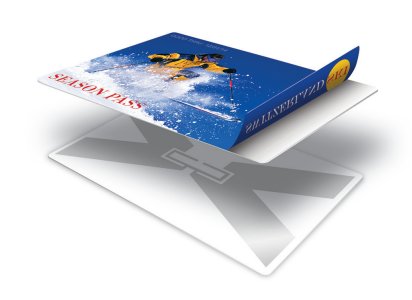

| CS6820H3-2 | ID Card - UHF (Higgs-3) | $2.31 | 10% | |
| CS9010 | CS9010 | Battery Assisted Passive (BAP) ID Access Card CR80 | $9.46 | 10% |
| Intermec IT32A Series (EPC/96bit) | ||||
| IT32A04FST001 | IT32A | RFID Card, Gen2, Blank | $7.70 | 10% |
| IT32A04FST002 | IT32A-M | RFID Card, Gen2, With Mag Stripe, Blank | $7.70 | 10% |
| [C] ID Prox Card - Indala LF | ||||
| 1-9033-010-9 | ||||
| For other cards please contact UMD | ||||
