HID (Omni-ID) - Flex 1000
UHF RFID On-Metal Labels

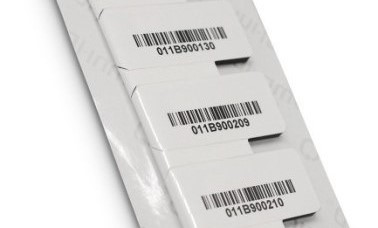

HID Omni-ID Flex 1000 is a mount on metal UHF tag with a low profile and small form factor. Its over laminate surface creates a polished look with increased durability, making the Flex 1000 more rugged than other on-metal labels. This tag performs exceptionally well in portal applications where the read range can be expanded by up to 25%. Additionally, it is an ideal choice for indoor applications that require a low-cost option.

The Flex 1000 is designed for attaching to office equipment, IT assets or RTI’s.

Applications

  • IT, Office and RTI asset tracking
  • Effortless integration, simply apply tags to metallic assets
  • Longer reading range compared to labels of the same size

Specifications

Physical Characteristics
Dimensions45mm x 20mm x 3.8mm
Weight0.82g
AdhesiveFilm adhesive (standard)
Housing MaterialWhite synthetic label with transparent over laminate
Environmental Characteristics
Operating Temperature-40°C to 85°C
Ingress ProtectionIP68
Impact1KG
RFID Characteristics
RF ProtocolEPC Class 1 Gen2v2
Operating Frequency Range860 to 920 MHz
Read Range
Fixed Reader:
Hand Reader:
Up to 11m
Up to 6.8m
Tag Characteristics
ChipU-Code8
MemoryEPC - 128 bits, User - 0 bits, TID - 48 bits


Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST		 T
%
[A] HID-Omni-ID Flex-1000 RFID UHF MOM Label
CP14625-US-U8 Flex-1000 HID-Omni-ID RFID UHF Label, MOM White Synthetic with transparent over laminate, 45x20x3.8mm, U8, each (250/roll) $1.98 A6
