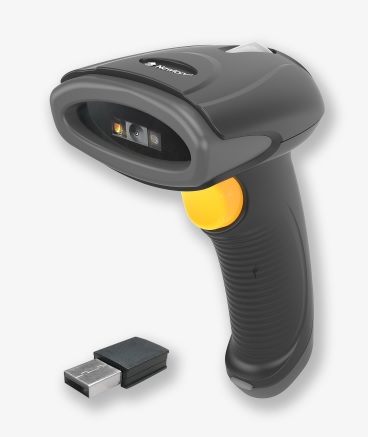

Newland HR2081-BT
Hand Held Wireless Bar Code Reader
 |
The Newland HR2081-BT Barcode Reader has been designed to read barcodes printed and displayed on all of the types of mediums in a typical retail environment, from paper to plastic to LCD's. With its 640 x 480 pixel CMOS image sensor, the HR2081 is able to read all commonly used 1D and 2D barcodes. Adopting the latest Bluetooth 5.0 technology, the HR2081 is able to maintain a reliable wireless connection to transmit data with communication distances up to 50m. Equipped with an outstanding CPU, this wireless handheld scanner can effortlessly capture high density, high-volume and distorted barcodes. Features
|
|---|
Specifications
| Mechanical | |
|---|---|
| Dimensions | 101mm L x 68mm W x 145mm H |
| Weight | 167 g |
| Environmental | |
| Operating Temp. | -20 to 60° C |
| Storage Temp. | -40 to 70° C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Drop | 150cm (5ft) drops |
| Environmental Sealing | IP42 |
| Electrical | |
| Battery | 2200mAh LiIon |
| Charge Time | Max. 5.5 hours |
| Operating Time | 12 hours from full charge |
| Charge Input | 5.0 VDC ±10% (USB Port) | Optical |
| Pitch | ±60° |
| Skew | ±60° |
| Roll | 0-360° |
| Light Source | White LED |
| Aimer | Red LED (625nm) |
| Print Contrast Ratio | 20% minimim reflective difference |
| Read Distance | 30mm to 260mm Depending on barcode |
| Symbologies Decoded | 1D Code-11, Code-128, Code-39, GS1-128(UCC/EAN-128), AIM-128, ISBT-128, Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-8, EAN-13, ISBN/ISSN, Interleaved 2 of 5, Febraban, Matrix 2 of 5, Industrial 25, ITF-6, ITF-14, Standard 25, China Post 25, MSI-Plessey, Plessey, GS1 Databar(RSS) 2D PDF417, Micro PDF 417, QR Code, Data Matrix, Micro QR Code Aztec, Data Matrix |
| Communications | |
| USB | With Supplied cable supports USB Keyboard, CDC(Virtual Com), HID POS, IBM SurePOS |
| Bluetooth | 5.0 with BLE Support |
| Wireless Transmit Distance | Upto 50m |
| Batch Memory | 300Kb (Upto 15000 20 byte scans) |
| Part Number | Model Number | Description | RRP Inc GST |
T % |
|---|---|---|---|---|
| [A] Newland HR2081-BT | ||||
| NLS-HR2081-BT-FS | HR2081 Cordless | 2D WIRELESS DIRECT BLUETOOTH CONNECTION INC USB DONGLE TYPE-B CHARGING CABLE FOLDABLE STAND BLACK | $220.00 | C4 |
