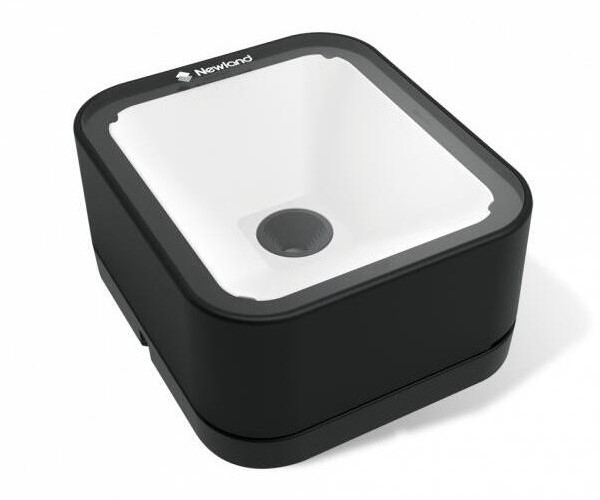

Newland - FR27
Fixed Mount Barcode Scanner


The Newland FR27 is a versatile presentation scanner for self-service applications. This scanner handles various types of 1D and 2D codes even when the printed barcode is curved or creased.

The FR27 can be used to boost customer satisfaction in achieving accurate scans during self-service transactions. Its wide field of view ensures easy scanning even on customer phone screens, while the white illumination and green LED ensures a smooth scanning experience.

The FR27 is configured via its plug and go USB setup to simplify installation and usage. Its small, sleek design allows for versatile installation and seamlessly blends into its environment. Built in superior motion tolerance and FOV enhances user experience and efficiently handles high volumes.

Features

  • Reads barcodes displayed on mobile phones
  • Mounts horizontally or vertically in either landscape or portrait orientation
  • Outstanding motion tolerance for fast scanning
  • Supports QR code, Data Matrix, Aztec and Micro PDF 2D barcodes
  • Supports all major 1D barcodes
  • Standard USB interface
  • 5 year standard warranty

Specifications

Mechanical
Dimensions 66.3mm L x 76.3mm W x 38mm H
Weight 120 g
Environmental
Operating Temperature -20 to 60° C
Storage Temperature -40 to 70° C
Drop 1.5m
Ingress Protection IP42
Electrical
Input Voltage 5VDC±5%
Output Current 100mA - 140mA
Optical
Scan Engine 640x480 CMOS
Light Source White LED
Field of View Horizontal 68°
Field of View Vertical 51°, diagonal: 84.8°
Symbologies Decoded
All major 1D & 2D Symbologies, including QR Code, Data Matrix, Micro QR, Aztec, Data Matrix, PDF417
Communications
Interfaces Supported USB


Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST		 T
%
[A] Newland FR27 Fixed Mount Scanner
NLS-FR27-U FR27-U NEWLAND FR27, FIXED MOUNT SCANNER /WHITE/640*480 with USB Cable $187.00 C4
NLS-FR27-NC FR27-NC NEWLAND FR27, FIXED MOUNT SCANNER /WHITE/640*480 NO Cable $242.00 C4
[B] Accessories
NLS-FR27-CAB-RS232 FR27 NEWLAND FR27, RS232 CABLE $33.00 C4
FR27-WMKIT FR27-WMKIT Wall Mount Kit for FR27. (Includes FR27 USB Reader, 15m USB Repeater Cable, Acrylic Bracket, Reader Mounting Screws. Does not include fixings for the wall) $297.00 C4
