UMD - MP 2100
EA15 Serial Interface Board

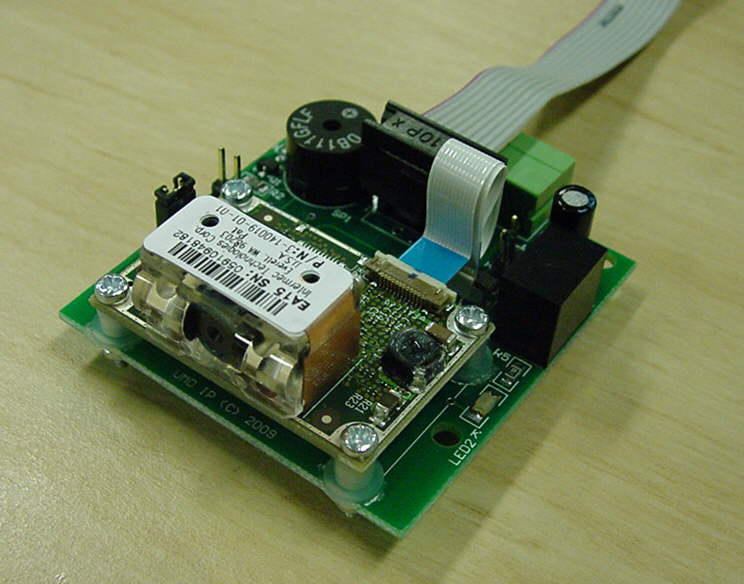

The UMD MP2100 provides mounting and RS232 serial connectivity to the Intermec EA15 Area Imager Scan Engine.

The MP2100 allows the Barcode Engine to be mounted horizontally and provides either a 6 way screw terminal block, dual 10 way header pins or an RJ socket for connection, with power provided either through the connected cable or on a separate screw terminal connection.

The MP2100 is ideally suited for internal mounting and simple integration of 1D/2D barcode scan readers into equipment such as kiosks and instruments.

Features

  • Serial Interface Board for the EA15 1D/2D Scan Engine
  • External Trigger connection
  • Good Read Buzzer/LED options
  • Connection to a DTE Device
  • 12 month Warranty

Specifications

Dimensions
With EA15 50 x 51 x 27 mm
PCB Assembly Only 50 x 51 x 10 mm
Electrical
Voltage Input +7V/DC to +30V/DC
Current 600 mA (approx.)
Inputs
RS-232 Signal RxD, CTS
Outputs
RS-232 Signal TxD, RTS
Connection
Option 1 6 pin Terminal Block
(screw terminal or removable)
Option 2 10 way dual header pin
(2x5 pins)
Option 3 RJ45 Modular Socket
Options
Speaker Driven by EV module
Indicators 1) Power LED (Red)
2) Good Read LED (Green)
External Trigger Via 2 pin header

MP2100 Configuration Selection Guide


MP2100A

  Scan Engine

0

E

H



Sub-Assembly No Scanner

Intermec EA15 Scan Engine (Standard)

Intermec EA15 High Density Scan Engine (HD)

  PCB Power Link Options

0

7

9



No Link Installed

Power On Pin 7 (of attached D9 connector)

Power on pin 9 (of attached D9 connector)

  Connector Option

0

H

S

P

T

R



No Connector

Header Pin - Right Angle/A

Header Pin - Straight

Header Pin - Straight with Separate 2 pin Power Terminal Block

Terminal Block

RJ12 Connector

  Mounting Option (standoffs)

0

6

25

No Mounts (hole only)

5.5mm standoff (facing down)

25mm standoff (facing down)


MP2100A
Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST
T
%
[A] MP-2100 with EA15 Module
MP2100AE0P0 MP2100A EA15 with Straight Header and TB Power, Mounting Holes Only $335.50 U3
MP2100AE7H0 MP2100A EA15 with R/A Header Pins, Mounting Holes Only $335.50 U3
MP2100AE7S0 MP2100A EA15 with Straight Header Pins, Mounting Holes Only $335.50 U3
MP2100AE7T0 MP2100A EA15 with Terminal Block, Mounting Holes Only $335.50 U3
MP2100AE7R0 MP2100A EA15 with RJ Connector, Mounting Holes Only $335.50 U3
Not all configurations listed
[B] Cable Assemblies (Required for use with header pins connector)
2-7008-003-0 CA7008 10Way IDC to 10Way IDC Ribbon Cable - 3 cm $11.00 U1
2-7009-010-7 CA7009-1 MP2069 10Way IDC to DB9S IDC Ribbon Cable - 1m $15.40 U1
2-7009-015-2 CA7009-1.5 MP2069 10Way IDC to DB9S IDC Ribbon Cable - 1.5m $15.40 U1
[C] Support
Engineering support is available on this product including interfacing. Contact UMD for details.
