EV15/EV12 Serial Interface Board
Product information
... engineering ICT solutions. |
UMD - MP 2069 EV15/EV12 Serial Interface Board |
Product Home Product information |
 |

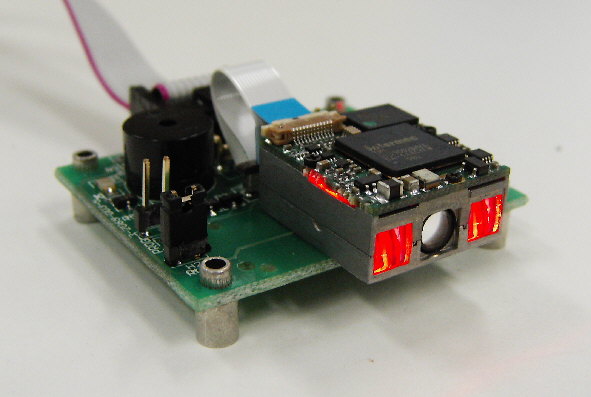

The UMD MP2069 provides mounting and serial connectivity to the Intermec E Series Scan Engines (EV15 & EV12), to allow the integration of barcode reading in kiosk type applications. The MP2069 allows the Barcode Engine to be mounted horizontally and provides either a 6 way screw terminal block, dual 10 way header pins or an RJ socket for connection. Features
|
| Dimensions | |
|---|---|
| With EV15 Module | 50 x 41 x 27 mm |
| With EV12 | 50 x 41 x 27 mm |
| PCB Assembly Only | 50 x 41 x 10 mm |
| Electrical | |
| Voltage Input | +5V/DC |
| Current | 200 mA (approx.) |
| Inputs | |
| RS-232 Signal | RxD, CTS |
| Outputs | |
| RS-232 Signal | TxD, RTS |
| Connection | |
| Option 1 | 6 pin Terminal Block (screw terminal or removable) |
| Option 2 | 10 way dual header pin (2x5 pins) |
| Option 3 | RJ45 Modular Socket |
| Options | |
| Speaker | Driven by EV module |
| Indicators | 1) Power LED (Red) 2) Good Read LED (Green) |
| External Trigger | Via 2 pin header |
| Part Number | Model Number | Description | RRP |
T % |
| Inc GST | ||||
| [A] MP-2069 with EV15 Module | ||||
| 3-2069-611-2 | MP2069-EV15-HD1 |
EV15 Scan Module with Header Pins & 5.5mm Standoffs |
$346.13 | 10% |
| 3-2069-620-4 | MP2069-EV15-HT0 |
EV15 Scan Module with TB Connnector & Mounting Holes only |
$346.13 | 10% |
| 3-2069-621-1 | MP2069-EV15-HT1 |
EV15 Scan Module with TB Connector & 5.5mm Standoff |
$346.13 | 10% |
| 3-2069-630-3 | MP2069-EV15-HR0 |
EV15 Scan Module with RJ Connector & Mounting Holes only |
$346.13 | 10% |
| 3-2069-631-1 | MP2069-EV15-HR1 |
EV15 Scan Module with RJ Connector & 5.5mm Standoff |
$346.13 | 10% |
| [B] MP-2069 with EV12 Module | ||||
| 3-2069-720-1 | MP2069-EV12-HT0 |
EV12 Scan Module with TB Connector & Mounting Holes only |
$299.20 | 10% |
| 3-2069-721-8 | MP2069-EV12-HT1 |
EV12 Scan Module with TB Connector & 5.5mm Stand Off |
$299.20 | 10% |
| 3-2069-730-6 | MP2069-EV12-HT0 |
EV12 Scan Module with RJ Connector & Mounting Holes only |
$299.20 | 10% |
| 3-2069-731-7 | MP2069-EV12-HT1 |
EV12 Scan Module with RJ Connector & 5.5mm Stand Off |
$299.20 | 10% |
| 3-2069-740-9 | MP2069-EV12-HS0 |
EV12 Scan Module with S/T Header Pins & No Stand Off |
$299.20 | 10% |
| 3-2069-741-6 | MP2069-EV12-HS1 |
EV12 Scan Module with S/T Header Pins & 5.5mm Stand Off |
$299.20 | 10% |
| 3-2069-742-3 | MP2069-EV12-HS1 |
EV12 Scan Module with S/T Header Pins & 5.5mm Stand Off / CDS |
$299.20 | 10% |
| [C] Cable Assemblies (Required for use with header pins connector) | ||||
| 2-7008-003-0 | CA7008 |
MP2069 10Way IDC to 10Way IDC Ribbon Cable |
$14.67 | 10% |
| 2-7009-010-7 | CA7009-1 |
MP2069 10Way IDC to DB9S IDC Ribbon Cable - 1m |
$22.00 | 10% |
| 2-7009-015-2 | CA7009-1.5 |
MP2069 10Way IDC to DB9S IDC Ribbon Cable - 1.5m |
$23.47 | 10% |
| [D] Support | ||||
| Engineering support is available on this product including interfacing. Contact UMD for details. | ||||
|
