UMD - Model MP1281 Temperature Monitoring System |
Product Home Product information |
 |

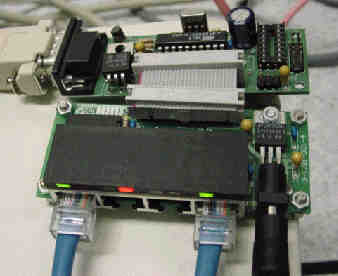

The UMD Model MP1281 is a Temperature Monitoring System designed to monitor Temperature profiles of Computer/Machine Rooms, or small buildings. Four Strings of up to eight ‘daisy chained’ Temperature Sensors give a maximum of 32 Nodes. To ease installation the interconnections are realised by Cat5, RJ45 patch cables. Features
|
| Mechanical | |
|---|---|
| Dimensions (PCB) | 90 x 80 x 25 mm |
| Enclosures | 1) Plastic 2) 19' Rackmount |
| Electrical | |
| Voltage Input | 9 - 12 VDC |
| Current Input | 200 mA (peak) |
| Inputs | |
| Channels | 4 |
| Sensors/Channel | 8 |
| Sensor Types | End of chain type (Only 1 per Channel) |
| Daisy chain type | |
| Outputs | |
| Interface | RS 232 D9 Connector (DCE) (As per UMD TS-102) |
| Protocol | ASCII @ 9600,8,n,1 (Configurable) |
| Visual | Green LED - Sensor/s connected Red LED - channel active |
| Part Number | Model Number | Description | RRP |
T % |
| Inc GST | ||||
| [A] MP1281 | ||||
| Engineering support is available on this product. Contact UMD for details. | ||||
|
