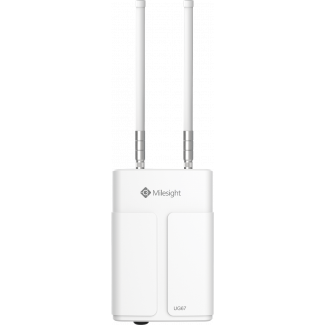

Milesight - UG67
LoRaWAN Outdoor Gateway


The Milesight UG67 LoRaWAN Outdoor Gateway is a robust 8-channel outdoor industrial gateway designed for use in an open or well built up urban or industrial environment to wirelessly connect IoT type devices in crowded spaces. With the simple lightweight LoRaWAN protocol these devices enable the inter-connection of a variety of data collection devices, while maintaining a very low power level requirement.

Adopting SX1302 LoRa chip and high-performance quad-core CPU, the UG65 supports connection with more than 2000nodes. The UG67, with it's IP67 waterproof enclosure, has line of sight up to 15 km and can cover about 2km in an urbanized environment, which is ideally suited to smart agriculture, smart metering and many other outdoor applications.

The UG67 supports not only multiple back-haul backups with Ethernet, Wi-Fi and cellular, but also has integrated mainstream network servers, such as TTI and ChirpStack, as well as built-in network server and Milesight IoT Cloud capability for easy deployment.

Features

  • Quad-core industrial processor with big memory
  • Equipped with the SX1302 chip, handling a higher amount of traffic with lower consumption
  • 8 half/full-duplex channels
  • IP67 waterproof enclosure and industrial design for parts of harsh outdoor environment applications
  • Wall or pole mounting
  • Multi backhaul backup capability with Ethernet, cellular (4G/3G) and Wi-Fi
  • DeviceHub and Milesight IoT Cloud provide easy and centralized management of remote devices
  • Enable security communication with multiple VPNs
  • Compatible with mainstream network servers
  • Detect and analyze the noise level and provide intuitive diagram for deployment
  • Built-in network server and MQTT/HTTP/HTTPSAPI for easily integration
  • Embedded Python SDK for secondary development
  • Fast and user-friendly programming with Node-RED development tool

Specifications

  Physical Characteristics
Height 240 mm
Width 164 mm
Depth 90.1 mm
mounting Wall or Pole Mounting
  Environmental Specifications
Operating Temperature -40°C to 70°C
Reduced Cellular Performance above 60°C
Storage Temperature -40°C to 85°C
Humidity 0 - 95% (non-condensing) at 25°C
Ingress Protection IP67
Ethernet Isolation 1.5 kV RMS
  Power
Power Input PoE-IN (802.3af), 12V DC with M12 Connector
Power Consumption 3.6 Watts (Typical), 4.8 Watts (Max)
  System
CPU Quad-core 1.5 GHz, 64-bit ARM Cortex-A53
RAM 512MB DDR4 RAM
Storage 8GB eMMC
  Interfaces
LoRaWAN 2 × Internal Antennas + 2 × 50 Ω N-Female External Connectors
8 (Half/Full-duplex) Channels
CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 Frequency Bands
-140dBm Sensitivity @292bps Sensitivity
27dBm Max Output Power
V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C Protocols
Ethernet 1 × RJ45 (PoE PD supported) 10/100/1000 Base-T (IEEE 802.3)
WiFi IEEE 802.11 b/g/n, 2.4GHz
AP or Client Mode
WPA/WPA2 authentication, WEP/TKIP/AES encryption
Optional Cellular Internal Antenna, 1x mini SIM-2FF SIM Slot, GPS
Console 1 × USB-C
Direct User LED Indicators: SYS, LoRa, LTE,
Reset Button
  Software
VPN OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
Firewall ACL/DMZ/Port Mapping/MAC Binding/URL Filter
Management Web, CLI, SMS, On-demand dial up, DeviceHub, Milesight IoT Cloud, Yeastar Workplace Platform
Reliability WAN Failover
App Python SDK, Node-RED
Built-in Watchdog, RTC, Timer


Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST		 T
%
[A] Milesight UG67 LoRaWAN Outdoor Gateway
UG67-915M UG67 Milesight LoRaWAN Gateway, IP67, 8Ch Wifi, POE $1,144.00 C3
UG67-L04EU-915M UG67-4G Milesight LoRaWAN Gateway, IP67, 4G POE no Antenna $1,496.00 C3
