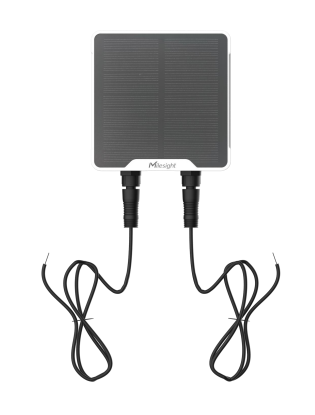

Milesight UC510 Series LoRaWAN Solenoid Valve Controller

	The Milesight UC510 series LoRaWAN Solenoid Valve Controllers are devices designed for remote control of DC latching valve solenoids. The US510 contains 2 solenoid interfaces and 2 pulse counter interfaces and can be easily controlled locally or remotely. In addition to the ultra-low-power LoRaWAN technology for communication, the UC510 series includes an option for a built-in solar panel and high-capacity battery for long-term operation. Designed for outdoor use, the US510's enclosure, with 2 M12 Connectors is IP67-rated to ensure protection from water and dust penetration when used in challenging environments. Features Compatible with standard DC latching solenoids Two pulse water meter interfaces for flow monitoring Long transmission distance up to 15 km with line of sight Waterproof design with IP67 rated case and M12 connectors Inbuilt optional solar panel Equipped with NFC for one touch configuration Compliant with standard LoRaWAN gateways and network servers

The Milesight UC510 series LoRaWAN Solenoid Valve Controllers are devices designed for remote control of DC latching valve solenoids. The US510 contains 2 solenoid interfaces and 2 pulse counter interfaces and can be easily controlled locally or remotely. In addition to the ultra-low-power LoRaWAN technology for communication, the UC510 series includes an option for a built-in solar panel and high-capacity battery for long-term operation. Designed for outdoor use, the US510's enclosure, with 2 M12 Connectors is IP67-rated to ensure protection from water and dust penetration when used in challenging environments.

Features

Compatible with standard DC latching solenoids
Two pulse water meter interfaces for flow monitoring
Long transmission distance up to 15 km with line of sight
Waterproof design with IP67 rated case and M12 connectors
Inbuilt optional solar panel
Equipped with NFC for one touch configuration
Compliant with standard LoRaWAN gateways and network servers

Specifications

Physical Characteristics
Dimensions	Transceiver: 116 mm (h) x 116 mm (w) x 45.5 mm (d)(Excluding prongs)
Installation	Wall or Pole Mount
Environmental Characteristics
Operating Temperature	-20慢 to +60慢
Relative Humidity	10% to 90% (non-condensing)
Ingress Protection	IP67
Power
Power Source Options	UC511: 2x internal 2550mAh rechargeable cells with1.6W built in solar panel UC512: 3x replaceable Li-SOCl₂ cells
Power Output Options	2x selectable 5/9/12V for Solenoid Operation
Power On/Off	Internal Button, NFC or remote switching
Control Interfaces
Solenoid	2x Solenoid Control Ports(
GPIO	2x GPIO (Input, Pulse Counter - Selectable)
Wireless Characteristics
Technology	LoRaWAN
Frequency	CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power	16dBm(868)/20dBm(915)/19dBm(470)
Sensitivity	-137dBm @300bps
Work Mode	UC511: OTAA/ABP Class A, Class B, Class C UC502: OTAA/ABP Class A, Class B
Configuration
Options	Mobile App via NFC, Remote Access, Internal USB-C

**Ordering Information and Pricing**
Part Number	Model Number	Description	RRP Inc GST	T %
[A] Milesight UC510 Series LoRaWAN Solenoid Valve Controller
UC511-DI-915M	UCM511	LoRaWAN Solenoid Valve Controller, 2 x Solenoid, 2 x Pulse Meters, Solar Support IP67	$297.00	C3
UC512-DI-915M	UCM512	LoRaWAN Solenoid Valve Controller, 2 x Solenoid, 2 x Pulse Meters, Solar Support IP67	$319.00	C3
