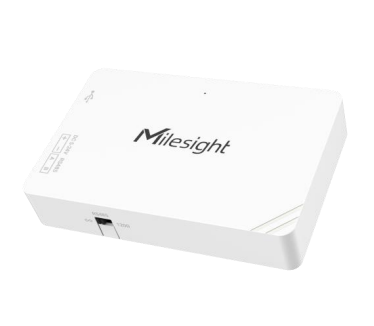

Milesight UC100 IoT LoRaWAN Controller

	The Milesight UC100 controller is designed for remote control and data acquisition from Modbus RS485 devices, using the LoRaWAN network to provide the required long distance communication back to an IoT server. The UC100 Controller can be used to manage up to 16 Modbus RTU devices and supports data transmission between the devices and their server. The UC100 also supports multiple trigger conditions and actions that can be taken even in the event that network communication is not active. The UC100 is suitable for use in any indoor application where remote monitoring and control of Modbus devices is required. Features Supports reading 16 Modbus registers, can connect up to 16 Modbus devices Ultra-wide-distance transmission up to line of sight of 15 km Multiple triggering conditions and actions Embedded watchdog for device working stability Supports LoRa D2D protocol for ultra-low latency and direct control without LoRaWAN gateway Compliant with standard LoRaWAN gateways and network servers

The Milesight UC100 controller is designed for remote control and data acquisition from Modbus RS485 devices, using the LoRaWAN network to provide the required long distance communication back to an IoT server.

The UC100 Controller can be used to manage up to 16 Modbus RTU devices and supports data transmission between the devices and their server. The UC100 also supports multiple trigger conditions and actions that can be taken even in the event that network communication is not active.

The UC100 is suitable for use in any indoor application where remote monitoring and control of Modbus devices is required.

Features

Supports reading 16 Modbus registers, can connect up to 16 Modbus devices
Ultra-wide-distance transmission up to line of sight of 15 km
Multiple triggering conditions and actions
Embedded watchdog for device working stability
Supports LoRa D2D protocol for ultra-low latency and direct control without LoRaWAN gateway
Compliant with standard LoRaWAN gateways and network servers

Specifications

Physical Characteristics
Dimensions	Transceiver: 70 mm (h) x 45 mm (w) x 13 mm (d)
Installation	Wall or Desktop
Environmental Characteristics
Operating Temperature	-20慢 to +60慢
Relative Humidity	0% to 95% (non-condensing)
Ingress Protection	IP30
Power
Power Source Options	5-24V/DC on 3.5mm Terninal Block, 5V/DC USB Type C
Power Consumption	<0.5W
Data Interface
Interface Type	1x RS485, 3.5mm Terminal Block
Protocol	Modbus RTU, support reading 16 register values
Wireless Characteristics
Technology	LoRaWAN
Frequency	CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power	16dBm(868)/20dBm(915)/19dBm(470)
Sensitivity	-137dBm @300bps
Mode	OTAA/ABP Class C
Advanced Feature Support	LoRa D2D Controller, LoRa D2D Agent
Configuration
Options	Remote Access, USB-C

**Ordering Information and Pricing**
Part Number	Model Number	Description	RRP Inc GST	T %
[A] Milesight UC100 LoRaWAN Modbus IoT Controller
UC100-915M	UC100	LoRaWAN IoT Controller, 1xRS485 Modubus RTU	$99.00	C3
